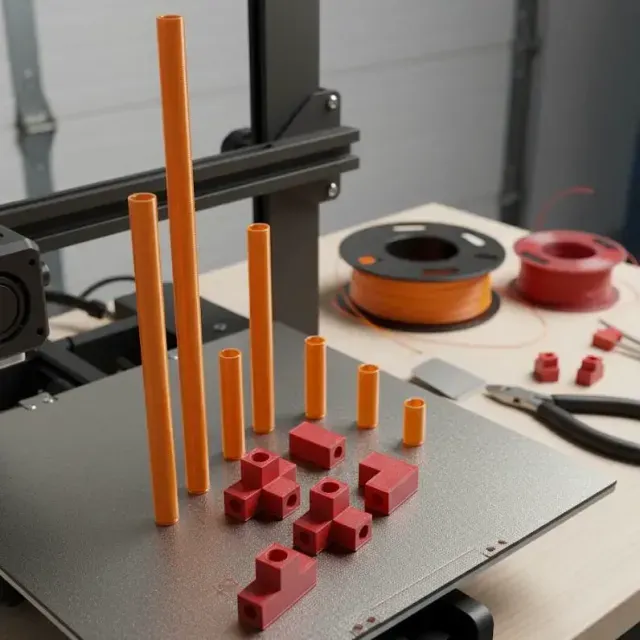

The models differ mainly in how they attach. Some slide over a smooth or ribbed tube and hold it by friction, others rely on a printed thread that mates with a standard pipe thread, and a third group is meant to be glued or clamped in place. Branching parts come in fixed angles or as cross pieces, while pivoting designs allow the connected sections to rotate. Parametric files take a different approach: instead of a fixed shape, you enter the outer and inner diameters, wall thickness and thread type, and the geometry is generated to match.

Before printing, open the author's page and read what the model expects. Check the nominal diameter and whether it refers to the inner or outer measurement, the thread standard if one is used, and how much clearance is built into the mating surfaces. Look at the part count and whether the joint prints as one piece or has to be assembled. Layer orientation matters for threads and for anything that carries load, so see which way the author oriented the model and which material and settings they list. Photos of real prints show how the surfaces and threads came out better than a render does.

If the first results do not match your case, try other wording: connector, coupler, adapter, reducer, splice, elbow, manifold, or the name of the tube type you are joining. Searching by the diameter or by the thread designation often narrows things faster than a generic term. Related topics worth checking are hose adapters for household appliances, fittings for garden irrigation, and pipe-based frame or furniture builds, where the same joint shapes reappear in a different context.
