Dual Space Pi extension shelf for K2 Plus D3P riser

MODEL

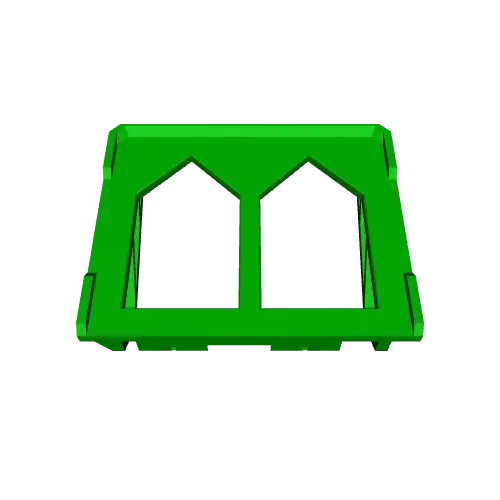

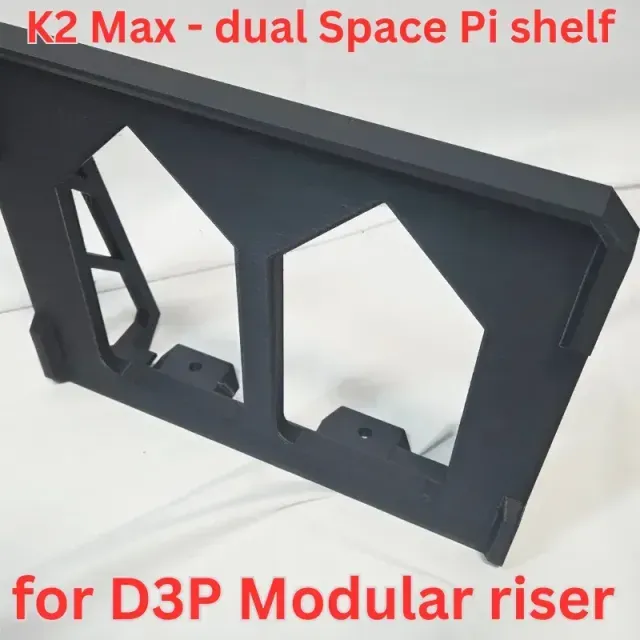

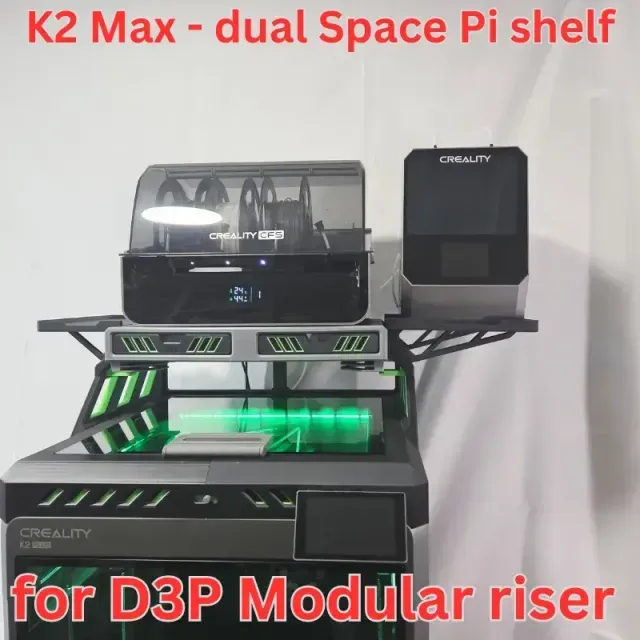

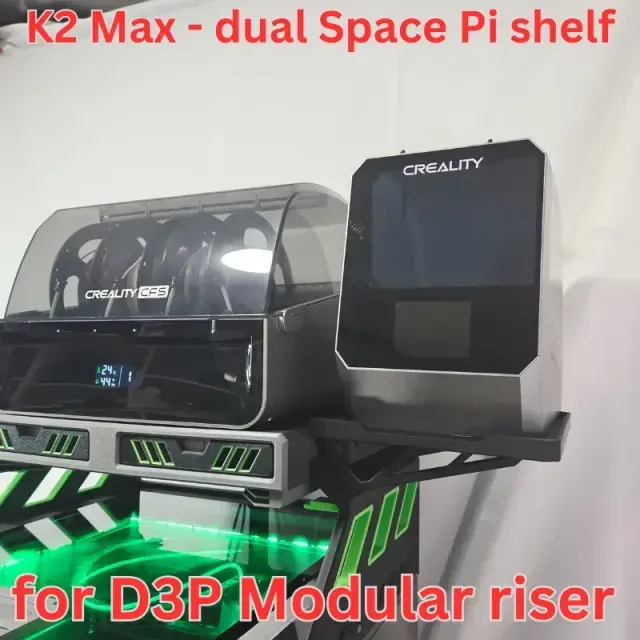

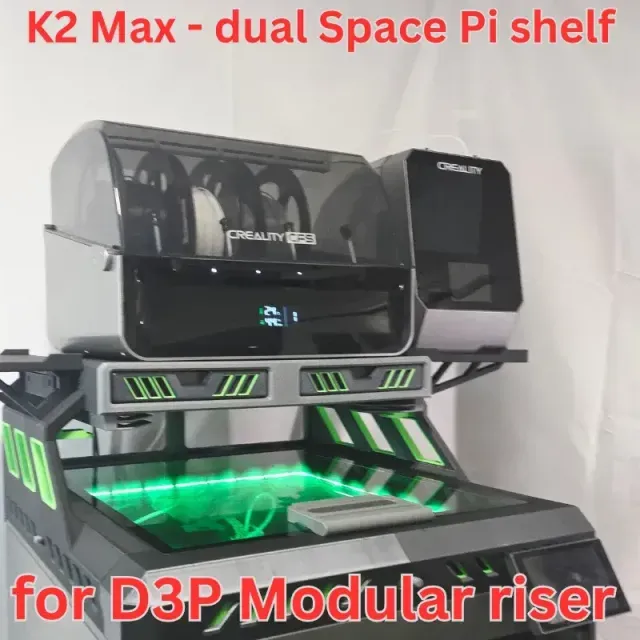

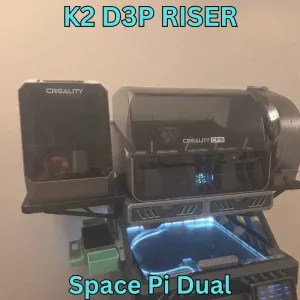

This is a shelf extension for use with the K2 Plus D3P riser. The shelf extension allows adding a dual Space Pi filament dryer beside the CFS unit at the top of the riser.

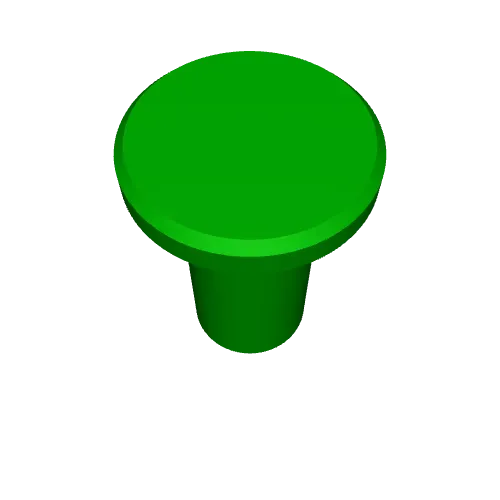

The dual Space Pi extension is for use on the right side of the K2 Plus D3P riser. To use on the left side you will need to mirror it in the slicer. Pins are also provided to secure it into place.

Click here to find out more about the D3P riser system for the K2 Plus :

K2 Plus D3P riser

3D PRINTING

PRINT SETTINGS

IMPORTANT: After verification with Creality it appears that there are some issues that need to be resolved with the mobile printing app. At present it seems these may affect slicing and printing of the model. After verification, it was suggested by the Creality Cloud team to use the desktop slicing and printing software. Thank you for your understanding.

IMPORTANT I have uploaded print setting files for all my models. The print settings have the parts positioned for correct printing.

EACH BUILD PLATE HAS THE TYPE OF SUPPORT REQUIRED INDICATED ON THE BUILD PLATE DESCRIPTION (TREE AUTO, TREE MANUAL OR NO SUPPORT).

I strongly recommend you use my print setting file. If not, I will not be able to assist you if there is an issue when printing. From experience, many of the issues with printing my models are due to users not using my print settings.

3D PRINT SETTINGS

I use the following settings and materials to print this model:

Infill % : 15% (no need for more)

Nozzle diameter: 0.4 mm

Layer height: 0.2 mm standard

Material: PLA is recommended as it's more rigid. PETG or other filaments may cause the part to deform or may not work with the built-in tolerances. PLA-CF and PETG CF and other materials often print too wide and cause parts not to fit.
