Cube Test

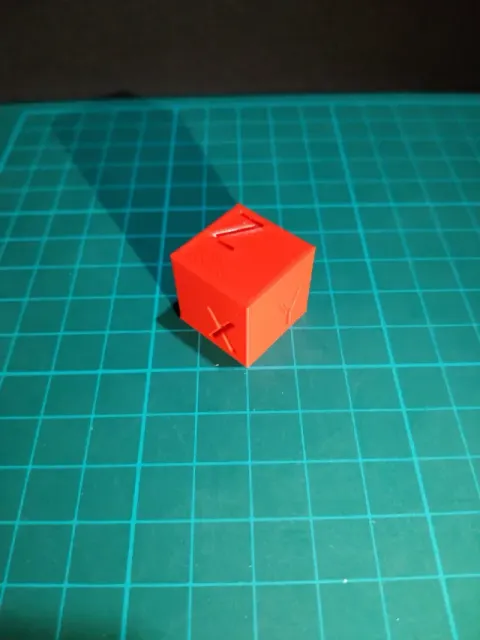

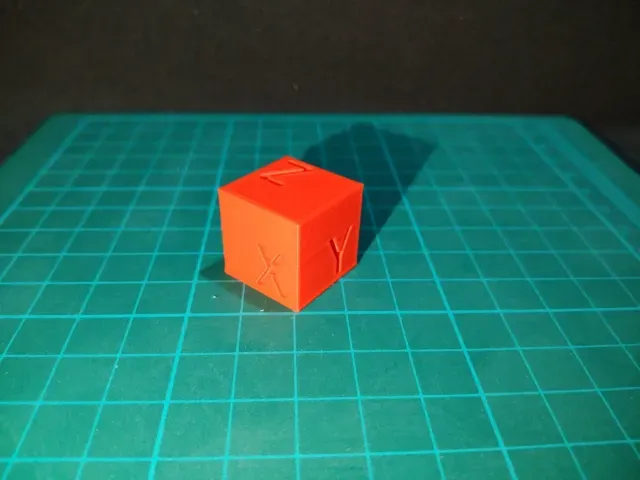

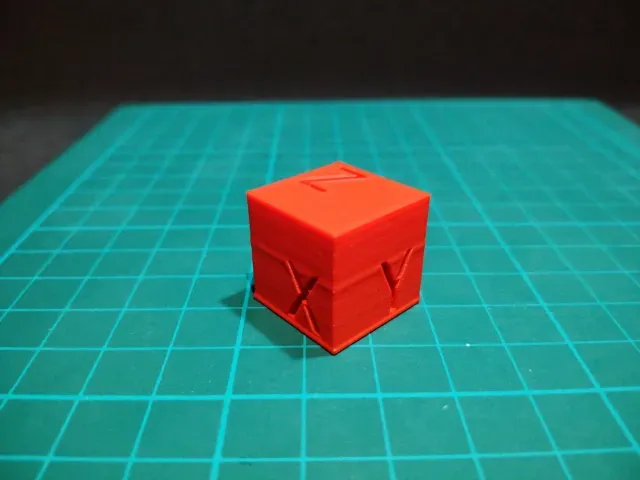

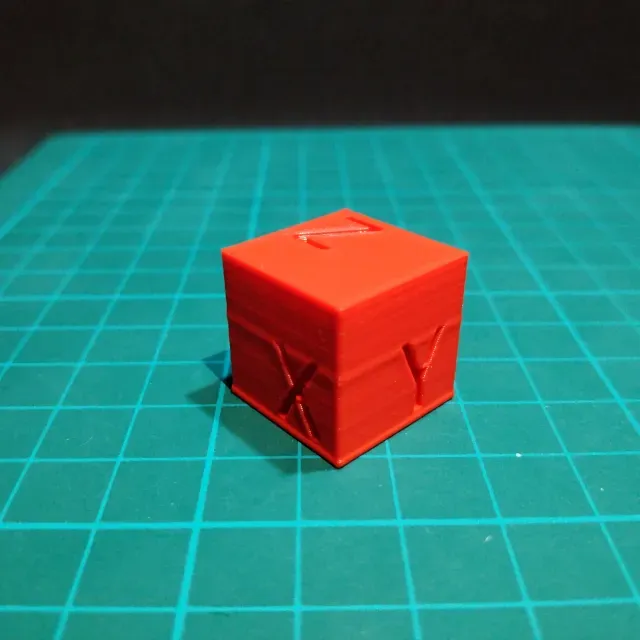

The calibration cube is a basic geometric object, usually a solid 20x20x20mm cube (often called the "20mm cube").

Key Design ElementsDimensions: The main characteristic is that all its faces must measure exactly 20 mm (or the measurement specified in the file, although 20 mm is the standard).

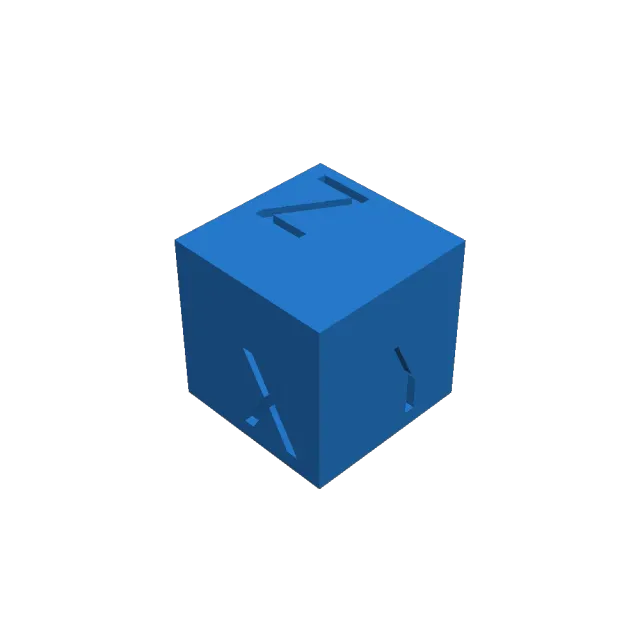

Axle Markings: To facilitate measurement and diagnosis, each of the visible faces usually has a letter engraved or extruded to identify the axle:

X for the lateral movement axis.

And for the front/rear movement axis.

Z for the vertical movement axis.

Additional Features (in advanced versions): Some calibration cubes include small details for testing other settings, such as:

Overhangs: Small areas that protrude to test cooling and printing angles.

Bridging: A small horizontal space printed in the air to test the printer's ability to "bridge" without supports.

Holes or Slots: Small openings to measure dimensional accuracy.

Printer brand: Creality

Printer: Ender 3

Rafts: No

Supports: No

Resolution: 0.2

Infill: 15

Filament material: PLA

Filament brand: Esun

Filament color: Red
