MULTICOLOR CALIBRATION CUBE TEST XYZ

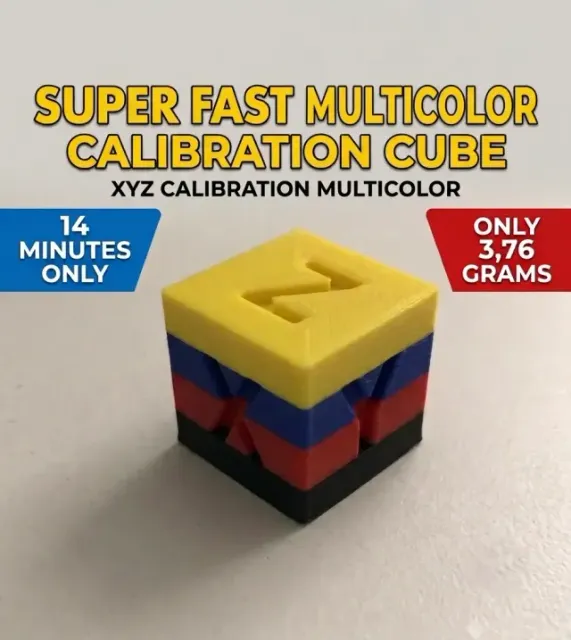

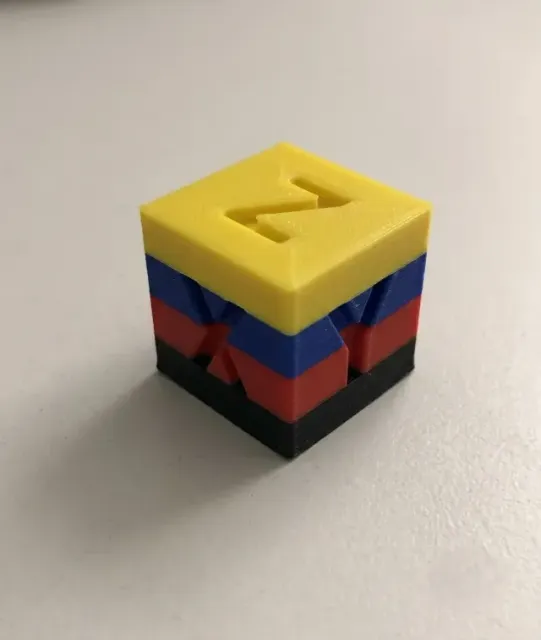

🚀 Ultra-Fast XYZ Calibration Cube (14-Min Print!) Need to test a new filament, fine-tune your printer settings, or check your dimensional accuracy without wasting time or material? This optimized XYZ Calibration Cube is designed for maximum efficiency and speed!

In just 14 minutes and using less than 4 grams of filament, you can get a full, high-precision test print to measure your X, Y, and Z axis accuracy with calipers.

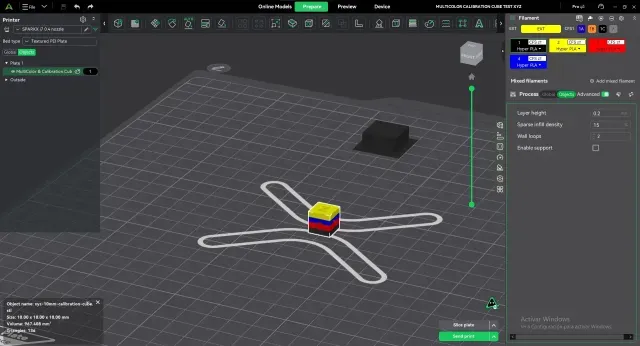

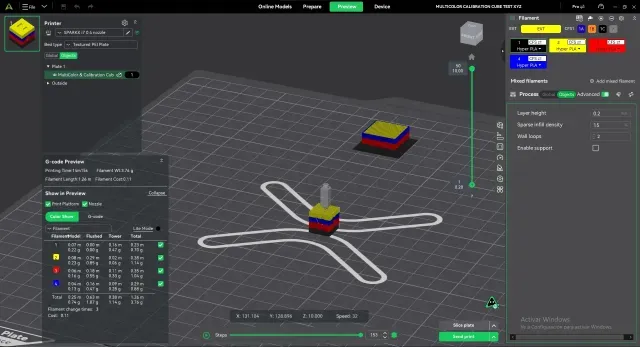

📊 Model Specs & Highlights Print Time: ~14 minutes (depending on printer speed settings) Filament Usage: Only 3.76 grams Dimensions: 20 mm × 20 mm × 20 mm Supports: None needed Multi-Color Friendly: Great for layer-height filament changes or CFS/AMS setups to give your calibration cube a distinct multi-colored look! ⚙️ Recommended Print Settings Layer Height: 0.20 mm Infill: 10% – 15% (Gyroid or Grid) Walls / Perimeters: 2 Top/Bottom Layers: 4 top / 3 bottom Nozzle Size: 0.4 mm 🔍 What to Check After Printing

Dimensional Accuracy: Use digital calipers to measure each side ($20\text{ mm}$ expected). Layer Adhesion & Cooling: Inspect the overhangs inside the X, Y, and Z letters. Ringing / Ghosting: Check the flat walls around the letters for any unwanted vibrations or artifacts.
