NFL Miami Dolphins

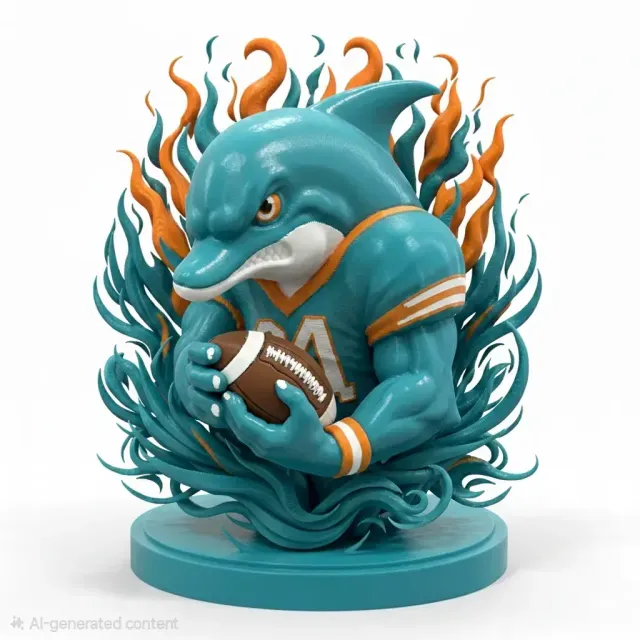

Design Concept: "The Finisher"

​Aesthetic: A "chibi-aggressive" style. It features an anthropomorphic dolphin with exaggerated musculature, wearing a football jersey (specifically nodding to Miami colors: teal and orange).

​Dynamic Elements: The character is "surging" out of a base composed of stylized water swirls that transition into orange flame-like wisps, symbolizing speed and intensity.

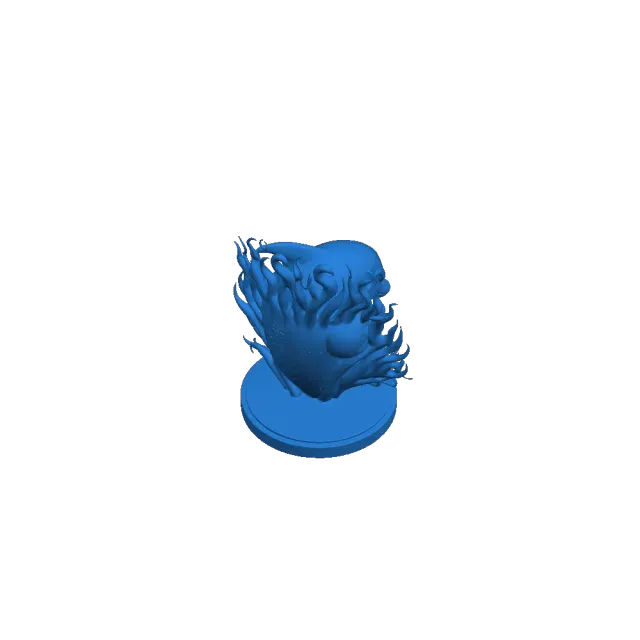

​Functionality: Designed as a single-piece bust on a weighted circular pedestal. The smooth, rounded surfaces are optimized for resin printing to minimize "stair-stepping" on curves.

​Creality Halot R6 Printing Settings

​The Halot R6 uses an integral light source that is quite powerful. For a high-detail figure like this using Standard 405nm UV Resin, use these baseline settings in HALOT BOX or CHITUBOX:

Setting Recommended Value

Layer Height 0.05 mm (Balance) or 0.03 mm (High Detail)

Exposure Time 2.5s – 3.2s (Adjust based on resin brand)

Bottom Exposure 30s – 40s

Bottom Layer Count 4 – 6 layers

Lifting Distance 6 mm

Motor Speed 2 – 3 mm/s (Lower is safer for heavy figures)

Light-off Delay 1.0s – 2.0s (Allows resin to settle)

Pro Tips for this Model:

​Orientation: Tilt the model backward at a 30°–45° angle. This prevents suction on the flat base and ensures the "flame/water" tips print cleanly without pooling.

​Hollowing: Since this is a bulky figure, hollow it (2mm wall thickness) and add drain holes at the bottom of the pedestal to save resin and prevent "cupping" issues.

​Post-Processing: After printing, wash in IPA for 3-5 minutes and cure for 2-4 minutes. Sand the support nubs on the back to keep the front-facing details pristine.
