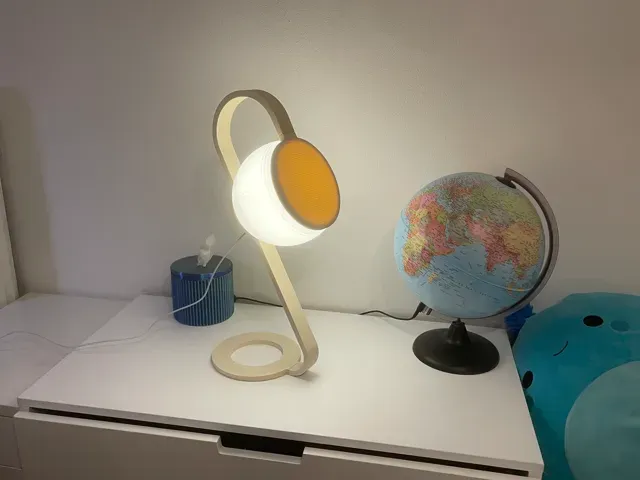

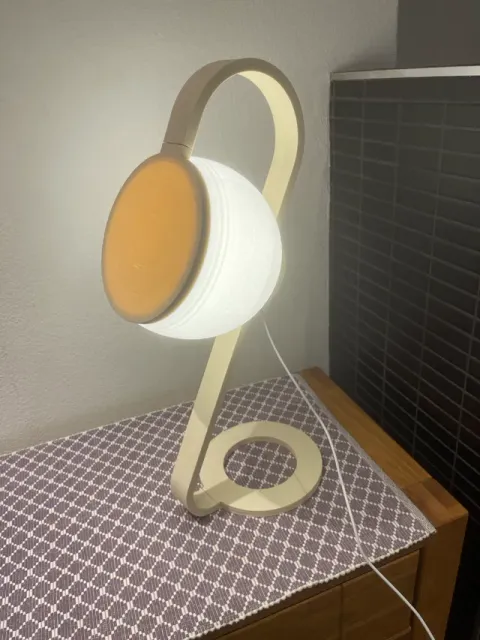

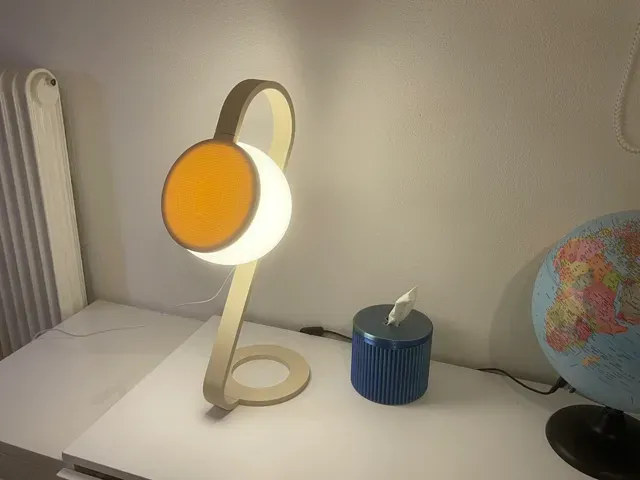

Lumishade

3D Printed Lampshade using LED Lamp Kit MH-001

Enhance your space with this stylish 3D-printed lampshade, designed specifically for the MH-001 LED lamp kit from Maker's Supplies. This lampshade diffuses light beautifully, creating a warm and inviting ambiance while showcasing a sleek, modern aesthetic.

Ideal for desks, nightstands, or ambient lighting, this lampshade is a perfect addition to your home or office.

Boost Me If you like this model, rate, like, and boost.

If you enjoy my designs, help keep the creativity flowing! ☕ Support me at buymeacoffee.com/3dthing

Assembly Instructions

1. Post-Processing

- After printing all parts, carefully remove any supports. - Lightly sand the tongs and their corresponding holes if needed for a snug fit. - Lightly sand the outside lip of  larger threads of the lampshade if the elephant foot is making a tight threads. It will usually work itself in. - Optional: You may use glue for extra stability, but it is not required. Do not glue the arc part or the lampshade to allow for future maintenance.

2. Assembly Steps

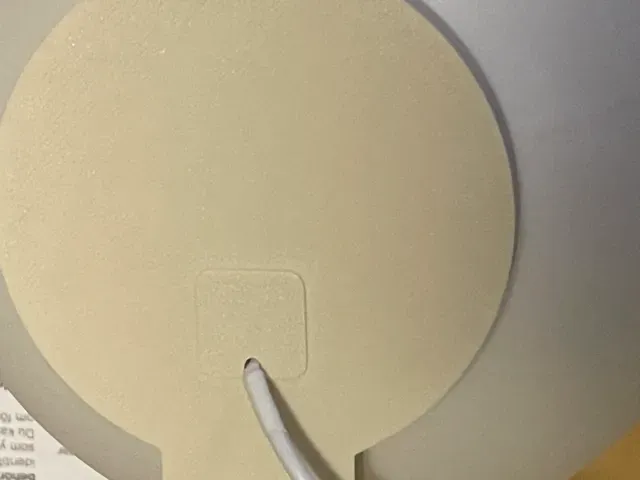

- Attach the Stem to the Base: - Fit the stem securely onto the base. - Install the Lamp Holder: - Fit the lamp holder onto the stem, ensuring the hole in the lamp holder is on the bottom (closest to the stem). - Install the LED Lamp Kit (MH-001): - Thread the wire through the hole in the lamp holder. - Position the electric wire in the bottom middle of the hole. - Ensure the wire cap fits right over the wire, closing the hole as shown in the reference photo. - Attach the Lampshade: - Screw the Large side of the lampshade onto the Lamp Lid first. - Secure the Lampshade to the Lamp Lid: - Screw the lampshade with lamp lid onto the lamp holder. - Align the tongs and fit the arc on both the Holder and the Lid. Your lamp is now assembled and ready to use! Enjoy your 3D-printed creation.

If you run into any issues or have suggestions for improvements, feel free to leave a comment. Stay tuned for future updates.
