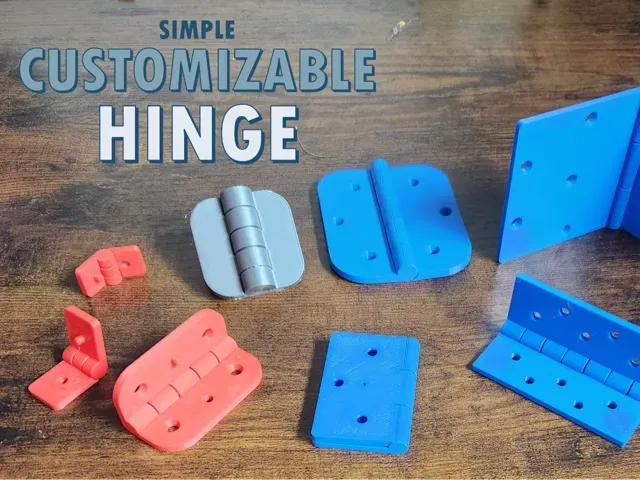

Simple Customizable Hinge (Parametric) V1.1

I wasn't a fan of other Parametric Hinges, so I developed one that met my needs. I tried to keep it SIMPLE so that others can easily create with it. The SCAD design can be accessed through the “Customize” button.

Version 1.1 Updates:

- Beefed up the Locking Pin to make it larger and stronger - Reduced default setting of knuckle gap to 0.2mm for optimal hinge settings Purposes:

- Add a hinge to your project, remix or 3D Design - Print a hinge for your own use

Main Customizable Features:

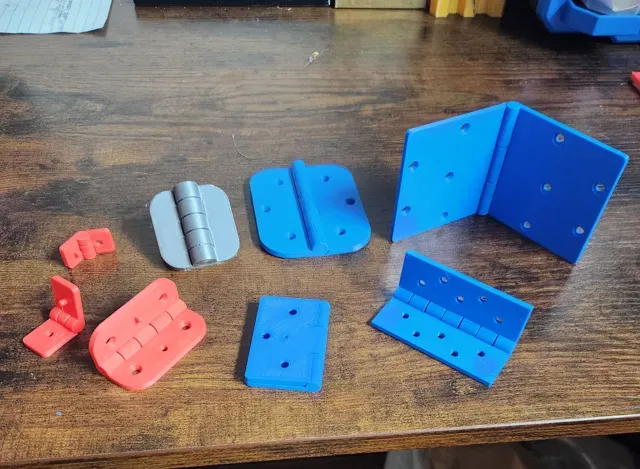

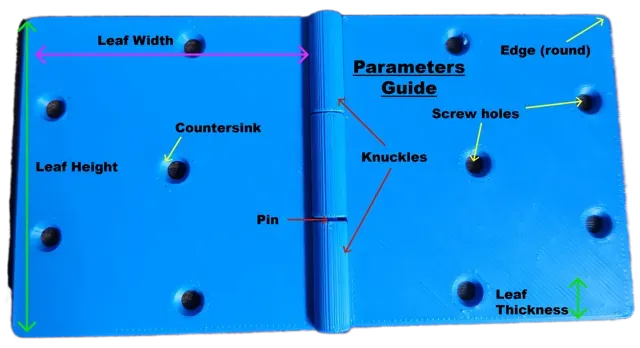

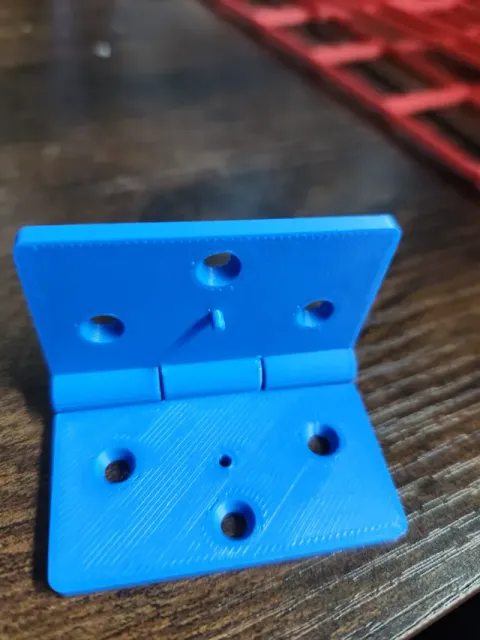

- Leaf Length - Leaf Width - Leaf Thickness - Knuckles (3, 5, 7) - Screw Holes Radius (1-5mm) - Screw Hole Count (0-7) - Countersinks - Rounded Edges (0-20mm) - Locking Pin (on/off) - Print Orientation

Why choose this over other parametric hinges?

- Easier to customize - Locking Pin - Option for no screw holes - Leaf thickness associated to knuckle radius which means that strength scales with size. - Minimized knuckle gap to provide hinge “slippage”

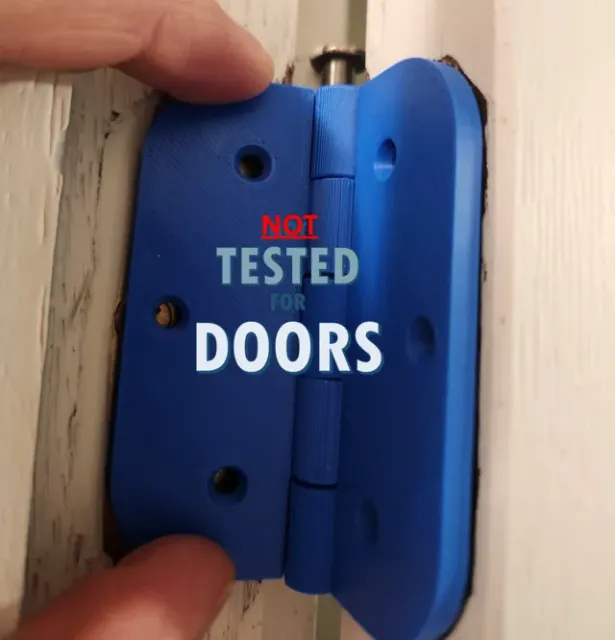

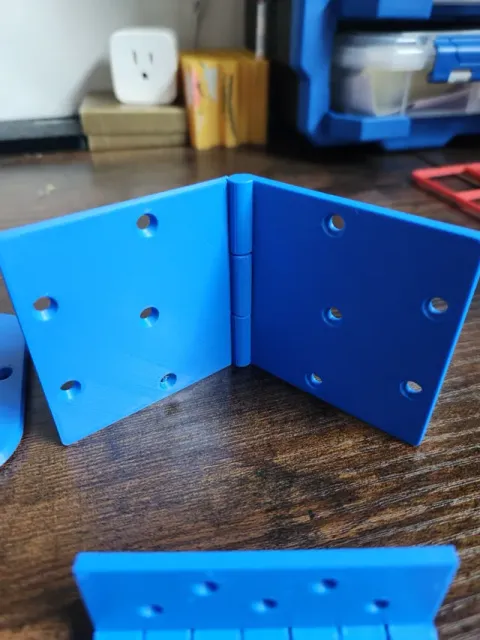

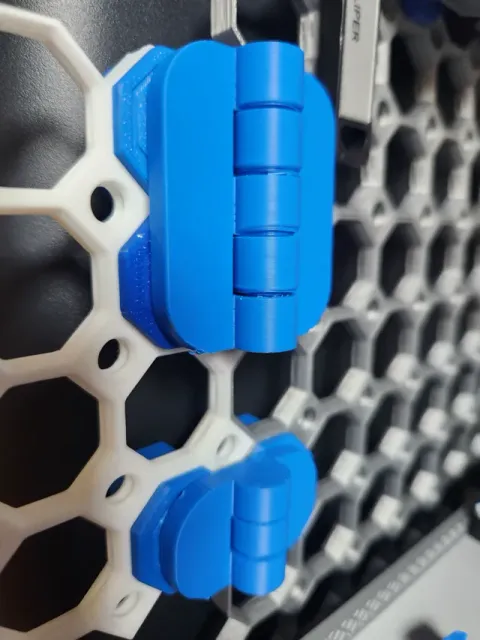

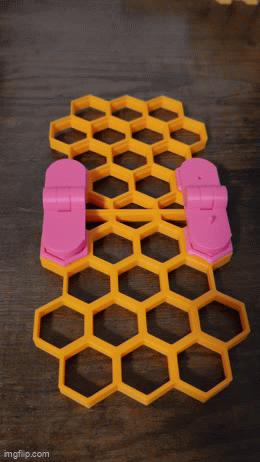

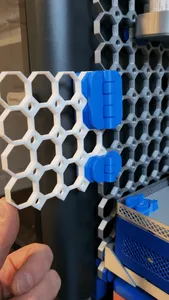

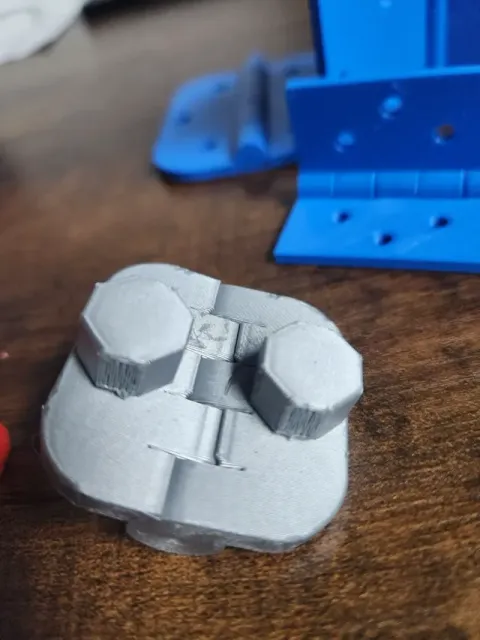

I used this to develop a multiboard hinge . I would love to see other's designs as well and will post my favourites here.

This is my first SCAD design, so I'm open to suggestions for improvement :)
