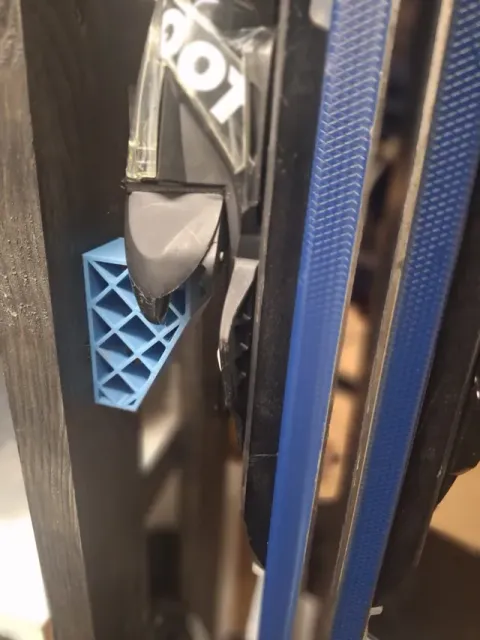

Ski wall holder - rack — Фото 7 из 13
Ski wall holder - rack — Фото 8 из 13
Ski wall holder - rack — Фото 9 из 13
Ski wall holder - rack — Фото 10 из 13
Ski wall holder - rack — Фото 11 из 13
Ski wall holder - rack — Фото 12 из 13
Ski wall holder - rack — Фото 13 из 13
3D-модель · MakerWorld

Ski wall holder - rack

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 32 Лайки
  • 225 Загрузки
  • 174 Напечатали
  • 175 В подборках
  • 1 Бусты
  • 26 Комментарии
  • 0 Просмотры

Автор:thiz3D

Опубликована

Скачать на MakerWorld

Описание

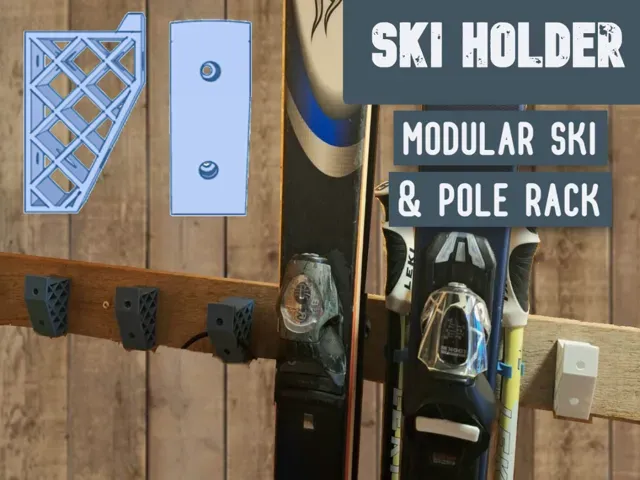

⛷️ Keep your ski gear neat, compact and solidly stored with this modular ski holder system

🧍 Wall-facing setup keeps your skis easily visible and accessible — ideal for quick grabs.

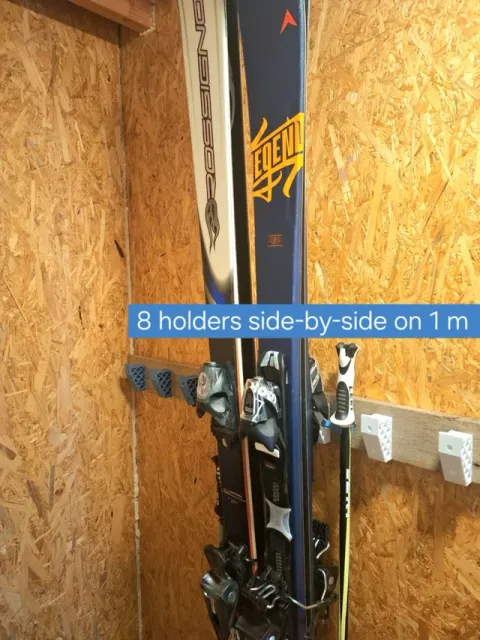

||   Space-efficient layout lets you fit up to 8 pairs per meter (or less if your skis have big large rockers).

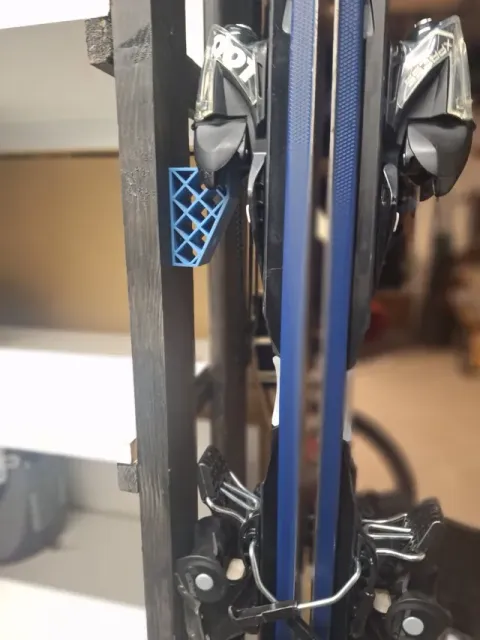

💪 Sturdy truss-design ensures maximum strength with minimal filament.

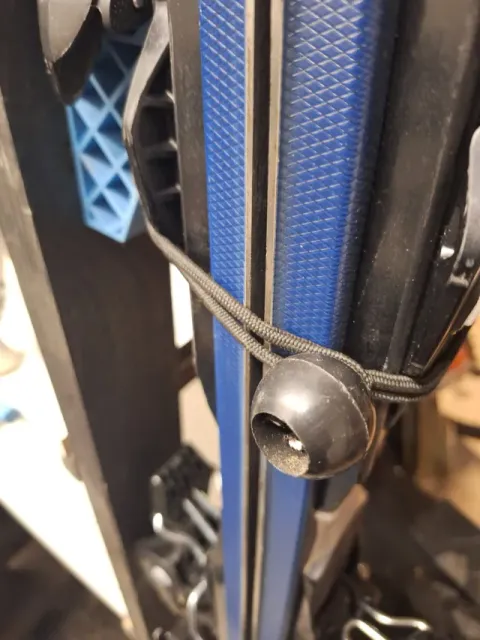

🧵 Use truss pattern to pass-through binders, zip-ties, paracord or a small cable lock to secure your skis .

🔄 Available in M and XL :

• M = standard skis, normal to big rockers

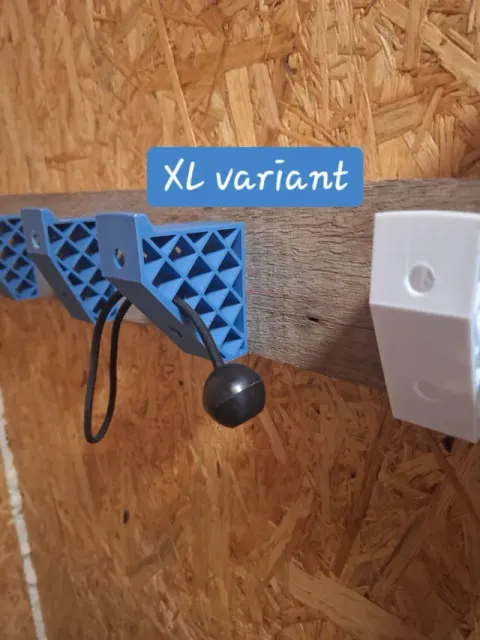

• XL = for skis with huge rockers

🆕 v2 with larger screw-bit opening 🪛 - use this bit extension shaft if needed.

🧱 Optional wall extension available, for another 20mm depth.

🎿 Poles? All sorted!

• The hooked design naturally supports ski poles by their straps.

• Optional pole-holder module secures poles - even without straps.

Tip : use flat-headed screws or add a washer to distribute pressure on your print

🔩 Optional screw washer included in print profiles.

Check out my other ski-related designs here 👀

Ski vise & ski brake holder for maintenance

Руководства и профили печати

Профили печати и шаги

M - Standard holder (regular rockers) - v2 🏗️ Printed on its side — no supports, no waste, and maximum inter-layer strength.

PLA and PETG tested & approved.

🆕 v2 with larger screw-bit opening and optional PLA “washer”. Use the bit extension shaft if needed ( pre-drilling recommended! ).

Medium = standard size, provided you don't have huge rockers

XL holder - extra-large size (huge rocker) - v2 🏗️ Printed on its side — no supports, no waste, and maximum inter-layer strength.

PLA and PETG tested & approved.

🆕 v2 with larger screw-bit opening and optional PLA “washer”. Use the bit extension shaft if needed ( pre-drilling recommended! ).

XL = 30mm extra depth size, fits skis with huge rockers. If this would still be too small (wow, you like them big!), print the wall extension to add depth.

Warning = add a washer between the screw and PLA or PETG to distribute pressure on the printed wall

Wall Extension - PETG Print in place.

Gives you an additional 2cm distance from the wall for (super-) large rockers .

Works in PLA as well if needed.

Optional PLA "washer" to distribute screw pressure Distributes screw pressure evenly.

Fits nicely into holder (v1 & v2).

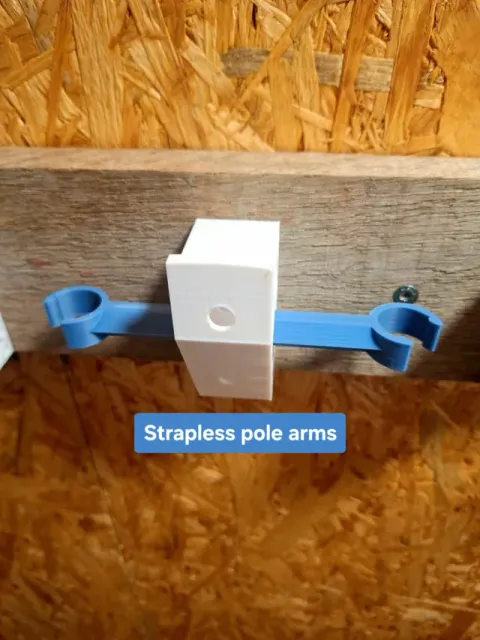

Ski pole holder (optional) for ski poles without straps Print in place

PLA or PETG

M - Standard size - PETG profile PETG specific profile (useful for those printing from their smartphone)
