Afterburner carriage for CR-Touch (mgn9)

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-ND
Только некоммерческое использование с указанием автора и без изменений модели.
Форматы
STL
  • 0 Лайки
  • 1 Загрузки
  • 0 Напечатали
  • 0 В подборках
  • 0 Бусты
  • 0 Комментарии
  • 0 Просмотры

Автор:boodoo0215

Опубликована

Описание

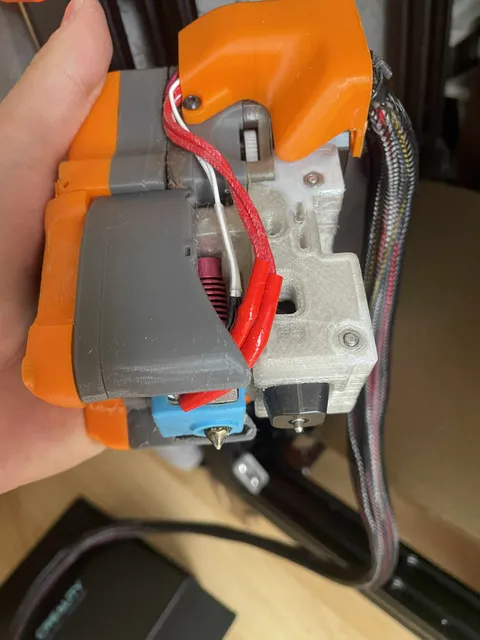

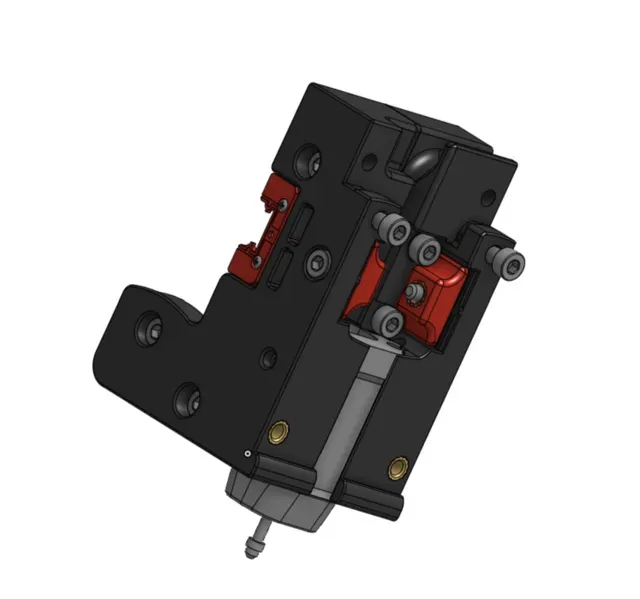

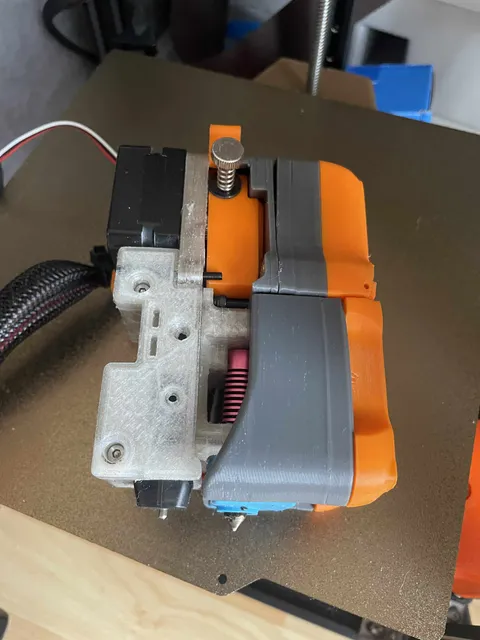

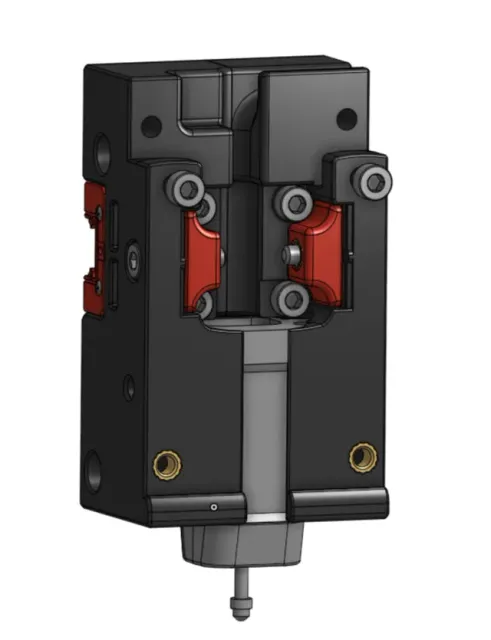

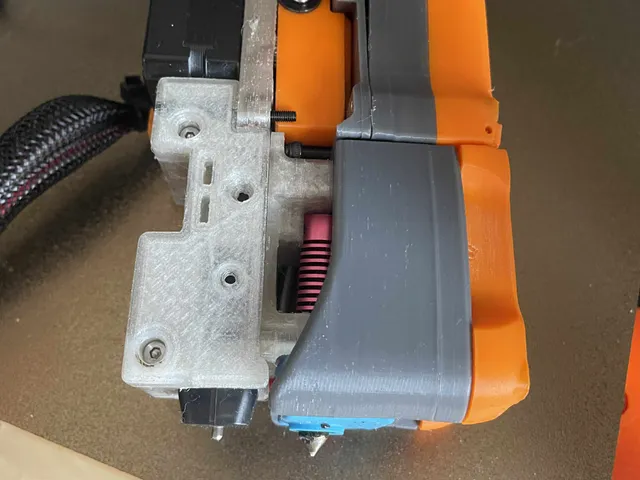

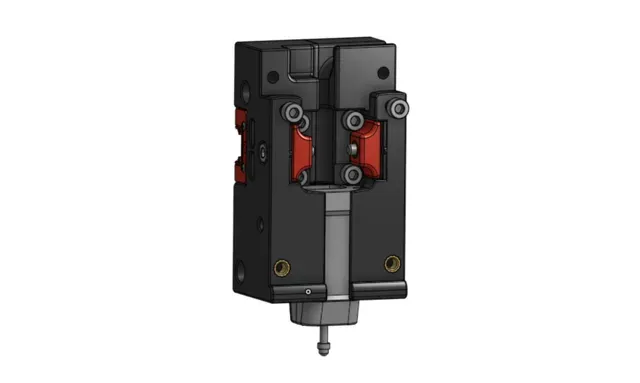

Integrated Cr-touch for Afterburner.

Cr or Bl touch on the side of the toolhead looks ugly and uses lot of space.  This carriage will make it cleaner. I printed it with 50% infill, PET filament from Plastic bottle. Of course you can print it with any filament you want. But recommended to print with ABS. If the Cr-touch is too loose, it has CR-Touch tightener. But in my case, my Cr-touch mounted already tightly inside the two carriages, so i didn't print the tightener. M3 bolts, nuts, heated inserts are required. This carriage uses only mgn9 rail. There is extra STL file for double mgn9 rail. If you want to edit and use it on you own need, here is the link .

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 4 walls, 50% infill .PLA

.0,2mm layer height .print without support

.4 wall

.50% gyroid infill
