Amiga A1200 Gotek Mount w/ "Floppy" Interface

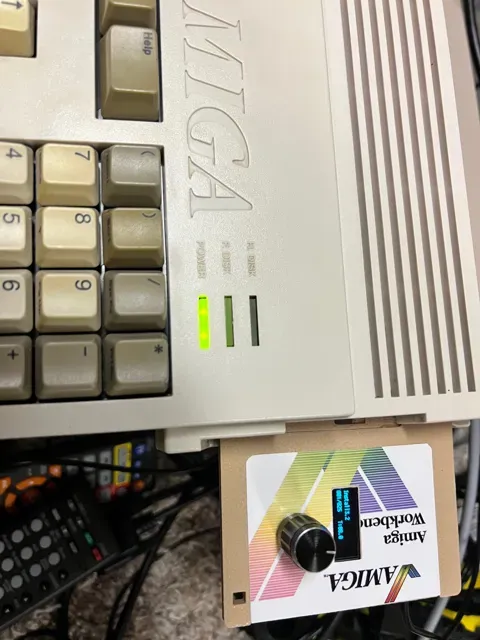

A unique Gotek Mount for the Amiga A1200 that moves the interface (OLED screen + rotary encoder) to a “floppy” sticking out of the mount, simulating a real floppy.

Use a low profile Encoder and the 0.91 Inch I2C OLEDs everyone uses with the Gotek. Wire it as usual (check FlashFloppy wiki, etc)

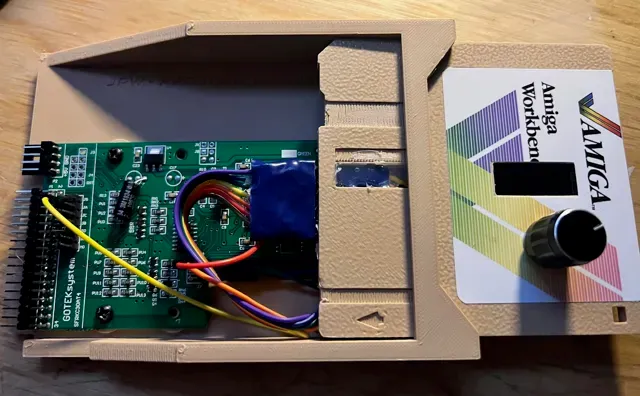

I used Female Dupont wires on the floppy side (routed under the “lip” to create the edge connector for connecting the oled + encoder, and male duponts for the gotek side of the harness. These could easily be substituted with headers.

*NOTE: The USB port is relocated to where the EJECT button would be on a normal floppy; desolder the existing port from the Gotek and run wires to extend it there; I just used some JB Weld to keep it in place (in case you want to use a different port).
