Floor Vent 4" HVAC Air Duct Adapters

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
уточняйте на площадке
Условия задаёт автор — проверьте их на странице модели, прежде чем печатать на продажу.
Форматы
3MFSTL
  • 519 Лайки
  • 560 Загрузки
  • 424 Напечатали
  • 2 044 В подборках
  • 29 Бусты
  • 116 Комментарии
  • 0 Просмотры

Автор:thomascb

Опубликована

Скачать на MakerWorld

Описание

Boost Me Did this model help you? Boost me and I'll develop more practical stuff just like this! :)  HVAC Floor Vent Adapter for 4" Duct Hose

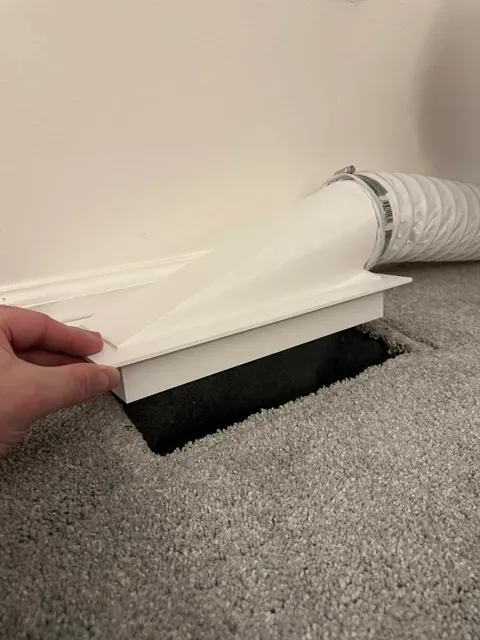

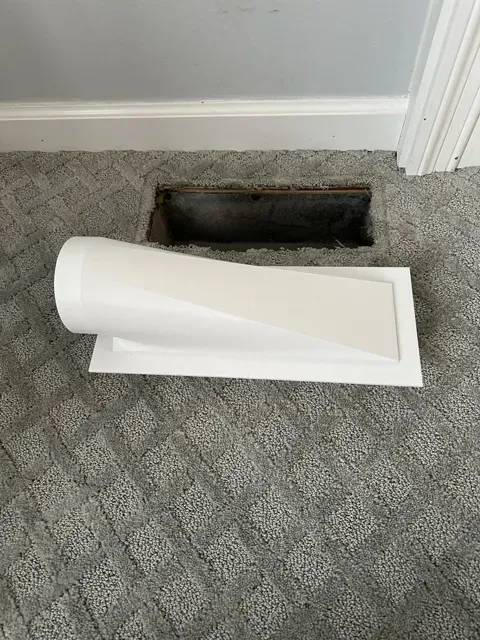

Modern homes all seem to locate floor registers right where you naturally want to place a bed, a dresser, or other piece of furniture. I needed a simple and effective solution to relocate the air coming from the floor vent under our bed so that my wife and I didn't freeze in the winter and roast in the summer.

I present to you…my over-engineered solution! It works beautifully.

I've uploaded many print profiles for most standard vent sizes:

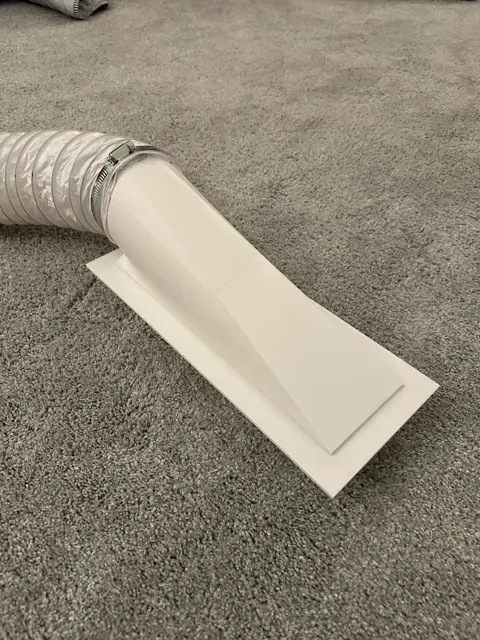

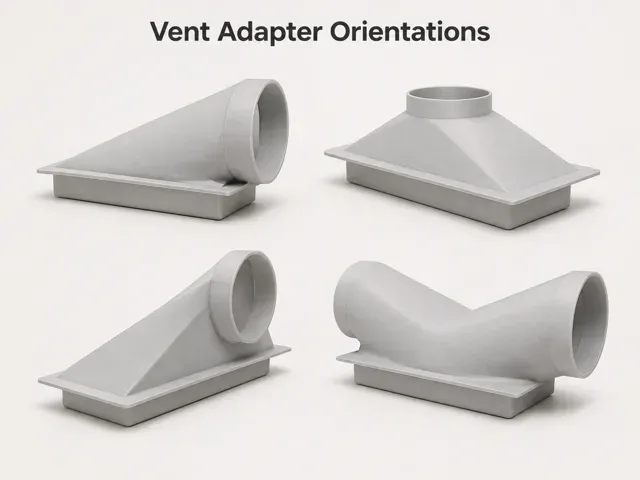

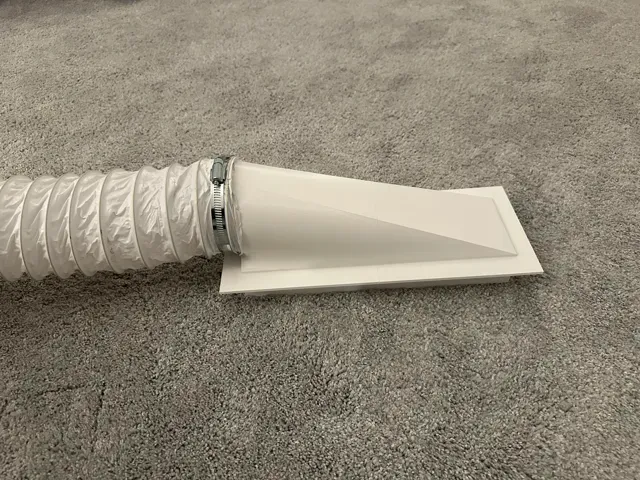

- 4x12, 4x10, 6x10, 6x12, 8x10, 3x10, 2x10 and 2x12, side, vertical, forward facing, and even double versions. - Please leave a comment to request the additional sizes you need in the comments and I'll get a profile made for you!  Each adapter mates perfectly to readily available (and cheap!) 4" spiral duct hose. Assembly is very straight forward. All you need is to print the pieces, a couple drops of super glue, and a length of 4" spiral hose duct.

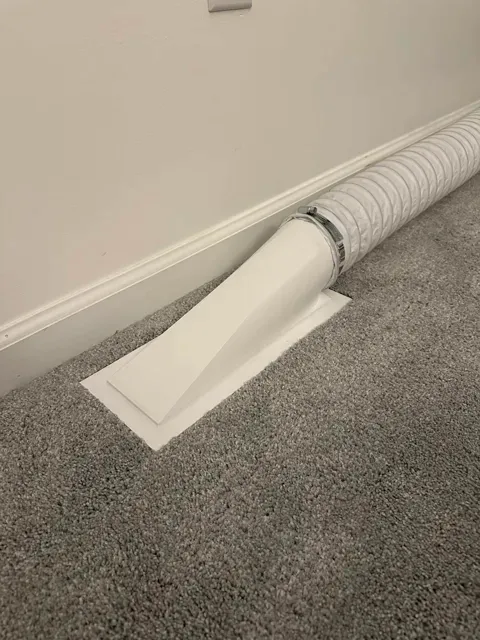

Now you can easily route your conditioned air where you actually need it to go ! No more wasted energy or hot/cold spots.

Use these awesome floor vent adapters with my low profile diffuser vent or my bedside bed vent system for extra cooling and heating comfort!!!

Please boost me if these helped you, and share a picture in the comments to show everybody your builds! :)

Руководства и профили печати

Профили печати и шаги

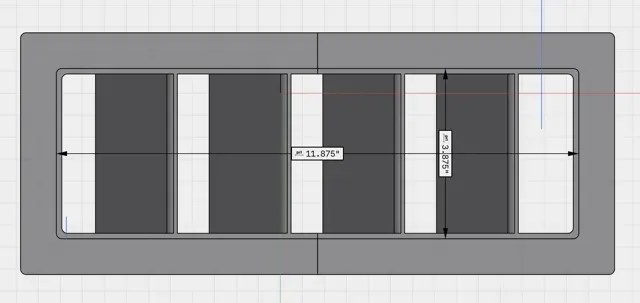

4x12" Vent 0.2mm layer, 2 walls, 15% infill 4x12" Vent Size

.20mm standard line height

Print with supports (on auto) for best results!

15% infill (gyroid)

4x12 Vertical Adapter 0.2mm layer, 2 walls, 15% infill 4x12 Vertical Adapter

4x12 Front Vent Adapter 0.2mm layer, 2 walls, 15% infill 4x12 Front Vent Adapter

Supports on by default. I suggest leaving them on!

4x12 Double Vent Adapter 0.2mm layer, 2 walls, 15% infill 4x12 Double Vent Adapter for 4" duct hose

4x10 Vent Size 0.2mm layer, 2 walls, 15% infill 4x10" Floor Vent Size

4x10 Vertical Adapter 0.2mm layer, 2 walls, 15% infill 4x10 Vertical floor vent adapter

4x10 Front Adapter Vent 0.2mm layer, 2 walls, 15% infill 4x10 Front Adapter Vent

4x10" Double Vent 0.2mm layer, 2 walls, 15% infill 4x10" double split vent

2x12" vent size 0.2mm layer, 2 walls, 15% infill 2x12" vent size

2x12 Vertical Vent Adapter 0.2mm layer, 2 walls, 15% infill 2x12 Vertical Vent Adapter. Print with supports enabled for best results. Default has supports enabled.

2x12 forward vent adapter 0.2mm layer, 6 walls, 25% infill 2x12 forward vent adapter

2x12 Double Vent Adapter 0.2mm layer, 2 walls, 15% infill 2x12 Double Vent Adapter. Print with supports enabled!

2x10" vent size 0.2mm layer, 2 walls, 15% infill 2x10" vent size

3x10" Vent Size 0.2mm layer, 2 walls, 15% infill 3x10" Vent Size

6x10" Vent Size 0.2mm layer, 2 walls, 15% infill 6x10" Floor Vent Size

8x10 vent size 0.2mm layer, 2 walls, 15% infill For 8x10" floor vents

6x12" Vent Size 0.2mm layer, 2 walls, 15% infill 6x12" Vent Size

4x8 Side Vent Adapter 0.2mm layer, 2 walls, 15% infill

4x8 Vertical Vent Adapter 0.2mm layer, 2 walls, 15% infill 4x8 Vertical Vent Adapter

4x8 Double Vent Adapter 0.2mm layer, 2 walls, 15% infill 4x8 Double Vent Adapter

4x8 Forward Vent Adapter 0.2mm layer, 2 walls, 15% infill 4x8 Forward Vent Adapter

4x10 inch version, 0.2mm layer, 2 walls, 15% infill 4x10" version

Use superglue to tack parts together and then some combination of a gap filling adhesive like two-part epoxy or UV resin, or filament and a soldering iron to fill the gaps and make it airtight.
