Dry box inlet M8
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- CC-BY-NC-SA
- Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
- Форматы
- 3MF
- 8 Лайки
- 31 Загрузки
- 10 Напечатали
- 25 В подборках
- 0 Бусты
- 9 Комментарии
- 0 Просмотры
Описание

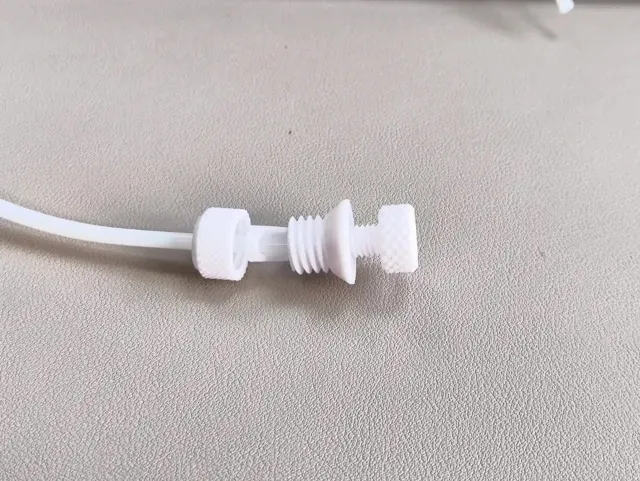

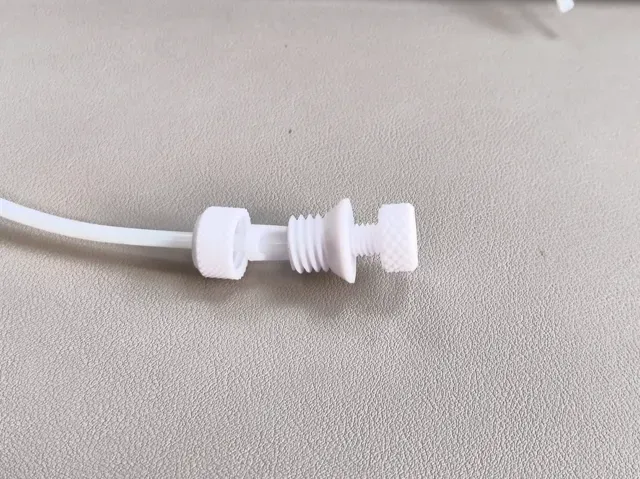

These are 2 parts modified from
https://makerworld.com/en/models/501070-simple-dry-box-inlet#profileId-416128
to make the Dry Box Inlet into a more common M8. This way you can drill an 8mm into the box, which is more common in case you'd want to replace for PTFE fittings or any other solution down the road.
Since the owner doesn't allow remixes, this file only contains my own designed parts:

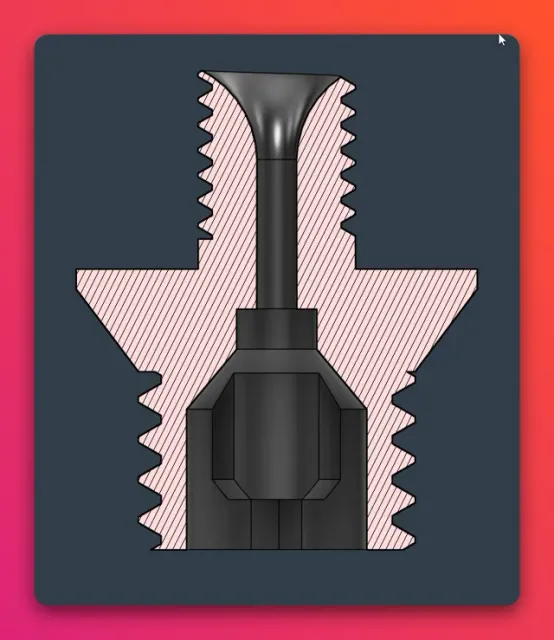

- Inlet body - Inner nut They are fully compatible with the other parts from the original design. I printed them in PLA, but PETG is obviously also a good option.
01/06/2026: design replaced with V2 for better thread resistance.
Руководства и профили печати
Профили печати и шаги
M8 body & M8 inner nut Nothing special. No supports needed.
