Reinforced dry box 8mm adapter inlet

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
3MFSTL
  • 1 Лайки
  • 7 Загрузки
  • 4 Напечатали
  • 1 В подборках
  • 0 Бусты
  • 0 Комментарии
  • 0 Просмотры

Автор:Xmurij

Опубликована

Описание

This adapter modification is based on the model https://makerworld.com/en/models/2378745-dry-box-inlet-m8 and solves the problem of the 8mm diameter inlet thread walls weakening, causing it to break even with minimal force(even before tightening on a dry box).

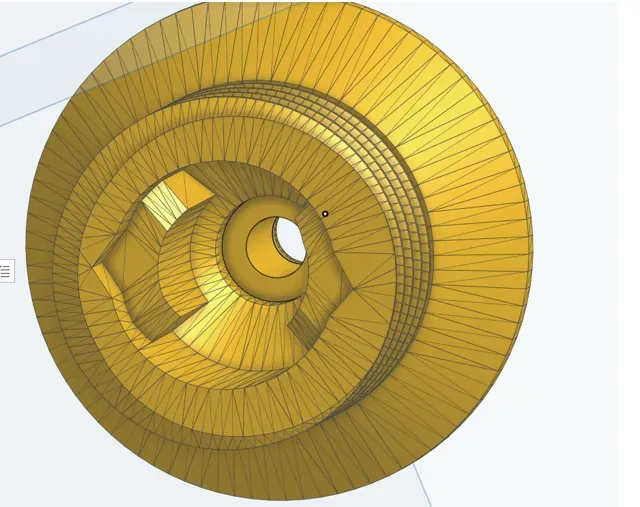

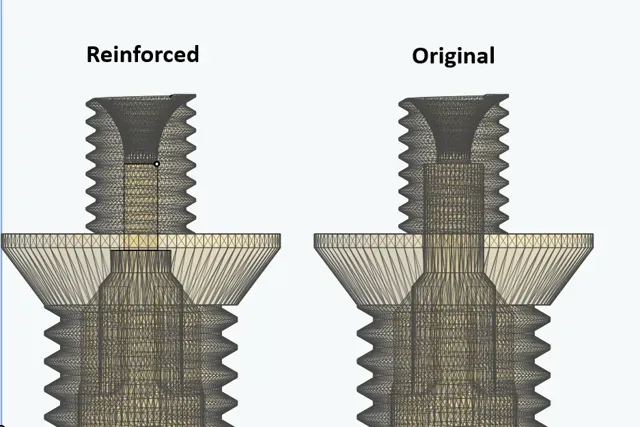

Solution details: weakened walls of the thread reinforced with extruded tube till massive body part, but left space for secure fixation of the PTFE tube in the center.

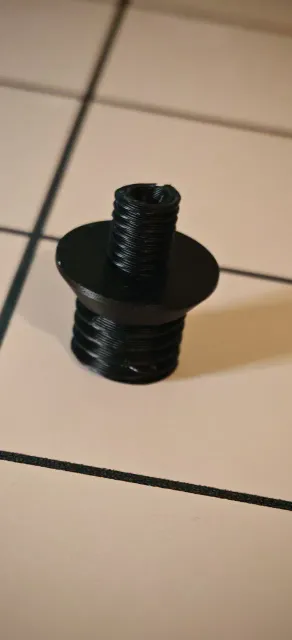

Fully compatible with the other parts from the original design. Printed and tested using BambuLab PETG-HF.

Руководства и профили печати

Профили печати и шаги

0.16mm layer, 2 walls, 15% infill · 0.16mm layer height; · print without support;
