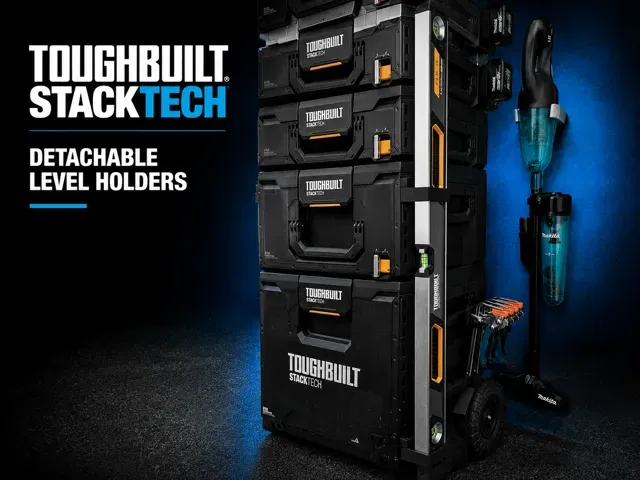

🔗 Detachable level holders!

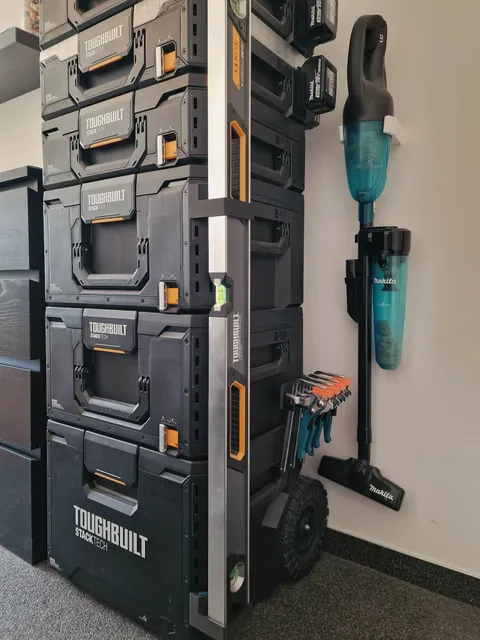

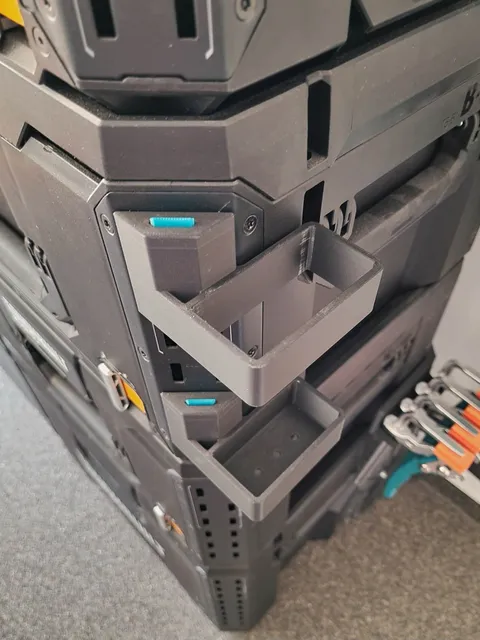

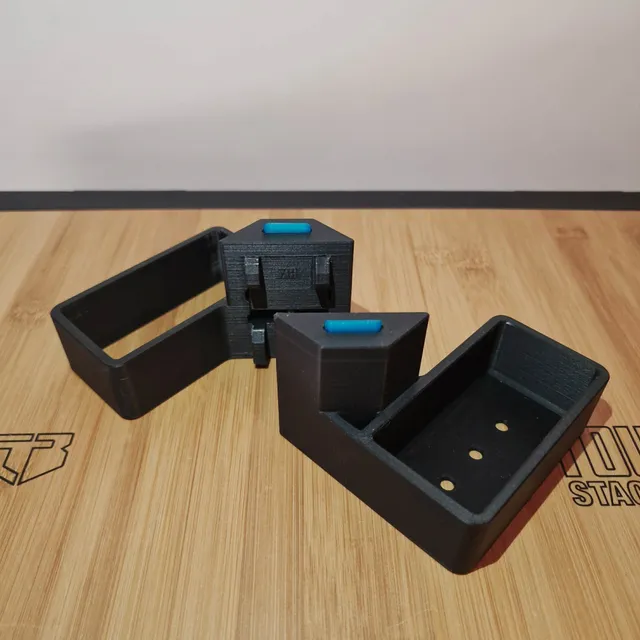

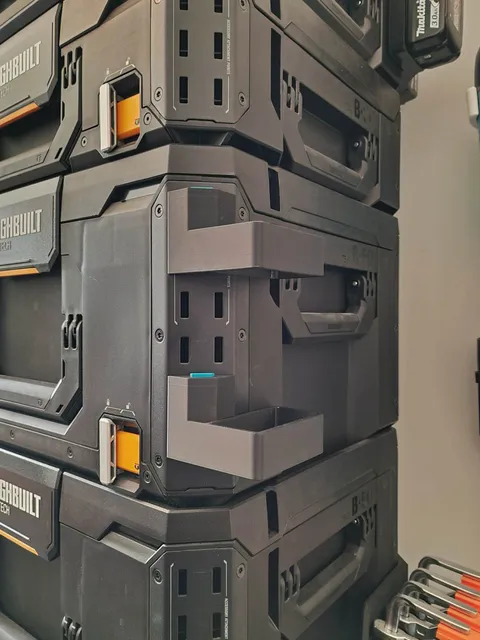

A siderail attachment to mount various sizes of levels to the side of your Toughbuilt boxes.

Comes in a couple of *sizes:

- 40x80 for the Toughbuilt TB-H2-L-M23, 60, 120 & 200 levels - 25x55 for typical, thin levels - 25x55 double for two typical, thin levels

🔩 Required hardware

If you've ever wondered why you've been saving up all random ballpoint pens; this is the time! Disassemble them to reuse the spring inside for these cable winders. Any* spring up to ∅4.5mm and 25mm long works perfectly fine.

*Not all these springs are identical, some may need some alterations to fit this model.

Alternatively, you could buy the Bambu Labs ones as mentioned in the BOM.

⚙️ Assembly

The provided print profiles will be enough for two mounting buddies. Remove or add to your needs.

- Put the spring into the reserved hole on the bottom of the slider.

- Lay the pushing pin in the main body with the small part to the top and push it through.

- Press in the spring to its minimum length and put the slider into the main body where the cutouts meet the sliders.

- Release the slider and enjoy!
