Adjustable Door Hinge Router Template

Membership Sell physical prints of this model legally with a 3DPartTech Commercial License. Adjustable Door Hinge Router Template - By 3DPartTech

This adjustable router template is designed to help create clean and accurately positioned hinge recesses in doors using a handheld router.

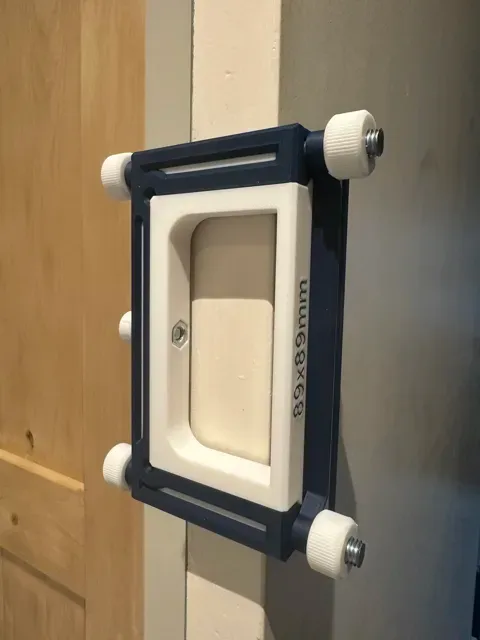

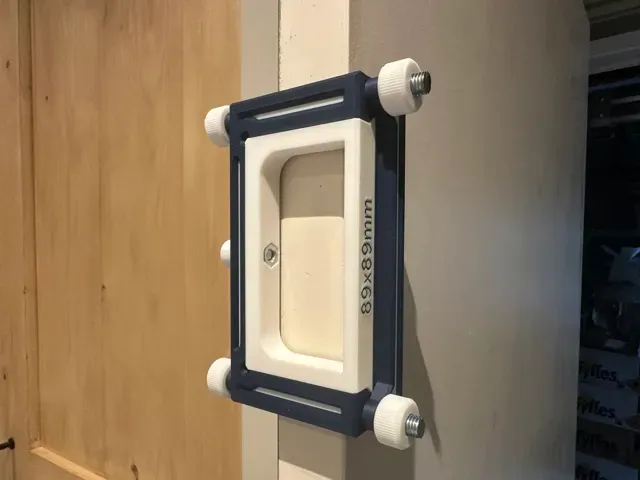

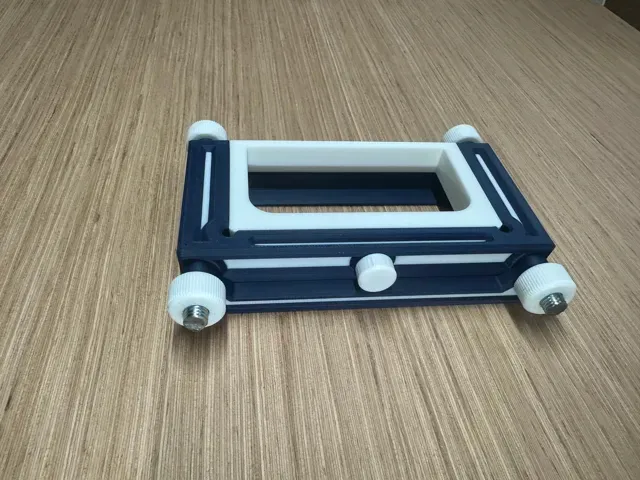

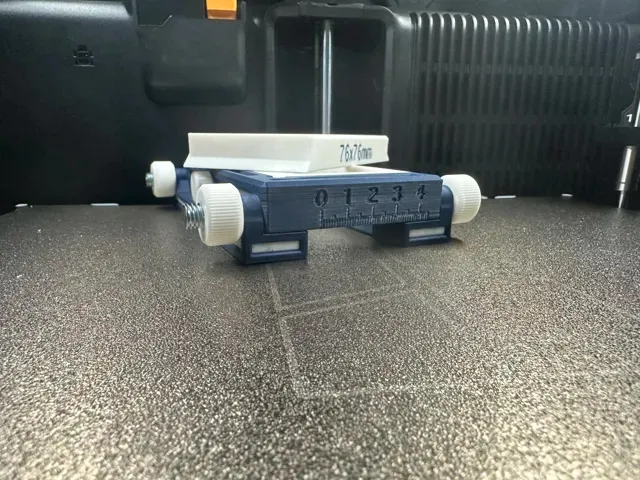

The main body clamps directly onto the edge of the door. Its adjustable construction makes the template suitable for doors with a thickness of 38 mm and above . The maximum supported door thickness depends on the length of the threaded rods used and the physical adjustment range of the main body.

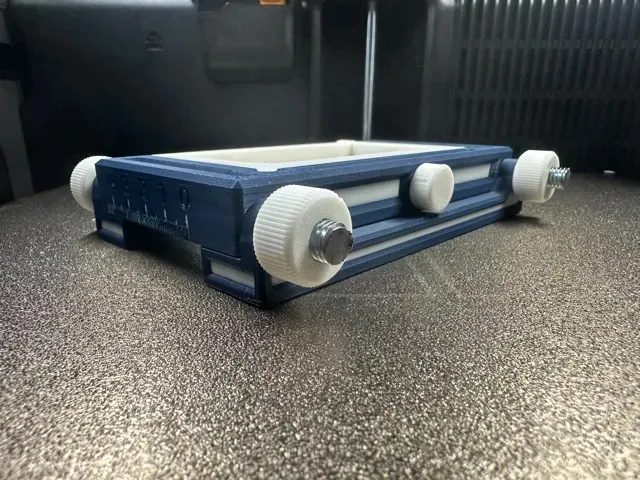

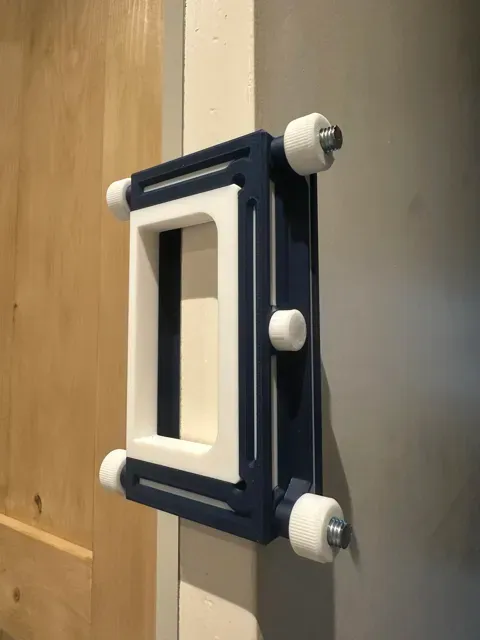

The template is secured to the door by evenly tightening the four clamping nuts. This provides a stable setup without requiring screws or additional clamps to be attached to the door.

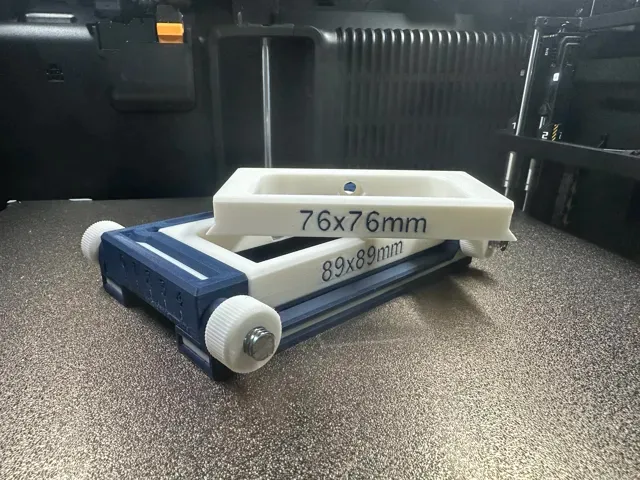

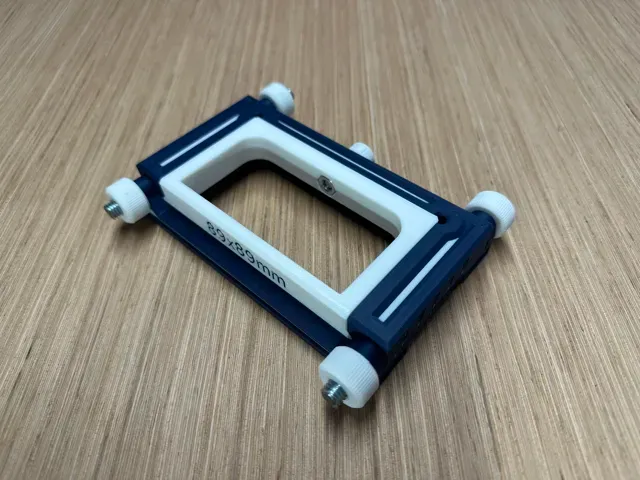

Two interchangeable hinge inserts are included (on request others are possible):

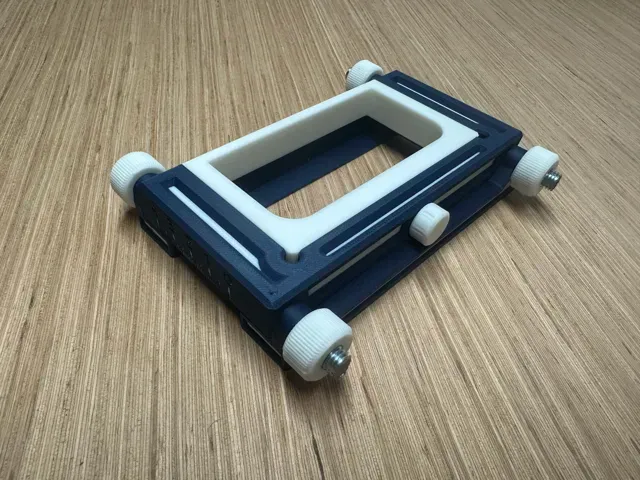

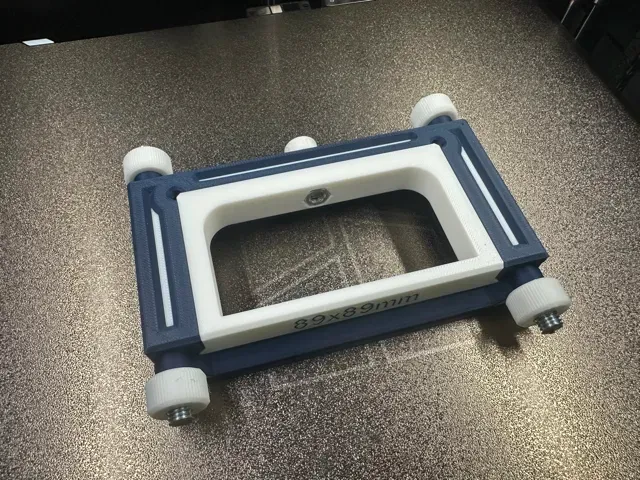

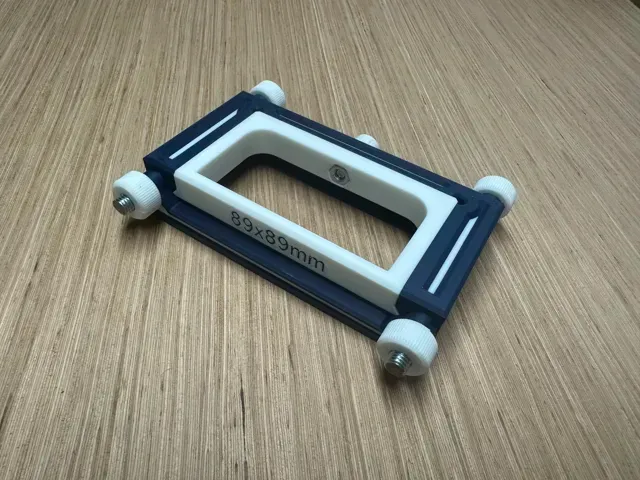

- 76 × 76 mm hinge insert - 89 × 89 mm hinge insert Select the required insert, slide it into the main body, and secure it with an M6 × 20 bolt . The inserts can be exchanged making the template useful when working with different hinge sizes.

Main features

- Adjustable width for different door thicknesses and different positions for the hinge - Suitable for doors from 38 mm thick - Maximum thickness can be increased by using longer threaded rods - Four-point clamping system - Two interchangeable hinge inserts included - Insert sizes clearly marked on the printed parts - Inserts slide into the main body - Insert secured with an M6 × 20 bolt - Designed for use with a handheld router - Modular and reusable construction - No permanent attachment to the door required in the form of screw holes Included printed parts

- Adjustable main body components - 76 × 76 mm hinge insert - 89 × 89 mm hinge insert - Four clamping knobs - Insert locking knob Additional threaded rods, nuts, bolts cab be found below in the BOM.

Further explanation, assembly information, and operating instructions are provided in the attached PDF. Please read the PDF before assembling or using the template.

Important use information

Check that the selected insert matches the actual hinge dimensions before routing. Always make a test cut on scrap material first, especially when using a different router bit or guide-bushing setup.

Make sure all four clamping nuts and the insert locking bolt are securely tightened before starting the router. Follow the router manufacturer’s safety instructions and use appropriate eye, hearing, and dust protection.
