RETRO - Arcade Machine WIP

RETRO - Arcade Machine

!!!!! WORK IN PROGRESS !!!!!

Stay tuned for updates

Most of the files are included, more will come with updates.

List of electronics, use as a reference, search for cheaper near you, but these are what I will use.

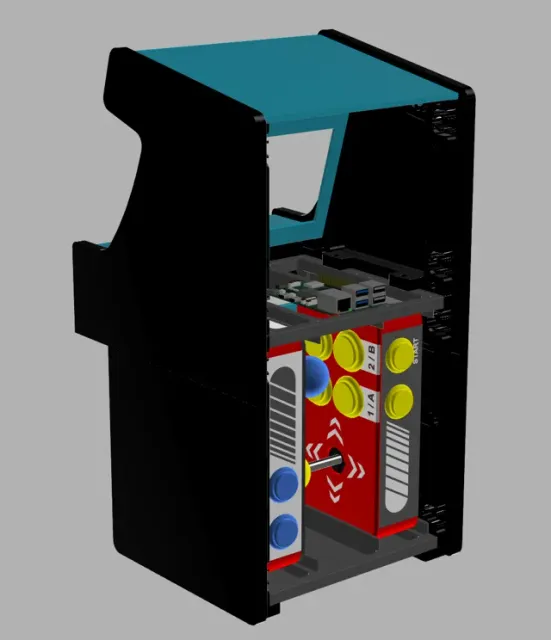

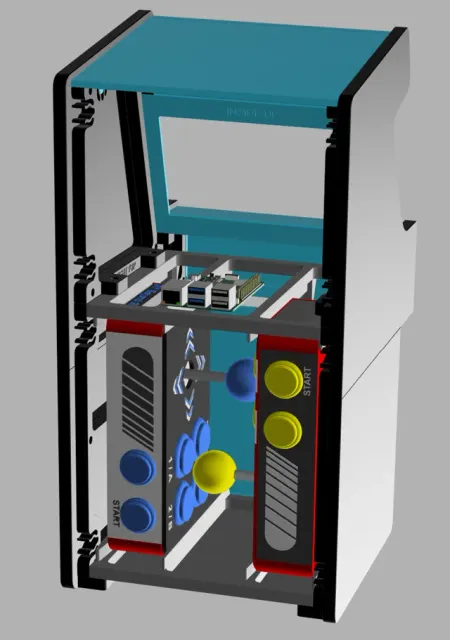

You can house 2 RETRO Joysticks inside the cabinet.

https://makerworld.com/en/models/47672#profileId-49465

- Raspberry Pi2, Pi3, Pi4 or Pi5 with microSD and an Image for games https://www.arcadepunks.com/category/raspberry-pi-and-other-sbc-images/raspberry-pi-4-images/

- 7" lcd with speakers https://es.aliexpress.com/item/1005006047612156.html?pm=a2g0o.order_list.order_list_main.5.367d194dD6V8aQ&gatewayAdapt=glo2esp

- M3x12mm hex screws are needed - Superglue

-----------------------------

7th Nov 2023 files

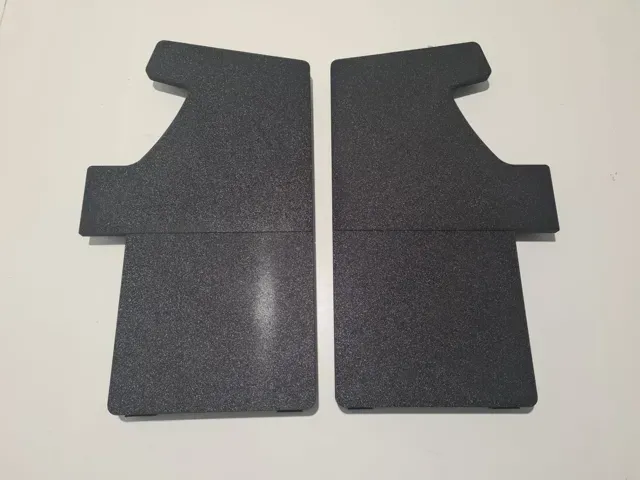

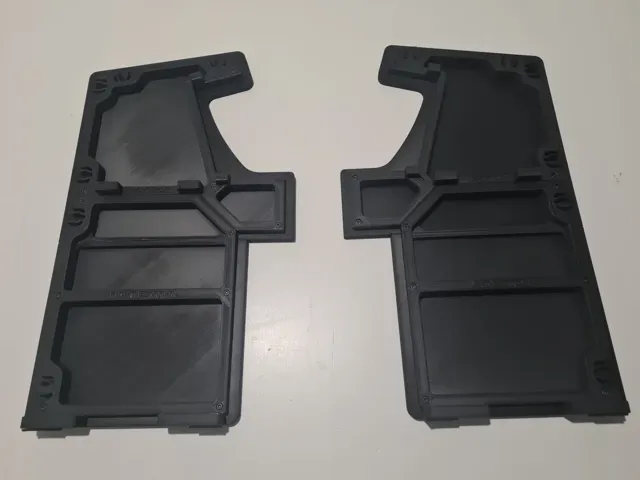

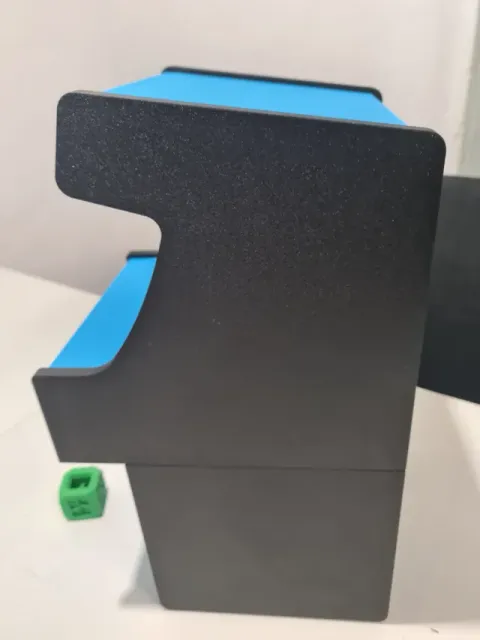

4 side objects (black on photos)

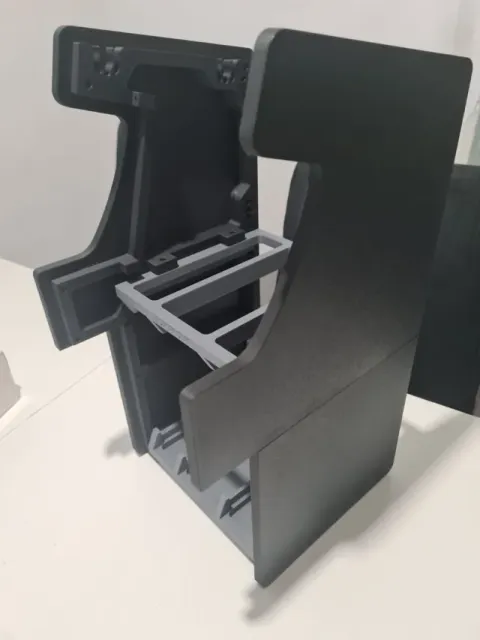

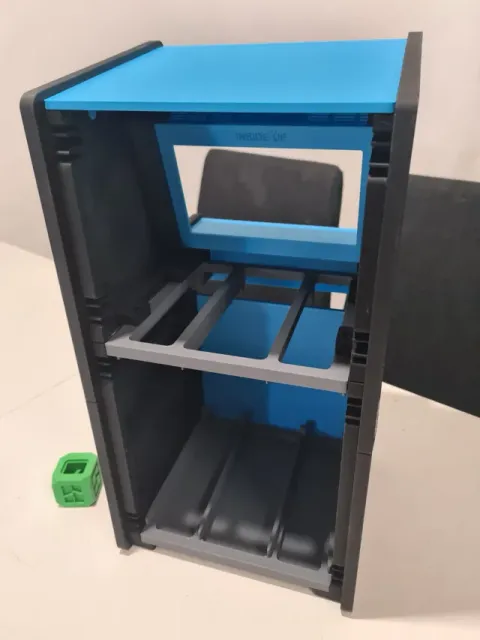

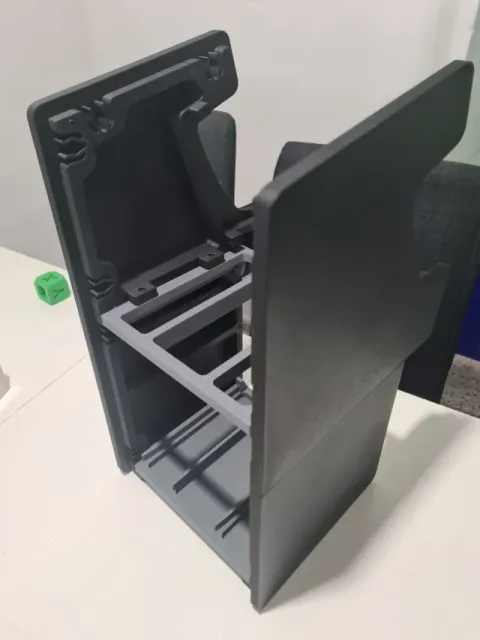

6 frame objects (black and gray)

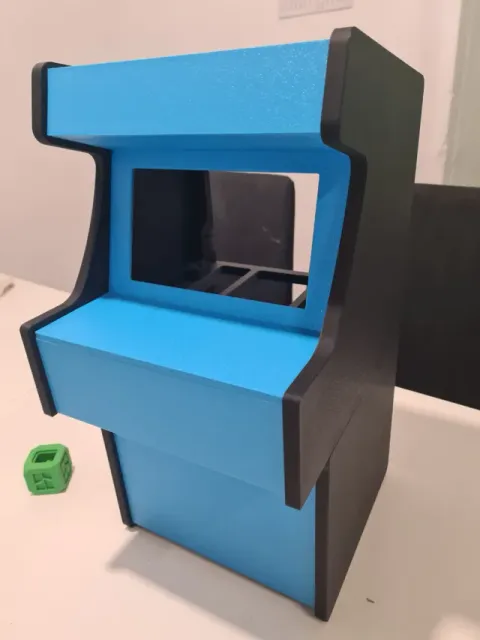

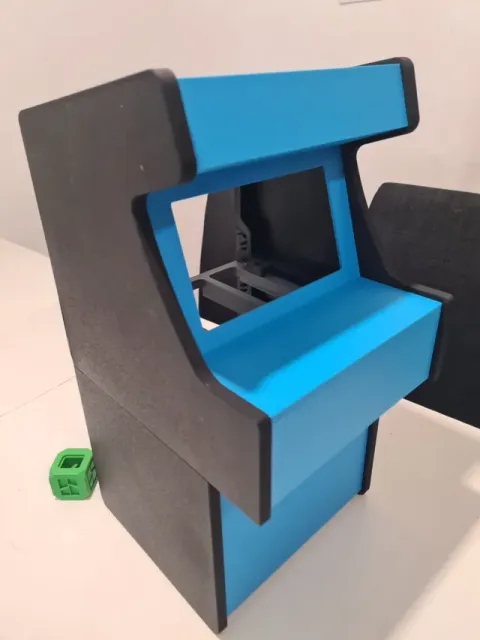

7 face objects (light blue)

----------------------------

Update 1 2nd Dec 2023

3 New Parts:

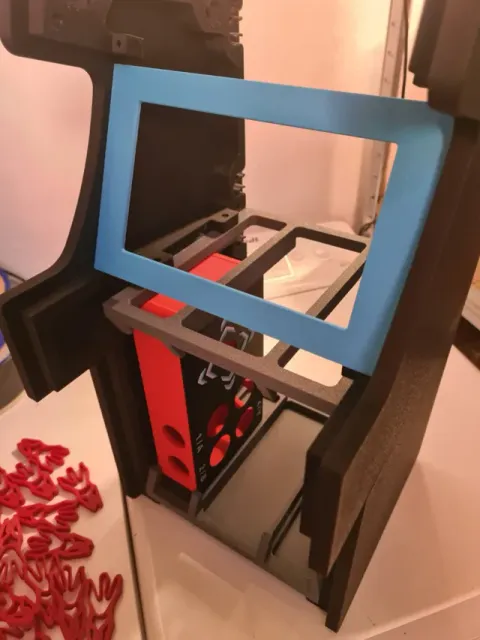

Monitor Mount L and R Speaker mounts.

HEX screws needed:

4x M2.5 x 10mm 7" lcd on yellow mount 4x M3 x 8mm for Speakers mounts 4x M3 x 25mm yellow mount on the arcade frame

If you decide to mount speakers on the printed mounts then soldering is required because original cables are very short.

---------------------------------

Update 2
