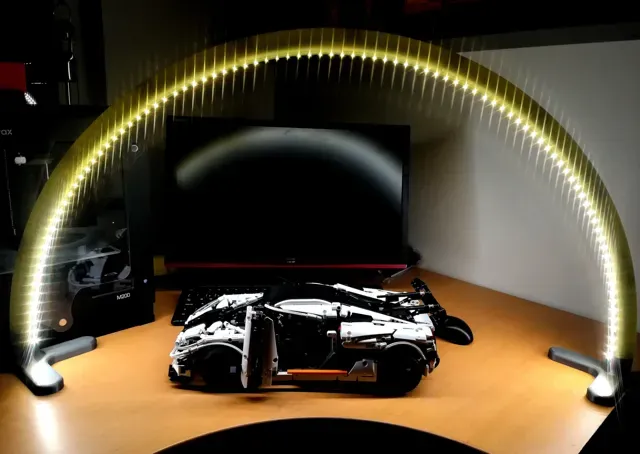

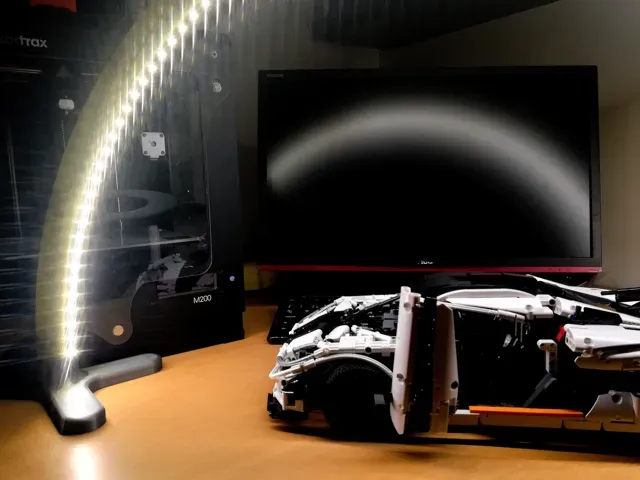

Easy-to-print LED arch with only 3 different parts.

Print 10x of Arch.stl - no support needed Print 1x Base1.stl - support needed (from build plate only) Print 1x Base2.stl - support needed (from build plate only) On the bases there are cutouts underneath for 2xM12 nuts (on each) to add weight. It is not needed, but could add stability.

Any layer height from 0,1-0,3 would do. Any material is possible. I printed it in PLA.

Fits any LED Strip of width up to 10mm and length morre than 1,5m / 60" - I haven´t tried the Bambu Store LED strip as I made this before Bambu Lab was founded, but measurements suggest it would work (needs to be cut to length).

Size assembled: Width: 105cm / 41" Height: 56cm / 22"

Please share your makes here if you get it done!

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 3 walls, 12% infill 0.2mm layer height

Support for the bases but not for the arch parts

12% Gyroid infill

No brims

10x arches on one plate (17h17m) and both bases on another (3h44m)

Total material in PLA: 756.15g

Single arch piece with z-hop Print a single arch piece instead of all at once.

Added Z-hop too.

0.2mm layer, 3 walls, 12% infill I slightly trimmed the connection parts to make it printable with the A1 Mini while keeping the final size unchanged.

0.2mm layer, 2 walls, 12% infill 0.2mm layer

2 walls

12% infill

with automatic tree support

100% stick and successful :-)
