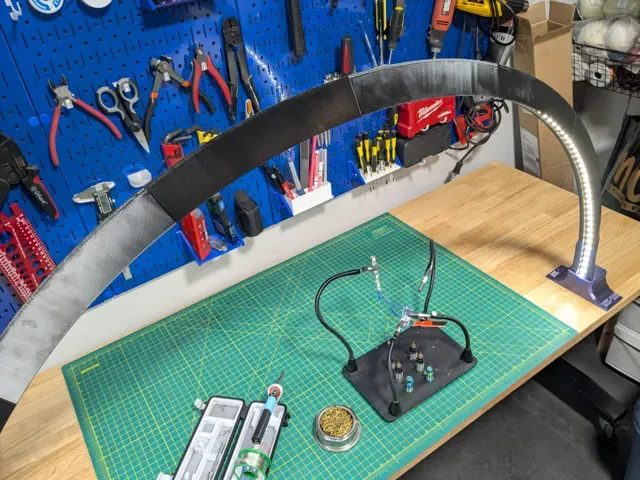

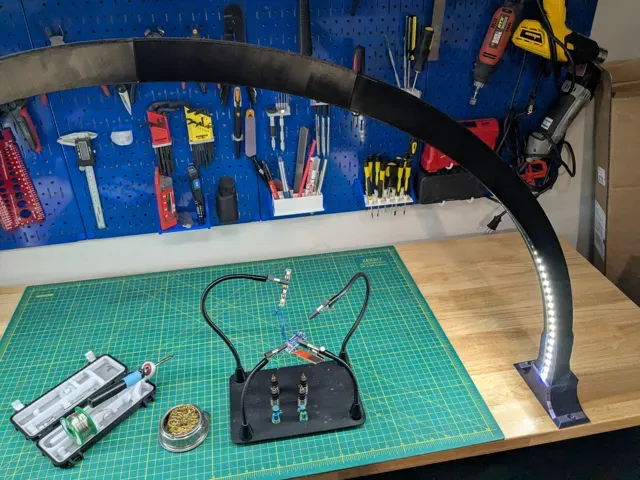

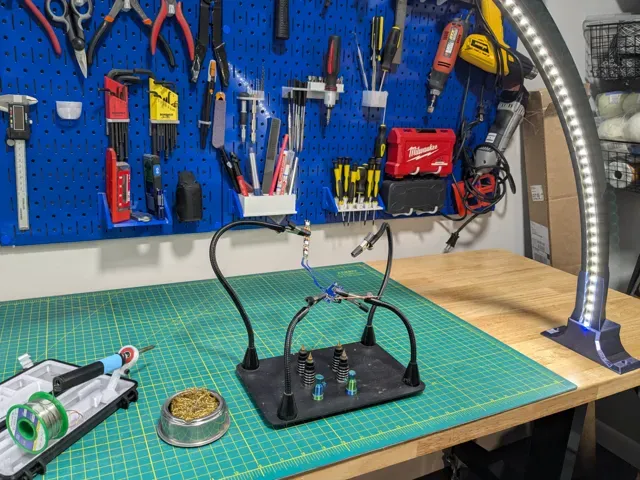

Desk-mounted LED light bridge for 180 degree illumination. Great for soldering, painting, and more.

Designed with 3 goals in mind:

- Simplicity - only 3 different pieces. Arch segments and connectors are bidirectional - Strength - The arches are designed to print with 3 x .4mm walls, or 2 x .6mm walls, and have a reinforced structure - Efficiency - The entire unit only requires around 0.6kg of filament Print the following amounts:

- Base x 2 - Segments x 8 - Connectors x 7 Additional Hardware:

- LED strip - channel is designed to fit any of the typical 8-12mm led strips on the market.  1.7m long should be plenty. - I used this LED strip for good brightness/color accuracy: https://amzn.to/46i1D41 - Countersunk Wood screws x 4 - Optional for mounting to a desk Length from base to base once assembled: 120cm as designed. You should be able to scale each piece up/down uniformly to fit your workspace.
