PSU/Radiator Cover for Fractal Design Meshify 2

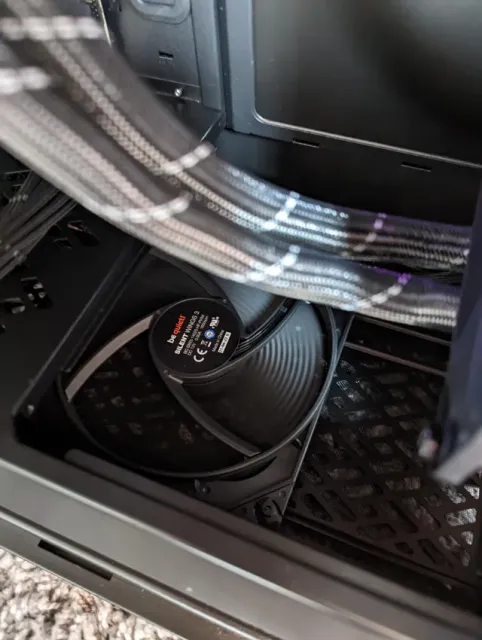

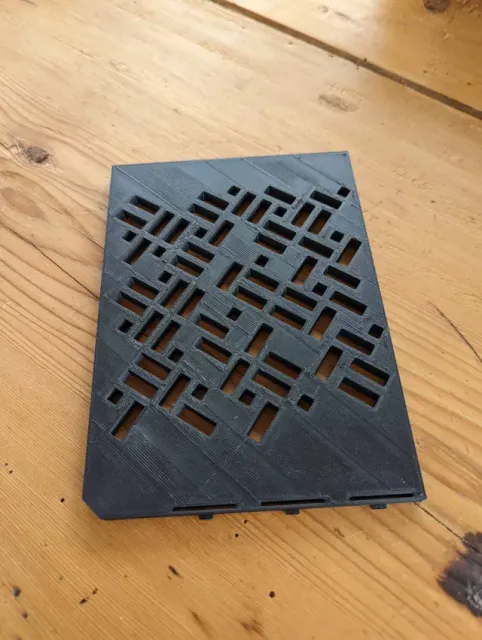

I installed a 280mm radiator in my Meshify 2 case. So I wasn't able to fit a third 140mm fan in the front of the case. Because I needed the extra airflow to cool my GPU I installed a 140mm fan at the bottom. But with the original cover panel, airflow was no existing. So I designed a cover with cutouts inspired by the original design of the case.

With my design airflow provided to the gpu is improved and the GPU stays cooler and boosts higher.

The cover should also work with the Meshify 2 XL and Compact but I only tested it with a Meshify 2. Should work with most radiator thicknesses. I'm using the Arctic Liquid Freezer II 280mm which is 38mm thick without the fans.

Fusion 360 file is provided if you want to modify the design.

Print Settings

- Supports: Yes - Resolution: 0.2mm - Infill: 20% - Filament brand: 3DJake - Filament color: Matt Black - Filament material: PLA Supports are needed for the tabs on the back. If they don't fit in the spaces of the case just sand them down.
