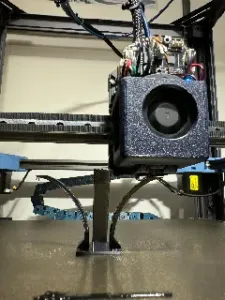

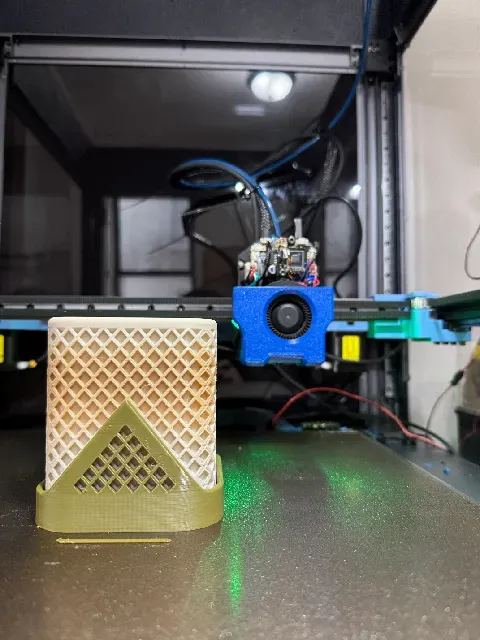

Gondola v5 - Low Profile Fan Shroud for Sovol SV08

Designed and tested in collaboration with @SeeingRED

BL hotend version coming once I have a chance to get it up to date with all improvements.

Print with Voron settings: 4 walls, 5 top/bottom, 25% gyroid infill.

Requires 4x heat set inserts M3 x 4.5mm OD x 5mm L

Use stock screws with belt retaining clips

M3x10ish for attaching body to frame

LEDs

3x WS2812b RGB LED on 10mm PCB

Connect via toolhead UART port: 5v PA10 GND. Consult Nadir's wiring guide here .

May be helpful to grab some 4 pin JST 1.25mm connectors with wires pre-pinned.

Arms are compatible with all main bodies.

Config

[neopixel hotend] pin: extra_mcu:PA10 chain_count: 3 color_order: GRB initial_RED: 0.3 initial_GREEN: 0.3 initial_BLUE: 0.3 #initial_white: 0.3 Use the below macro format to make the lights turn different colors. I've created one for all the different phases of START_PRINT, I'll post mine as an example below.

[gcode_macro status_homing] gcode: SET_LED LED=hotend INDEX=1 RED=0 GREEN=0 BLUE=0.5 TRANSMIT=1 SET_LED LED=hotend INDEX=2 RED=0 GREEN=0 BLUE=0.5 TRANSMIT=1 SET_LED LED=hotend INDEX=3 RED=0 GREEN=0.5 BLUE=0 TRANSMIT=1

[gcode_macro status_heating] gcode: SET_LED LED=hotend RED=.5 GREEN=0 BLUE=0 TANSMIT=1

[gcode_macro status_QGL] gcode: SET_LED LED=hotend INDEX=1 RED=0 GREEN=.5 BLUE=.25 TRANSMIT=1 SET_LED LED=hotend INDEX=2 RED=0 GREEN=.5 BLUE=.25 TRANSMIT=1 SET_LED LED=hotend INDEX=3 RED=0 GREEN=.25 BLUE=.5 TRANSMIT=1 My START_PRINT macro as an example of how to use LED macros. Note this has a Beacon-specific z-offset routine, please check and modify as needed before using. Right

[gcode_macro START_PRINT] gcode: {% set BED_TEMP = params.BED_TEMP|default(60)|float %} {% set EXTRUDER_TEMP = params.EXTRUDER_TEMP|default(210)|float %} STATUS_HEATING M140 S{BED_TEMP} M104 S{EXTRUDER_TEMP} {% if not 'xyz' in printer.toolhead.homed_axes %} M117 Homing... STATUS_HOMING G28 {% endif %} {% if printer.quad_gantry_level.applied|lower != 'true' %} M117 Quad Gantry Level... STATUS_QGL QUAD_GANTRY_LEVEL {% endif %} G90 M117 Nozzle Wipe... G1 X315 Y360 Z5 F9000 M109 S{EXTRUDER_TEMP} G1 Z3.5 F300 G1 X330 F4500 G1 Y360 X300 G1 Y360 X330 G1 Y360 X300 G1 Y360 X330 G1 Y360 X300 G1 Y360 X330 G1 Y360 X300 G1 Y360 X330 G1 Y360 X300 G1 Y360 X330 G1 Y356 X300 G1 Y360 X330 G1 Y357 X300 G1 Y360 X300 G1 Y357 X330 G1 Y360 X330 G1 Y357 X310 G1 Y360 X310 G1 Y357 X310 G1 Y360 X330 G1 Y357 X330 G1 Y360 X330 G1 Y357 X300 G1 Y360 X300 G1 Y357 X300 G1 Y360 X330 G1 Y357 X330 G1 Y360 X330 G1 Y357 X300 G1 Y360 X300 G1 Y357 X300 G1 Y360 X330 M400 G1 X338 Y360 G91 G0 Z5 G90 G1 X338 Y330 STATUS_MESHING M117 Bed Mesh... BED_MESH_CALIBRATE adaptive=1 STATUS_OFFSET G90 G1 E-3 F1000 SET_GCODE_OFFSET Z=0 G28 Z METHOD=CONTACT CALIBRATE=1 M117 Line Purge... STATUS_PURGING LINE_PURGE STATUS_READY M117 Print Start!
