ODroid H4 NAS Case

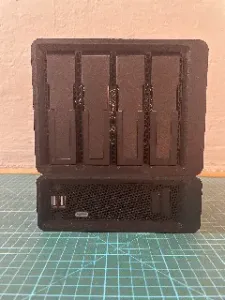

This is a compact network attached storage (NAS) case for the Odroid H4+ (ultra) which uses an Intel N97 (faster variant of n100).

Onshape: H4 NAS | NAS

This case is designed to house four 2.5" drives (SSD/HDD), Odroid H4+(ultra), and 40mm fan.

Part List:

- 1x ODroid H4+ (or Ultra) https://www.hardkernel.com/shop/odroid-h4/ - 4x 2.5" SSD/HDD (I used 8TB Samsung 870 SSDs) - 2x Noctua NF-A4x20 PWM fans - 4x Small round rubber feet https://www.amazon.com/dp/B078QZBT8G?ref=ppx_yo2ov_dt_b_fed_asin_title - 4x M4x6mm Low Profile Socket Screws https://www.mcmaster.com/92855A403/ - 26x M3x6mm Low Profile Socket Screws https://www.mcmaster.com/92855A301/ - 4x Power/SATA Cables https://www.hardkernel.com/shop/sata-data-and-power-cable/ - M3 Heatset Inserts - M4 Heatset Inserts Optional:

- 4x Short thin SATA cables https://www.amazon.com/dp/B0C669RZYT - These make it significantly easier to package up everything - 1x USB A breakout https://www.amazon.com/dp/B07NP7JRYX - Only needed if you need an internal USB for something like Unraid All parts can be printed without supports, see attached 3mf for orientations (should be relatively straight forward).

Assembly should be relatively straight forward but feel free to message if there are any questions.

NOTES:

- The fan mount is made specifically for Noctua NF-A4x20 fans and is toolless and only supports an exhaust configuration. You should be able to just snap the fans in with the air exhausting to the right of the case. - Recommend removing the braided sleeve off the noctua fan cables. Makes it a lot easier to route the cables.
