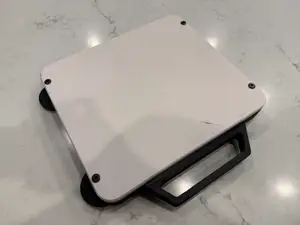

Starlink Mini Flat Mount

Starlink Mini Dishy Flat Mount

- 8 Piece Design

- Bottom pieces can be printed with or without magnet recesses

- Printed on Prusa MK4S

Print Settings:

- 0.2mm or 0.15mm layer height

- 30%-50% infill. Adaptive Cubic or Support Cubic

- 6 Wall loops. May get away with 4

- Need support from build plate for magnet mounts

- PETG recommended

Optional:

There are dot marks on the bottom of each bottom piece that can be printed in another color to help with assembly

Parts needed:

- x4 round puck magnets. I used these BQUKKIMAG 5Pack Rubber Coated Magnets D66x8mm M6 Round Magnets Strong Large Magnete with Thread, Flat Magnet with Hole Countersunk Head Pot Magnet for Screwing on Car Lights : Amazon.ca : Industrial & Scientific

- x32 M3x6 brass thread inserts. Holes are sized for these iplusmile Brass Nuts, Threaded Inserts Thread Brass Knurled Nuts Threaded Heat Set for Printing 3D Printer and More Projects, 100pcs : Amazon.ca: Tools & Home Improvement

- x32 M3x16mm screws

- x4 M8x35mm screws

- x4 M8 Nylon lock nut. I used these Hmevsafinect Nylon Insert Locknuts,25 Pack M8 304 Stainless Steel A2-70 Lock Nuts,Standard Metric Thread Nylock Nuts for Bolts (M8-25 Pack) : Amazon.ca: Tools & Home Improvement

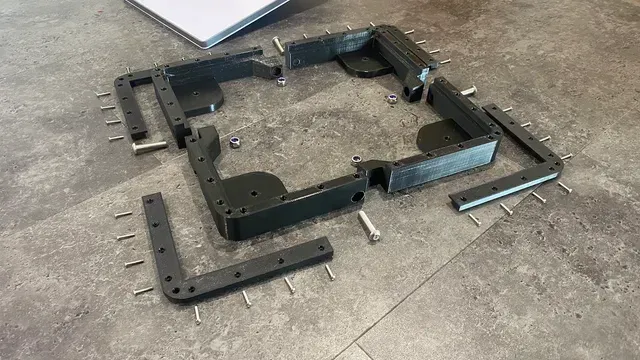

Assembly instructions:

- Heat set all 32 M3 brass inserts in the lower half of each piece of the flat mount.

- Attach the 4 puck magnets to the magnet locations using the M6 screws

- Assemble all 4 Pieces loosely using the 4 M8 screws and locknuts on a flat surface

- Place the mini dishy in the loosely assembled mount.

- Place the 4 top pieces on top to clamp the mini dishy in place. Screw down but do not tighten the 32 M3 screws

- Tighten the M8 screws to lock the dish in the mount.

- Tighten the 32 M3 screws.

- Enjoy your newly mounted mini Dishy
