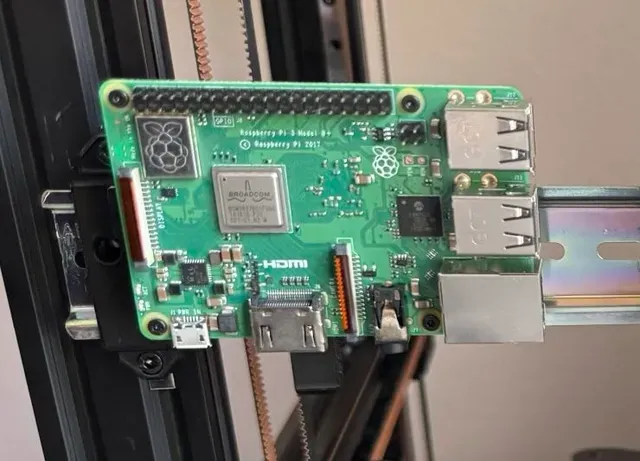

Raspberry Pi DIN Rail Mount (also compatible with BTT SKR Pico)

This design allows mounting of a Raspberry Pi or BTT SKR Pico to a DIN rail in conjunction with the Voron Design PCB DIN clip . It is compatible with the following boards, and any other board with 58mm x 49mm mounting centers with holes sized appropriately for M2 screws:

- Raspberry Pi 5 - Raspberry Pi 4b - Raspberry Pi 3b+ - Raspberry Pi 3a+ - Raspberry Pi 3b - Raspberry Pi 2b - Raspberry Pi 1b+ - BTT SKR Pico There are 3 sets of holes for connecting the design to the Voron clip to allow some adjustment in the direction perpendicular to the DIN rail.

Hardware list:

- M2x10 SHCS - 2 Used to secure this design to the Voron DIN clip - M2x8 BHCS - 4 Used to secure the main to this design If you have any questions or suggestions for improvement, please let me know.
