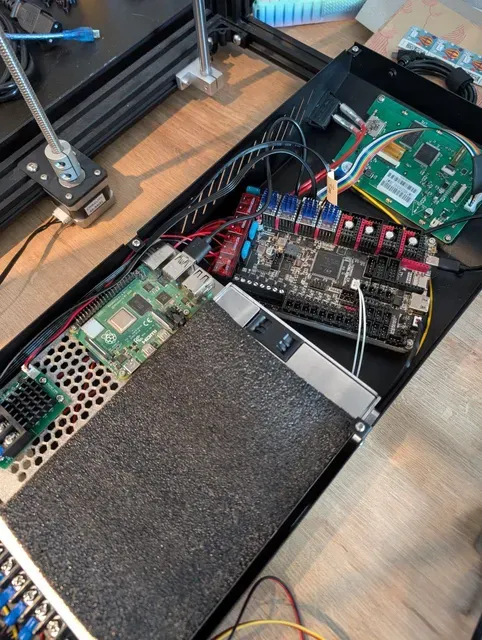

Ender5Plus Octopus Pro v1.1 Electronics Enclosure Adapter

I've recently upgraded my Ender 5 Plus to a Mercury One.1 and while I don't have a proper electronics enclosure yet, I wanted to have all my electronics mounted in the original case for now.

In order to have my Raspberry Pi and the Octopus Pro in the enclosure, I had to find an orientation which would allow to plug a USB-C cable into the Octopus board. This mount reuses some of the original controller and relay mounting points. It has space for 4 M3 heatset inserts in the corner posts.

BOM:

- 4 M3 Heatset inserts - 4 M3 screws for attaching to the enclosure (reuse the original screws) - 4 M3-6 screws for mounting the Octopus Pro The mount for the relay and the Pi can be found here .

I've originally printed the mount with too small holes for the standoffs, which I then just drilled out. I've since updated the model, but I haven't reprinted it, since this is only a temporary solution for me.
