Welcome to XOL-Metrix UHF for the SV08

###### Please post your Makes ###### Please like this, download and post the make if you built it It helps us makers with feedback and gets us some Prusa meters as most people don't pay it forward

Feel free to help my projects continue https://ko-fi.com/gcodegearhead

########################################################################### # Intro ###########################################################################

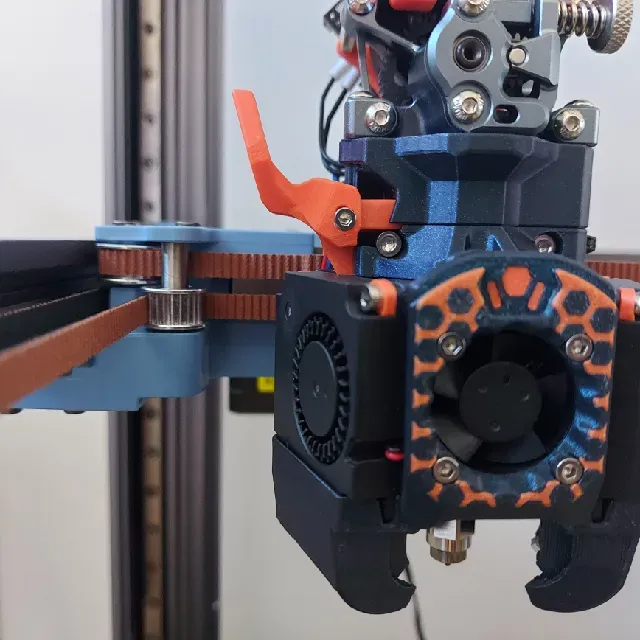

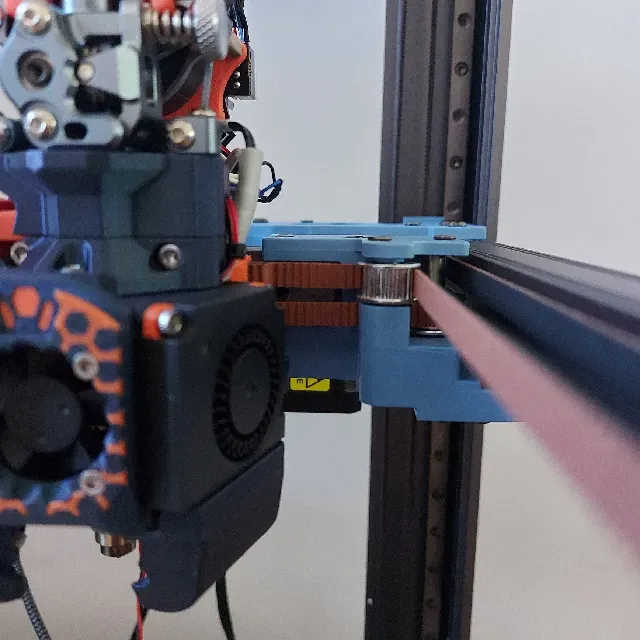

I wanted an XOL for the SV08 but I did not want to give up a lot of bed space for it. I also needed a filament cutter and found the XOL Metrix by SouthAsh1.

I modified a few files to be able to get this to fit nicely on the SV08, giving up no tangible bed space in any direction. The changes I present are directly applicable to the SV08 but see no reason for them not to be adapted to another Voron Style printer.

This is for the following setup. There are a number of mounts available, message me or comment and I'll mod them as people need them.

- BTT EBB36 - BTT Eddy Coil - Phaetus Rapido UHF. - FYSTEC CNC Sherpa Mini You can pair this with my Low Rider MMU https://www.printables.com/model/1314513-low-rider-mmu

You can pair this with my spool holder https://www.printables.com/model/1193075-4-5-spool-filament-dispenser-sv08-coprint-config-t

You can pair it with my Park Blob Poop for the SV08 https://www.printables.com/model/1328600-park-blob-poop-sv08-pbp-sv08

########################################################################### # Update Log ###########################################################################

20-OCT-2025 Added Filament Depressor Arm

04-SEPT-2025 Limit Switch Version added

14-AUG-2025 Added standard Eddy mount with new clearances

13-AUG-2025 Updated Mesh Min & Max due to move out of range error.

12-AUG-2025 First release

########################################################################### # Assembly Instructions ###########################################################################

Follow the assembly guide in the original GitHub, it is well explained there, just swap my parts out for theirs. This toolhead will use the normal stealth burner LED config.

Lastly you will need to setup your new toolhead, re calibrate it and calibrate EDDY_NG. The scope of this is outside this printable, refer to the following pages

- Toolhead - EDDY_NG - BTT EBB36 - Katapult Bootloader ########################################################################### # Print / Printer Settings ###########################################################################

- Print these parts with the STD VORON spec or stronger. - Use ABS or ASA for all parts and calibrate your shrinkage!! . Klipper Changes

It goes unsaid, check these macros before you use them. I take no responsibility for the consequences of you not doing your homework.

[quad_gantry_level] gantry_corners: -60,-10 410,420 points: 20,5 20,300 340,300 340,5 x_offset: 0 y_offset: 24 [bed_mesh] speed: 150 horizontal_move_z: 2.0 mesh_min: 20,25 mesh_max: 340,300 probe_count: 15,15 [gcode_macro CLEAN_NOZZLE] gcode: {% if printer.toolhead.homed_axes != "xyz" %} G28 {% endif %} G90 G1 X320 Y357 Z0.5 F9000 M117 Nozzle heating... M109 S200 G91 G1 Z10 F300 G90 M106 S255 M104 S130 M117 Clean nozzle G1 X327.0 Y357.0 F9000 G1 Z0.2 F300

; Initial straight wipes at Y=357 G1 X348.0 Y357.0 F4500 G1 X330.5 Y356.0 F4500 G1 X345.5 Y358.0 F4500 G1 X330.5 Y357.0 F4500

; Zigzag pattern repeat 1 G1 X327.0 Y356.0 F4500 G1 X330.5 Y358.0 F4500 G1 X334.0 Y356.0 F4500 G1 X337.5 Y358.0 F4500 G1 X341.0 Y356.0 F4500 G1 X344.5 Y358.0 F4500 G1 X348.0 Y356.0 F4500

; Zigzag pattern repeat 2 G1 X327.0 Y358.0 F4500 G1 X330.5 Y356.0 F4500 G1 X334.0 Y358.0 F4500 G1 X337.5 Y356.0 F4500 G1 X341.0 Y358.0 F4500 G1 X344.5 Y356.0 F4500 G1 X348.0 Y358.0 F4500

; Zigzag pattern repeat 3 G1 X327.0 Y356.0 F4500 G1 X330.5 Y358.0 F4500 G1 X334.0 Y356.0 F4500 G1 X337.5 Y358.0 F4500 G1 X341.0 Y356.0 F4500 G1 X344.5 Y358.0 F4500 G1 X348.0 Y356.0 F4500

M400 M117 Finished cleaning M109 S130 M107 G91 G1 Z10 F300 G90 CENTER

########################################################################### # BOM ###########################################################################

Follow the BOM in the original links.

***might add other specific stuff if needed later

Parts QTY Info

/ / /
