Sovol SV08 Holder for Creality Nozzle Wiper Brush

This part is designed to replace the SV08's nozzle wiper & touch sensor block, with a holder for the creality Nozzle wiper pads.

NOTE: This is only useful if you don't use the original touch sensor, like when using the eddy bed sensor on mainline.

It's intended for these kinds of brushes: https://www.3djake.uk/creality-3d-printers-spare-parts/nozzle-wiper-adhesive-tape (Creality Nozzle Wiper Adhesive Tape, K2 Plus/K2 Pro/K2)

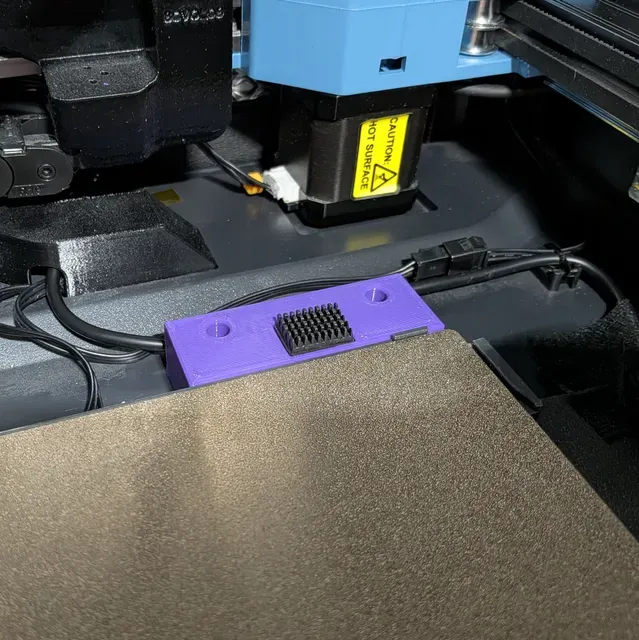

These pads seemed a good bit bigger and more robust than the original SV08 pad, and you can easily buy a pack of 5, so that's what I used. This holder is designed to just fit directly where the original block was, using the same screws. It features an indent where the nozzle brush sits in, to hold it firm. The nozzle wiper brush pads usually have a sticky backing. I used a clamp to stick it down firm for a while before using, to ensure good adherance.

I've attached the STEP in additional to STL file for easier editing where needed. You'll probably want to print in something with a little more heat resistance than PLA. I just printed in PETG.

Here's the nozzle wipe macro I'm using with this block and brush: WARNING: Go careful if re-using this, or if re-using existing code. You'll want to calibrate the positioning on your specific machine to prevent crashing!

[gcode_macro CLEAN_NOZZLE] gcode: {% set cleantemp = params.CLEAN_TEMP|default(200)|int %} {% if printer.toolhead.homed_axes != "xyz" %} G28 {% endif %} G90 G1 X348 Y0 Z0.3 F9000 M117 Nozzle heating... M109 S{cleantemp} G91 G1 Z10 F300 G90 M106 S255 M104 S130 M117 Clean nozzle G1 X300 Y362 F9000 G1 Z1.8 F300 G1 X326 F4500 G1 Y362 X312 G1 Y362 X326 G1 Y362 X312 G1 Y362 X326 G1 Y362 X312 G1 Y362 X326 G1 Y362 X312 G1 Y362 X326 G1 Y362 X312 G1 Y362 X313 G1 Y358 X312 Z5 G1 Z1.8 G1 Y362 X312 G1 Y358 X314 G1 Y362 X314 G1 Y358 X316 G1 Y362 X318 G1 Y358 X320 G1 Y362 X322 G1 Y358 X324 G1 Y362 X326 G1 Y358 X326 G1 Y362 X312 G1 Y358 X314 G1 Y362 X314 G1 Y358 X316 G1 Y362 X318 G1 Y358 X320 G1 Y362 X322 G1 Y358 X324 G1 Y362 X326 G1 Y358 X326 G1 Y362 X312 G1 Y358 X314 G1 Y362 X314 G1 Y358 X316 G1 Y362 X318 G1 Y358 X320 G1 Y362 X322 G1 Y358 X324 G1 Y362 X326 M400 M117 Finished cleaning M107 G91 G1 Z10 F300
