Citroen air freshener to 17mm ball mount for Citroen c3 (2015)
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY
- Можно печатать, изменять и использовать в коммерции — с указанием автора.
- Форматы
- STEPSTL
- 2 Лайки
- 31 Загрузки
- 0 Напечатали
- 0 Комментарии
- 295 Просмотры
Описание

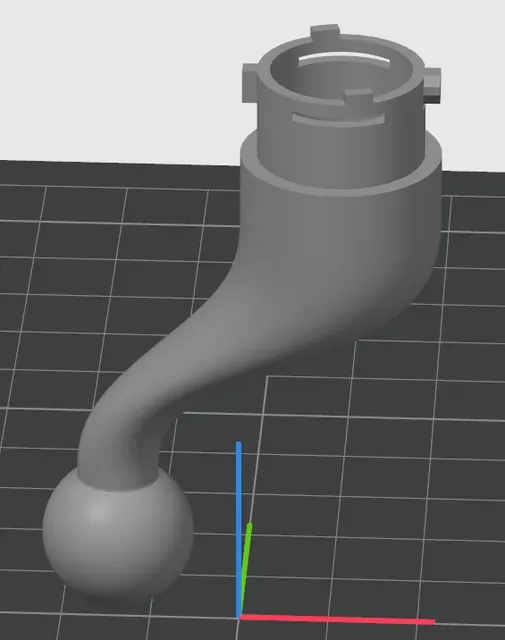

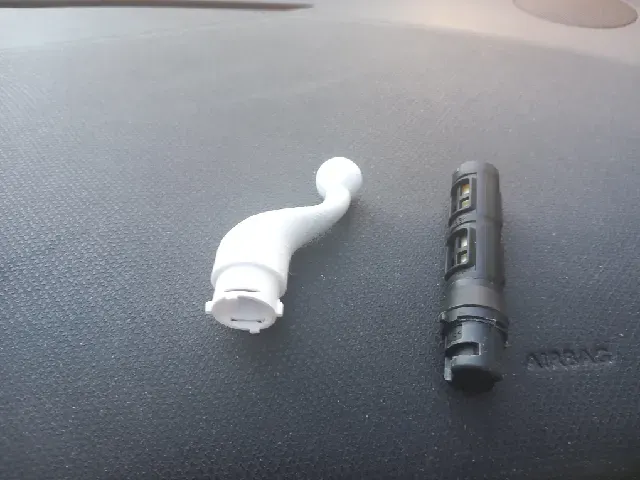

this clever model allows YOU to mount a standard 17mm ball mount on your standard citroen air freshener caspule, Giving it a new purpose: holding your phone.

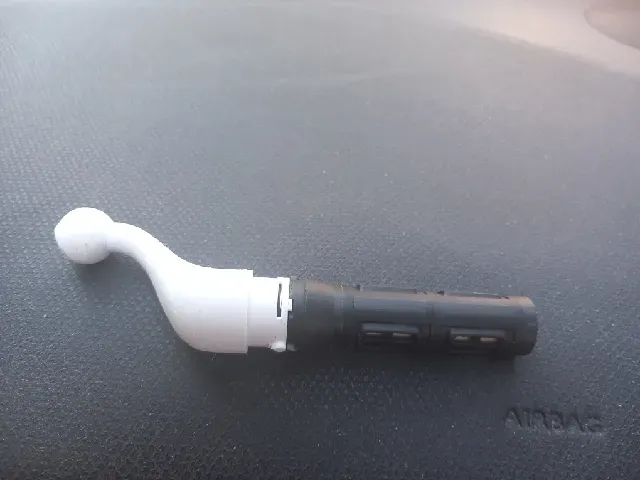

This model mounts to the top of the capsule replacing the caspule cap, giving you a standard 17mm friction ball joint used in many car oriented phone holders. It doesn't reqire drilling holes, tapping or permanent modifications.
-Why use this model insted of a normal vent mount? It's better, it doesn't interrupt airflow from the vent, i don't like vent mount. It gives purpose to an often unused part and having a standard ball joint gives you a wide selection on what holder you want to use.
-Why it only replaces the cap and not the entire airfreshener caspule? Mainly to retain the option to have an air freshener capsule so you aren't sacrificing any feature.
i developed it for my car (citroen c3 2015) it works very well, it keeps the phone stable and out of my drive view while being quick to access for navigation information.
I guess it works for other models that have the same air freshener slot, i don't know, it's for you to test.
I printed it in PLA 100% infill, it keppet up whit the summer heat, to be sure of it's sturdiness i will probably reprint it in ASA or PETG when it brakes.
Похожие модели


Magsafe Ball Joint Mount 17mm Female Centered

17mm ball mount for boom arm

Acura MDX Phone Mount 17mm Ball Joint (2007-2013)

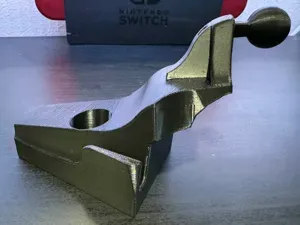

Nissan Titan Phone Mount with 17mm Ball
