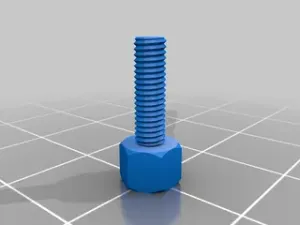

M3X10 Socket Head Screw

Customized version of http://www.thingiverse.com/thing:193647

Created with Customizer! http://www.thingiverse.com/apps/customizer/run?thing_id=193647

Instructions

Using the following options:

outer_diameter = 14

thread_step = .5

drive_diameter = 3

nut_type = normal

thread_outer_diameter = 3

head_type = socket

slot_width = 1

countersink = 2

resolution = 0.5

nut_thread_step = 2

step_shape_degrees = 45

wing_ratio = 1

non_thread_diameter = 0

slot_depth = 2

nut_diameter = 12

facets = 6

inner_diameter = 8

socket_depth = 3.5

socket_facets = 6

nut_thread_outer_diameter = 9

type = bolt

drive_type = socket

texture = exclude

non_thread_length = 0

thickness = 2

head_height = 4

nut_step_shape_degrees = 45

thread_length = 10

head_diameter = 5

nut_height = 6

Category: Parts
