Prusa MK3/MK3S/MK3S+ compact RPI camera bracket

A compact camera mount for the Prusa mk3/mk3s/mk3s+, which allows you to mount a camera on the printer without the need for a tripod or other supports that might require more space than the printer normally takes up. This position, unfortunately, doesn't allow you to spot all print errors, but it still allows you to regularly check the print.

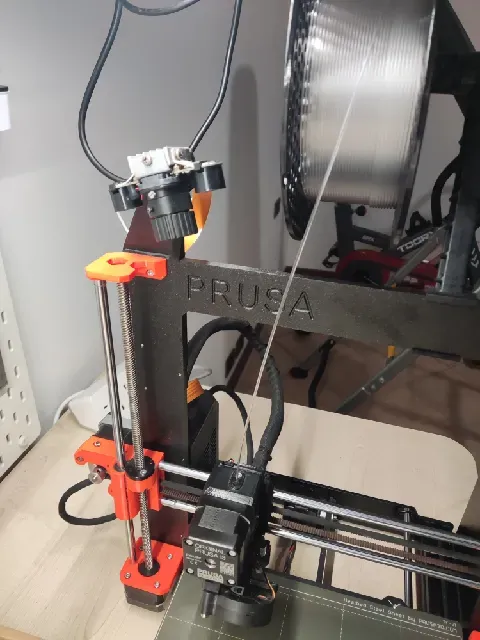

The camera in the photos is not a original Raspberry pi camera, i screwed it in using the led heatsink, for an original camera an adapter is needed.

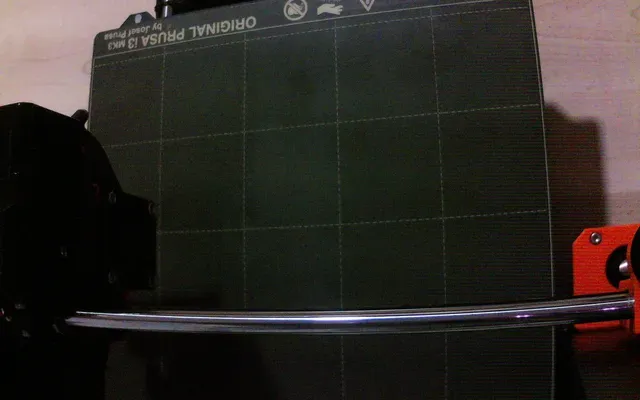

There is a screenshot downloaded from Prusa Connect among the photos. Please note that the lens of this camera is not wide-angle, so with different cameras the framing may be different, but this can still be a good example to show the framing obtained with this bracket.

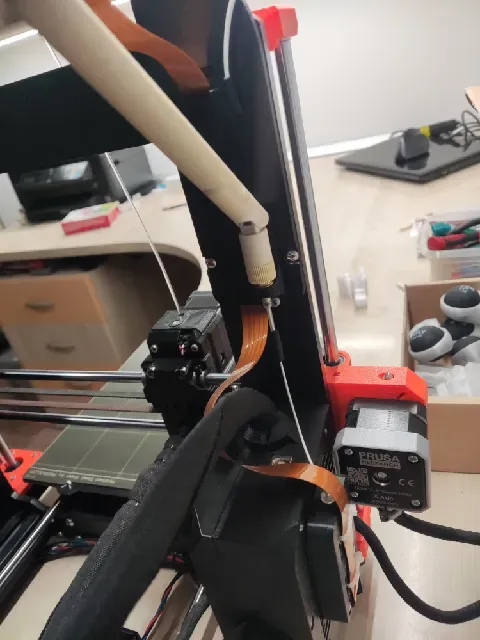

PS: There's also a mount that allows you to install an SMA connector if you want to use external Wi-Fi antennas with your Raspberry Pi.

BOM (without wifi antenna): - x4 M3x8 Screws - x1 RPI CSI Cable 500mm (recomended an original one)

BOM (with wifi antenna): - x2 M3x8 Screws - x2 M3x14 Screws - x1 RPI CSI Cable 500mm (recomended an original one) - x1 RP-SMA to U.FL Connector 200mm
