PG42 Blind Stuffing-Adapter to 5xPG7 Cable Gland/ PG42 Blindstopfen-Adapter auf 5xPG7-Kabelverschraubung

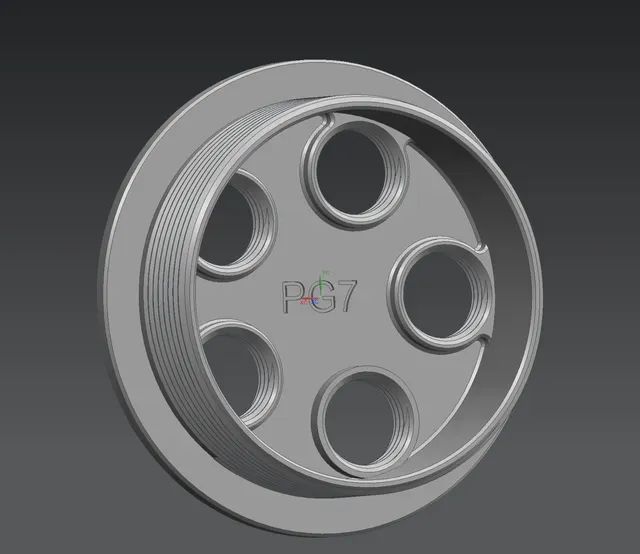

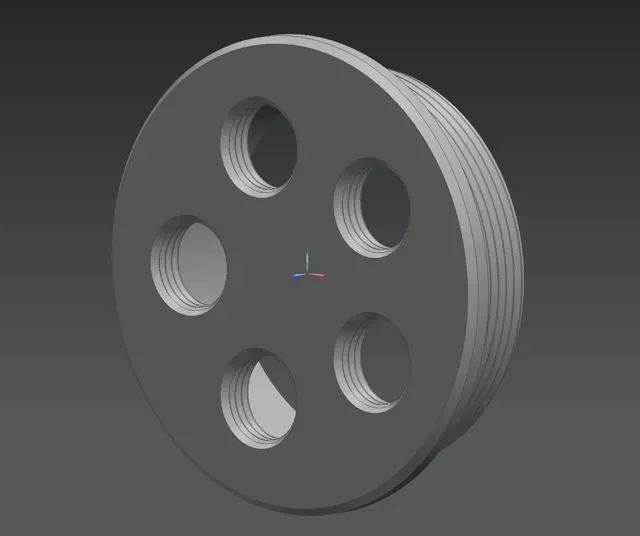

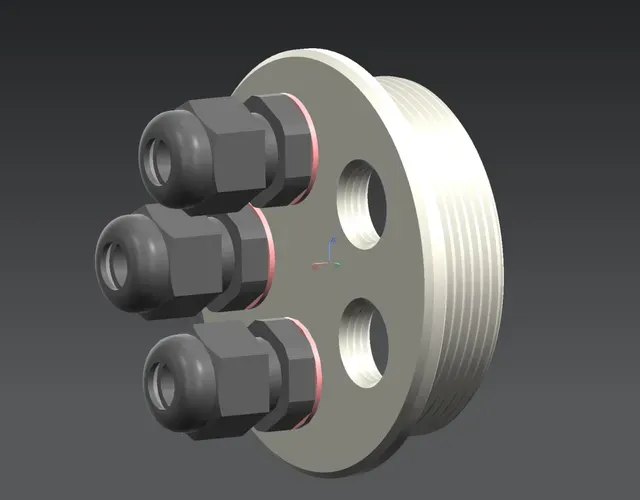

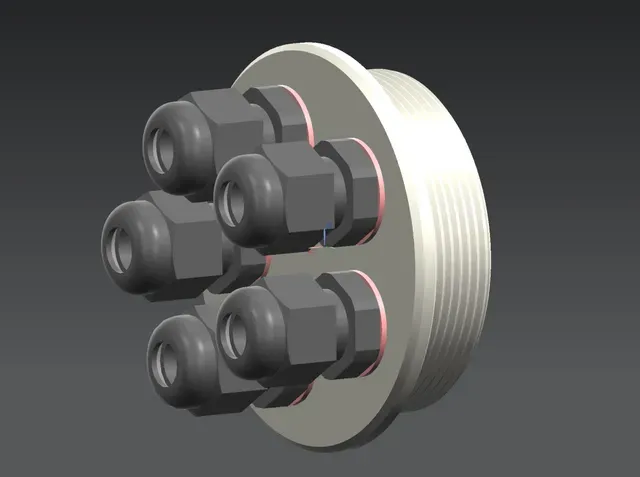

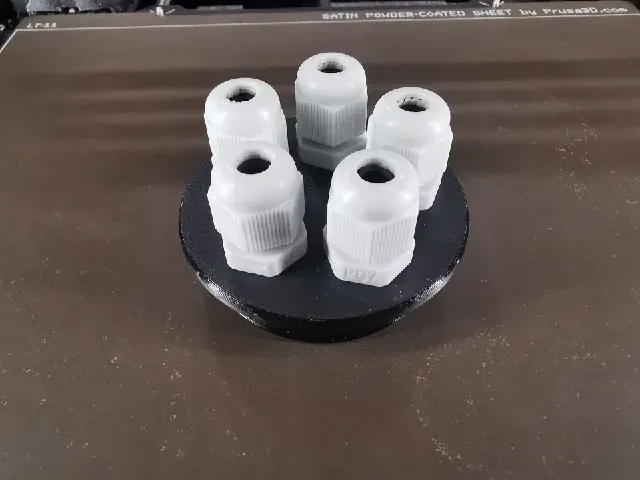

PG42 threaded blind stuffing to close unused PG42-openings in housings. Adapter for (1-5)xPG7 cable glands for smaller diameter wires. Unused PG7-openings can be closed with PG7 blind stuffings with PG7-thread.

[1] Thread types: PG thread (PG42, PG7)

[2] Diameters for PG42 opening: a) threaded hole: 52.5mm / PG thread b) drill hole without thread: 54.0mm Diameters for PG7 openings: c) threaded hole: 11.3mm / PG thread d) wire diameter: 6.0mm

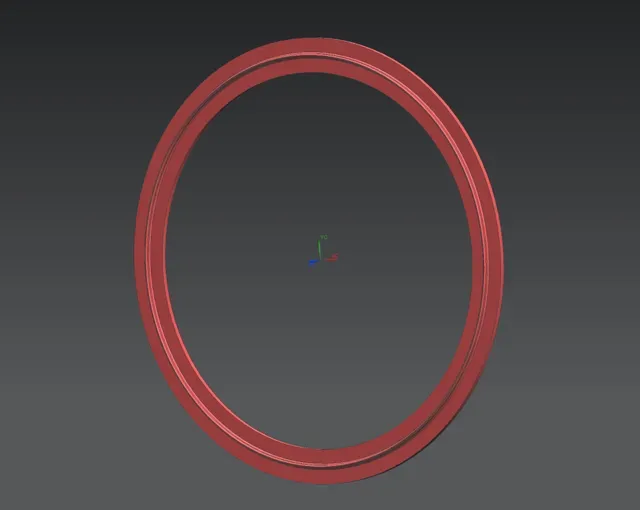

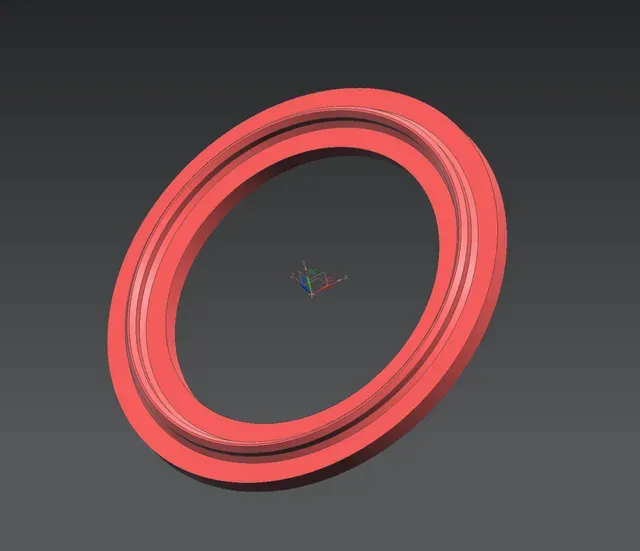

[3] Sealing: An optional TPU-sealing model file is available for PG42. An optional TPU-sealing model file is available for PG7.

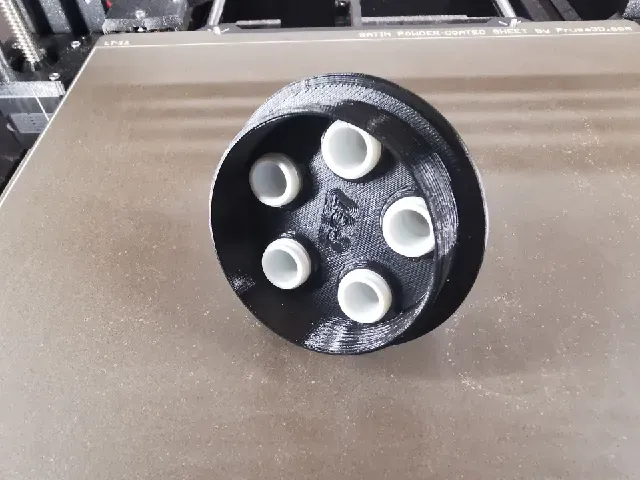

Print Material: PETG (blind stuffings, nut), TPU 95A (sealing) Supports: not required Brim: not required Serial printing (part by part) for better thread quality.

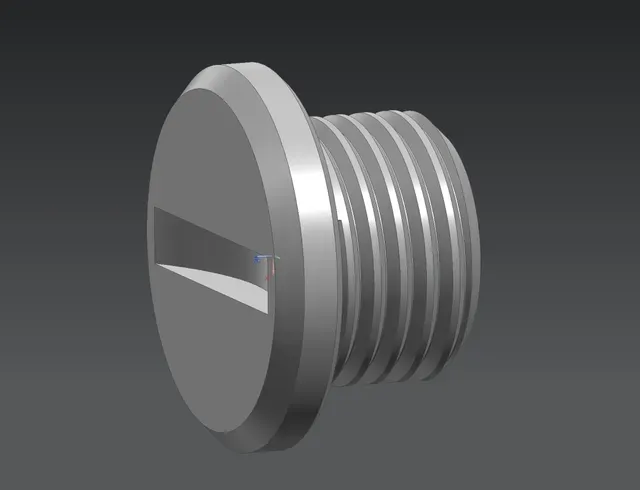

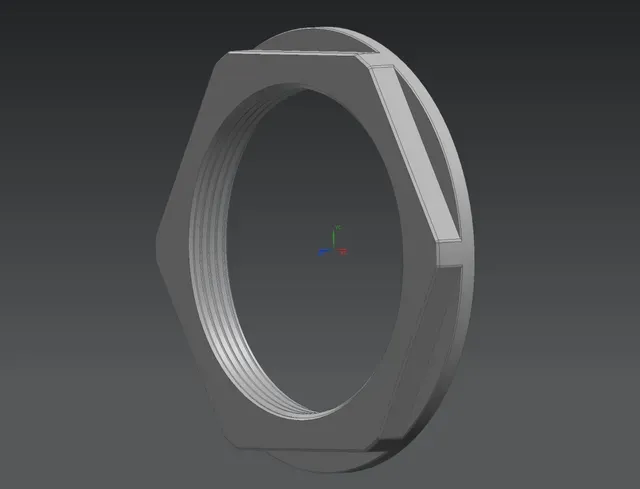

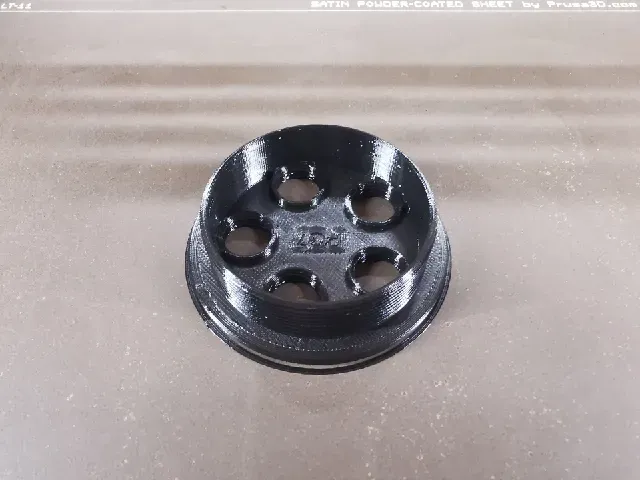

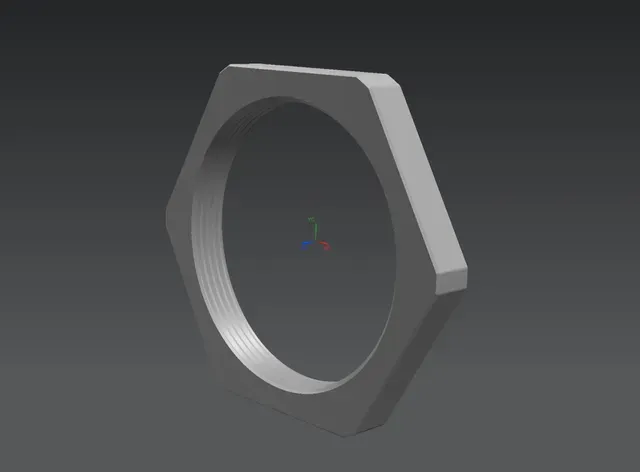

Materials 1x PG42 adapter (PG42 thread) [PG42_BlindStuffing_PGthread_to_5xPG7_PGthread_v00_1.stl] 1x PG42 blindstuffing nut (PG42 thread) [PG42_Nut_PGthread_v00.stl] or [PG42_Nut_PGthread_v10.stl] (1-5)x PG7 cable gland (PG7 thread) [see link] (4-0)x PG7 blind stuffing [PG7_BlindStuffing_threaded_v03.stl] 5x TPU sealing PG7 (optional) [PG7_TPU-Sealing_v01.stl]

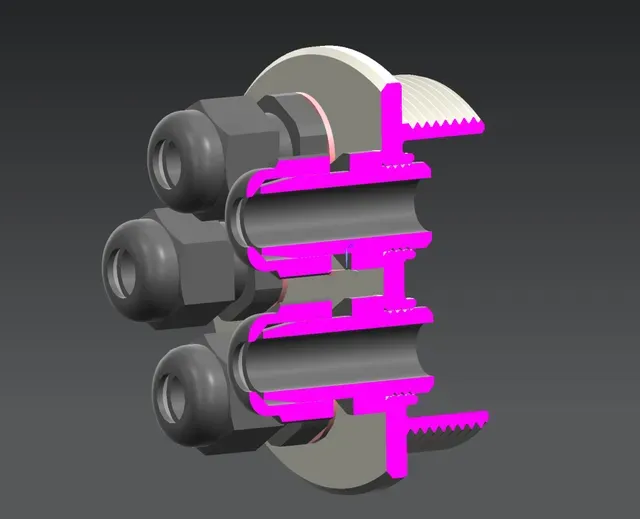

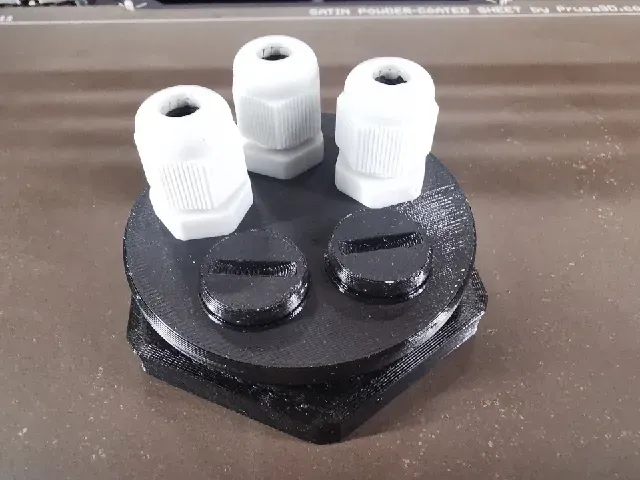

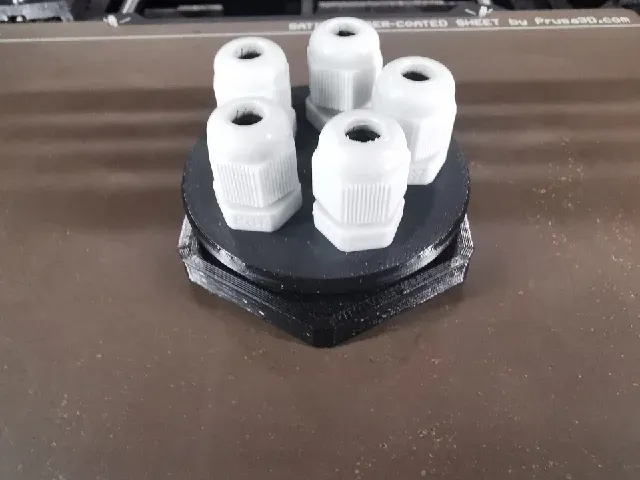

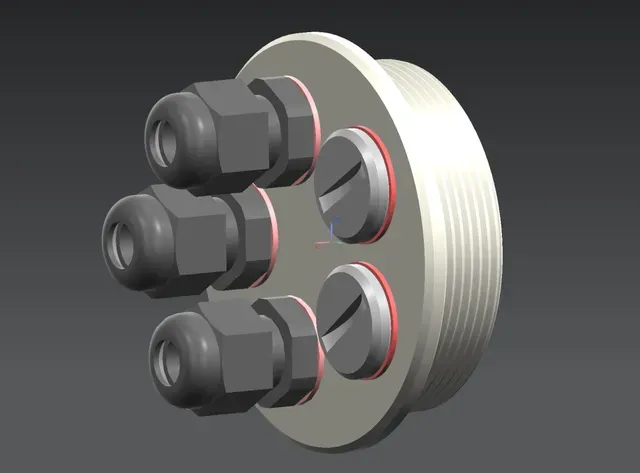

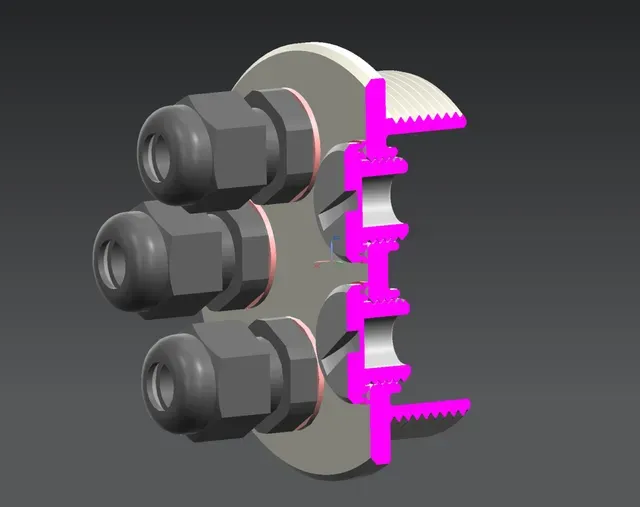

Assembly [1] PG7 cable gland pre-assembly Screw 1-5 PG7-cable glands (PG7-thread) into the PG7 openings of the adapter. Close unused PG7-openings with PG7-blind stuffings. Use optional TPU PG7-sealings if necessary. [2] PG42-adapter assembly Place the pre-assembled PG42-adapter (blind stuffing) in the PG42 opening and secure it with a PG42 nut. Optionally place PG42 sealing on the PG42-adapter before assembly. [3] Cable assembly Guide cable through PG7 cable gland and fix cable by fastening the corresponding cable gland nut.

Hint : Apply some silicone grease on the thread, so it can be easily be assembled and disassembled. (Without grease, the thread tends to wind on and off somewhat “sticky”.)

Links [PG42 Blind Stuffing] (PG42 nuts, PG42 sealing)

[PG7 Blind Stuffing] (PG7 blind stuffing, PG7 sealing)
