PG29 Blind Stuffing-Adapter to 1xPG9 Cable Gland/ PG29 Blindstopfen-Adapter auf 1xPG9-Kabelverschraubung

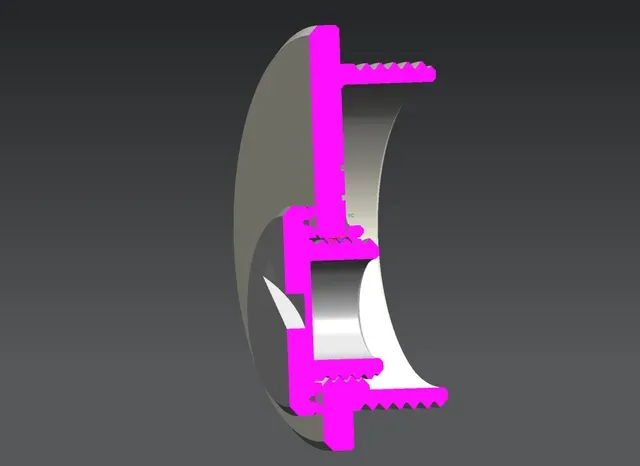

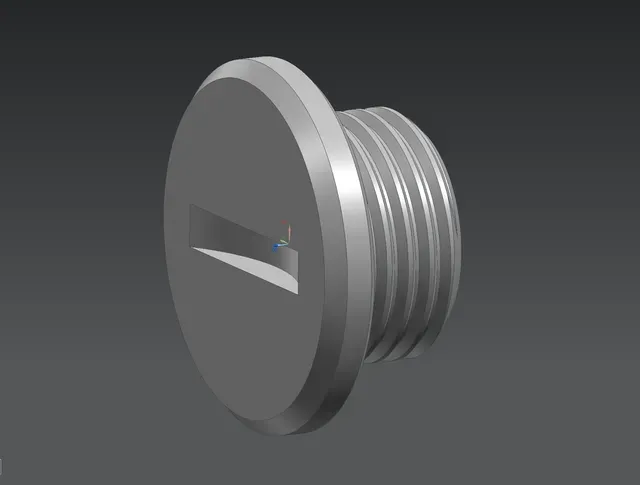

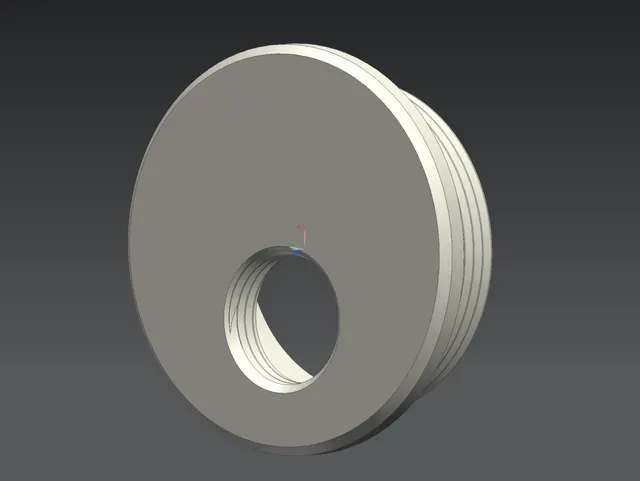

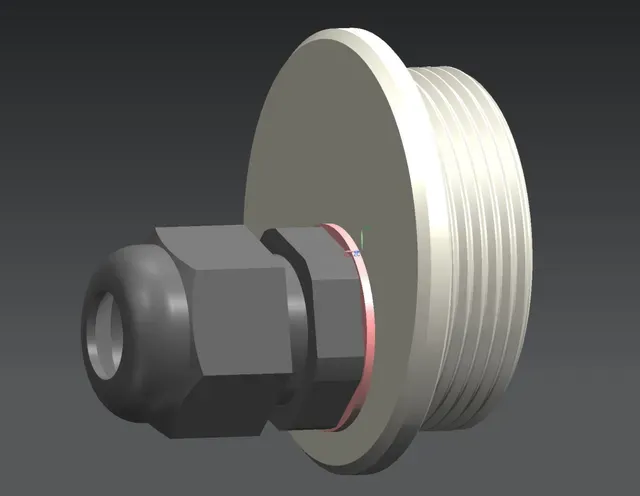

PG29 threaded blind stuffing to close unused PG29-openings in housings. Adapter for 1xPG9 cable gland for smaller diameter wires. Unused PG9-openings can be closed with PG9 blind stuffing with PG9-thread.

[1] Thread types: PG thread (PG29, PG9)

[2] Diameters for PG29 opening: a) threaded hole: 35.5mm / PG thread b) drill hole without thread: 37.0mm Diameters for PG9 opening: c) threaded hole: 13.9mm / PG thread d) wire diameter: 8.0mm

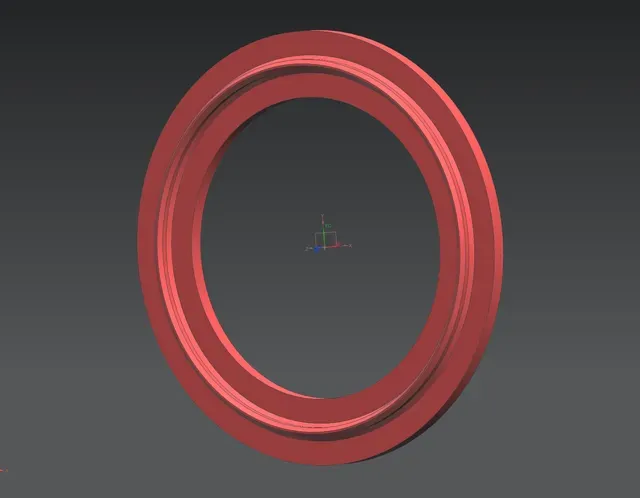

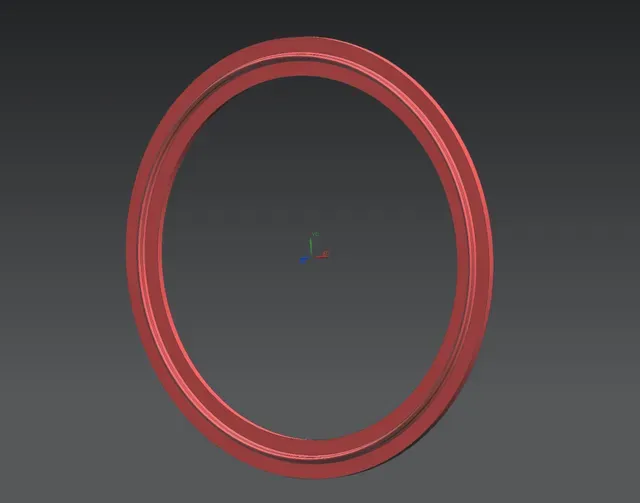

[3] Sealing: An optional TPU-sealing model file is available for PG29. An optional TPU-sealing model file is available for PG9.

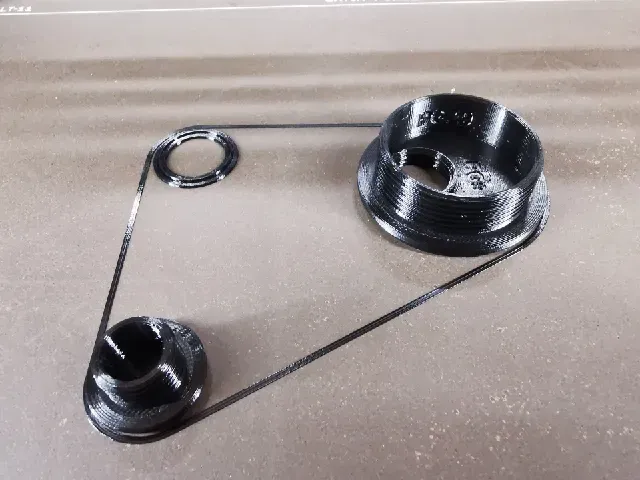

Print Material: PETG (blind stuffings, nut), TPU 95A (sealing) Supports: not required Brim: not required Serial printing (part by part) for better thread quality.

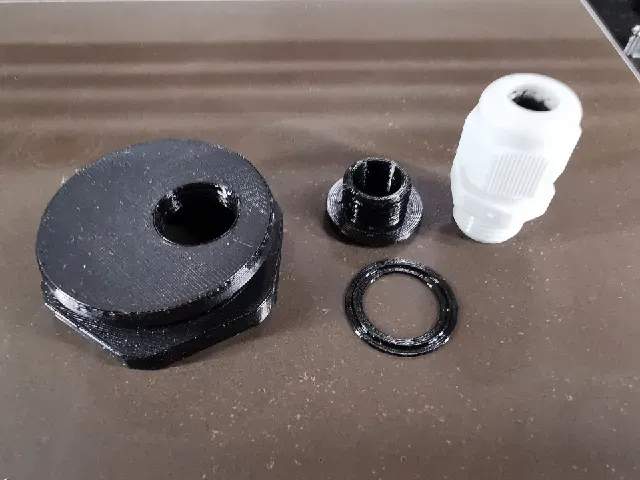

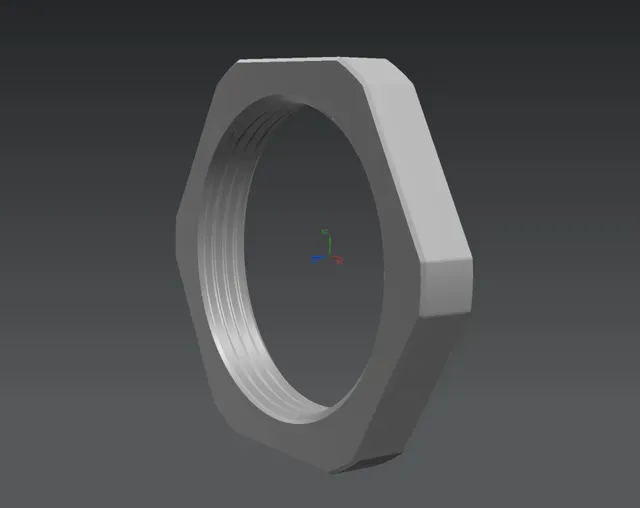

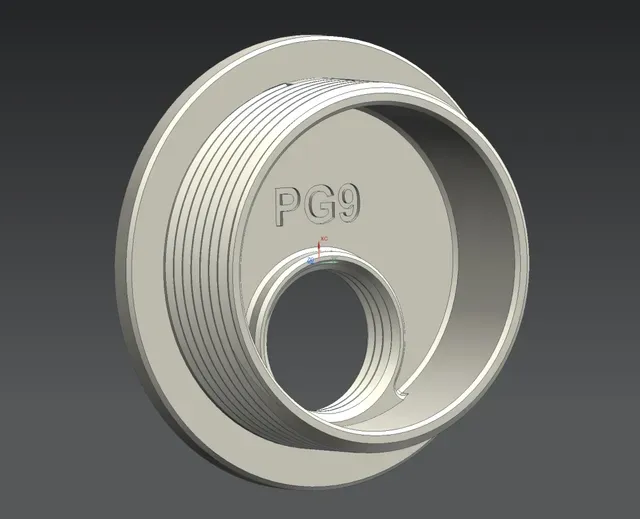

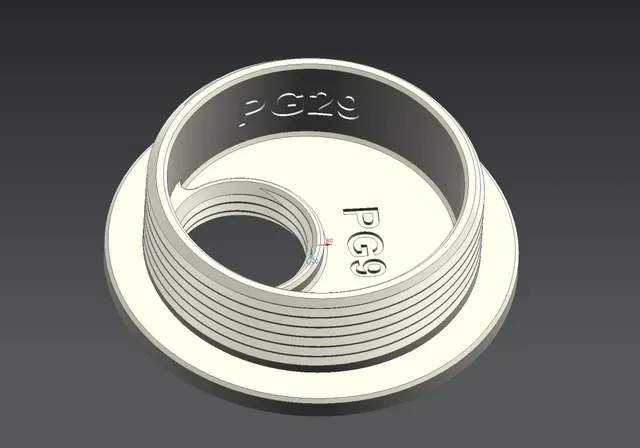

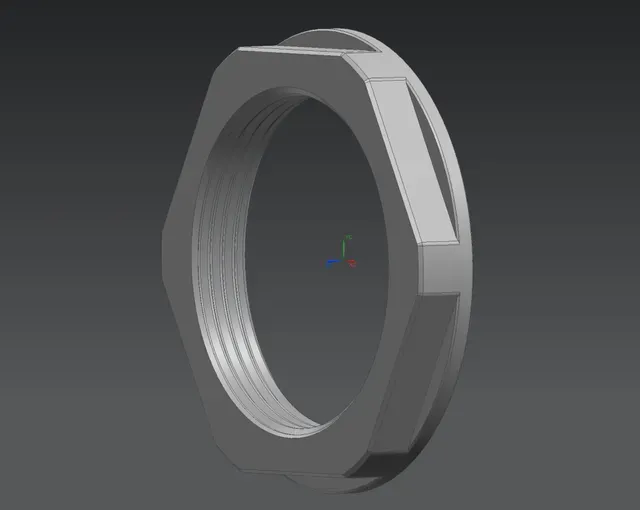

Materials 1x PG29 adapter (PG29 thread) [PG29_BlindStuffing_PGthread_to_1xPG9_PGthread_v00.stl] 1x PG29 blindstuffing nut (PG21 thread) [PG29_Nut_PGthread_v01.stl or [PG29_Nut_PGthread_v11.stl] 1x PG9 cable gland (PG9 thread) [see link] (1-0)x PG9 blind stuffing [PG9_BlindStuffing_PGthread_v00.stl] 1x TPU sealing PG9 (optional) [PG9_TPU-Sealing_v00.stl]

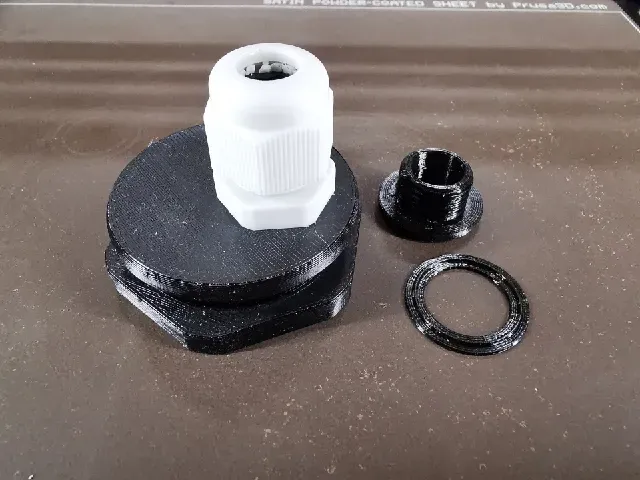

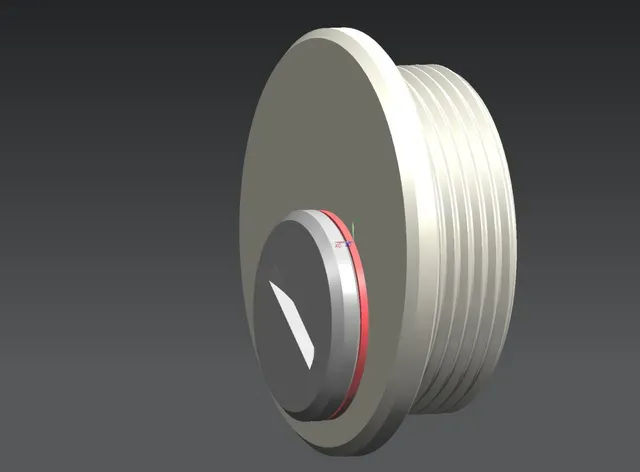

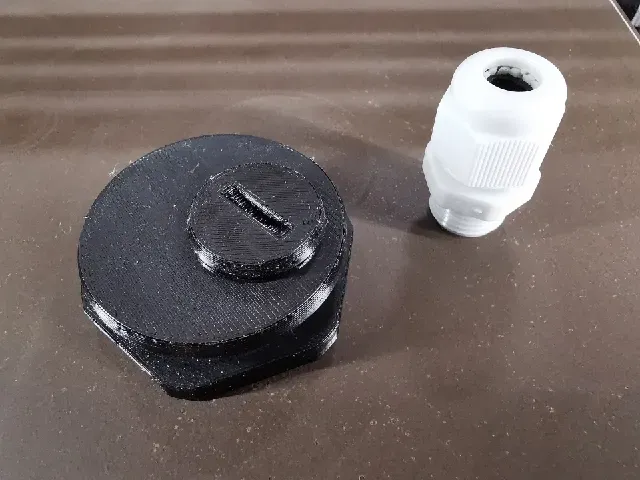

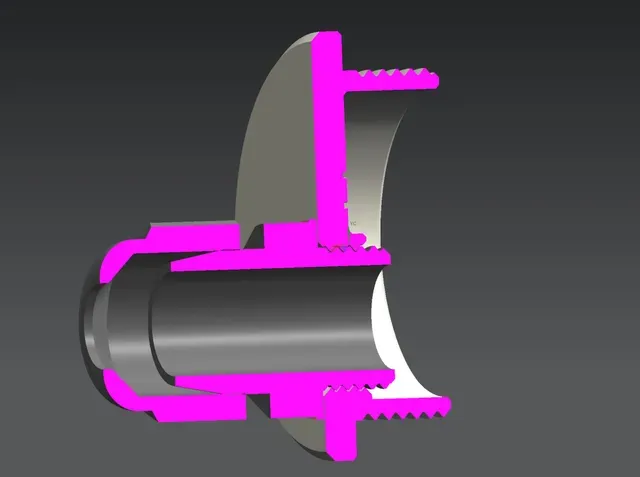

Assembly [1] PG9 cable gland pre-assembly Screw PG9-cable glands (PG9-thread) into the PG9 opening of the adapter. Close unused PG9-opening with PG9-blind stuffing. Use optional TPU PG9-sealing if necessary. [2] PG29-adapter assembly Place the pre-assembled PG29-adapter (blind stuffing) in the PG29 opening and secure it with a PG29 nut. Optionally place PG29 sealing on the PG29-adapter before assembly. [3] Cable assembly Guide cable through PG9 cable gland and fix cable by fastening the corresponding cable gland nut.

Hint : Apply some silicone grease on the thread, so it can be easily be assembled and disassembled. (Without grease, the thread tends to wind on and off somewhat “sticky”.)

Links [PG29 Blind Stuffing] (PG29 nuts, PG29 sealing)

[PG9 Blind Stuffing] (PG9 blind stuffing, PG9 sealing)
