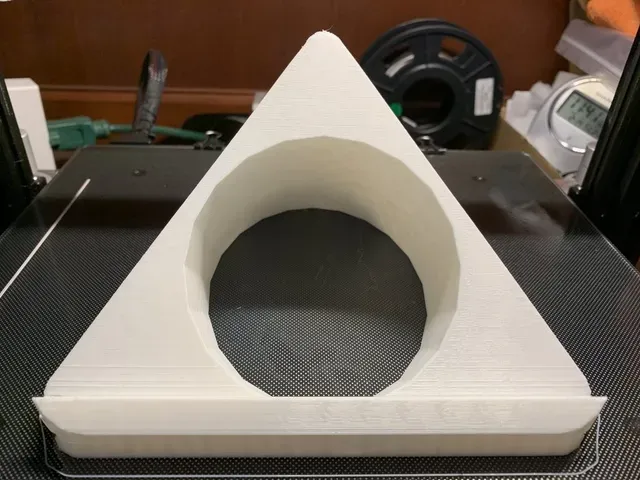

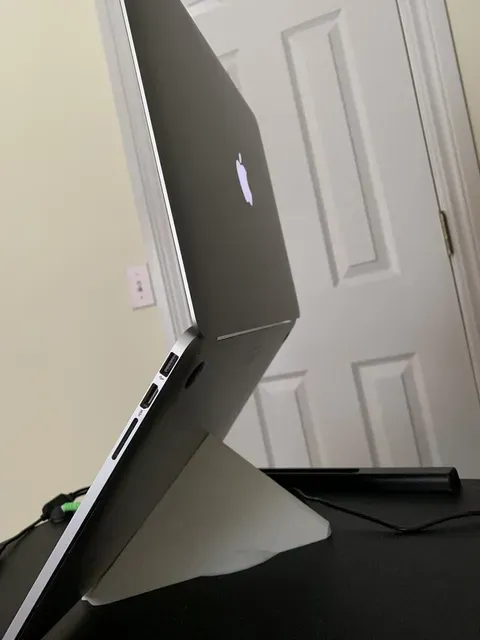

45º Stand for MacBook Pro 15" Retina

A larger stand to accommodate a 15 inch MacBook Pro Retina. Based on idea derived from:

- Macbook Pro Laptop Stand by jgillick , a rework of

- Laptop Display Stand (MacBook Pro) by walter (original idea)

but designed from scratch in Tinkercad.

V2 prints faster and is more economical but v2.1 is more aesthetically pleasing and also sturdier.

Please note the attribution + non-commercial license. Give credit and don't try and make money off my hard work please.

Below are links to the original Tinkercad designs if you need to modify them. Please pass down the CC attrib+non-commecial license if you decide to remix these designs (instead of starting from scratch.)

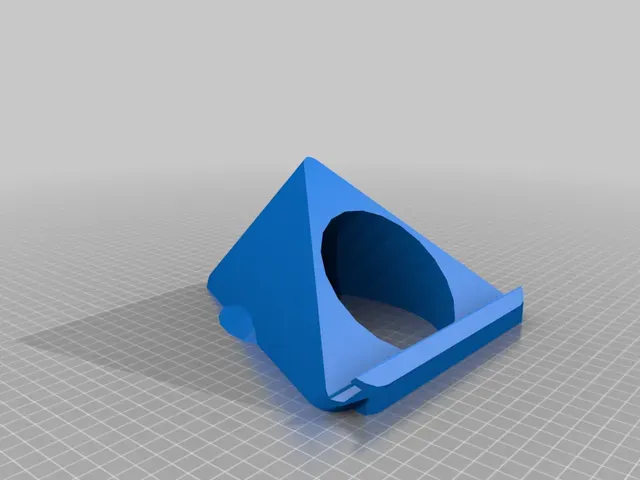

- V2 stand

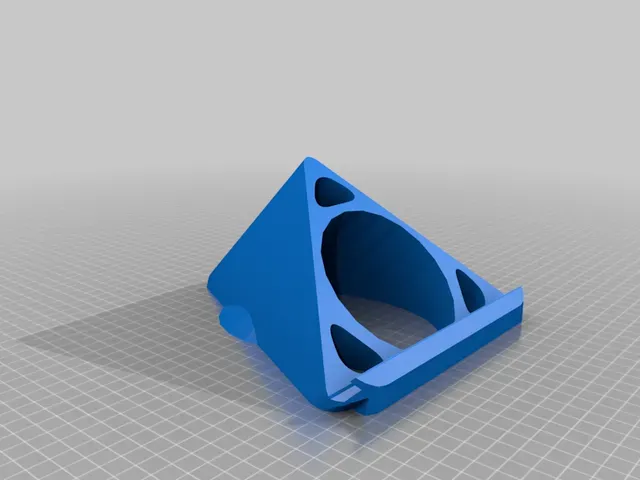

- V2.1 stand

It's so simple to print even I could do it, please post makes! :)

Print Settings

Printer:

Sovol SV01

Rafts: No

Supports:

No

Resolution: 0.3 - 0.32

Infill:

10% zig-zag

Filament:

Sovol 3D PLA White

Notes:

Cura slices a faster print, ~5h40m; Prusa slicer adds another ~2 hrs to that to give you nicer looking inclined walls. I selected ironing for the one horizontal surface just to make sure it looks nice given that it's printed on top of a sparse, 10% infill.

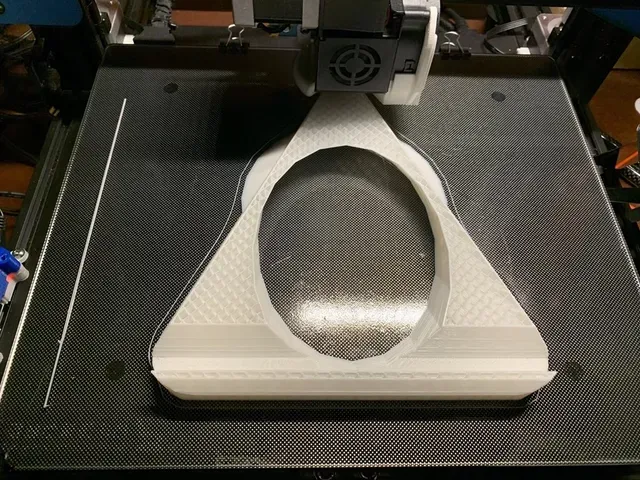

Currently printing, will add photo of final object once done.
