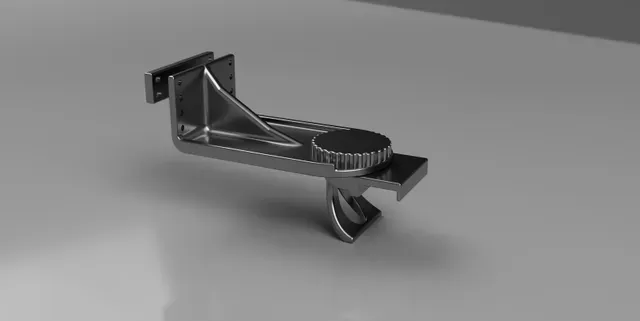

Adjustable Monitor-Top Webcam Mount (Horizontal Rotation)

This is a monitor-top webcam mount with horizontal rotation. It sticks to the top of the monitor using strong double-sided tape (the thick gray type).

The model was originally designed for the DELL S2725QS , but a STEP file is included , so you can easily adapt the mount for other monitors.

The camera is held using the original webcam mount. The stock camera clip is secured from the back with a clamping plate.

Monitor dimensions used for the design:

- Top thickness: 19 mm

- Distance from the top edge to the stand: 30 mm

- Thickness near the stand area: 22 mm

Assembly:

- 4× M3 heat inserts (M3×4)

- 4× M3 bolts (length ~19 mm)

The mount allows you to rotate the camera horizontally to adjust framing without moving the monitor.

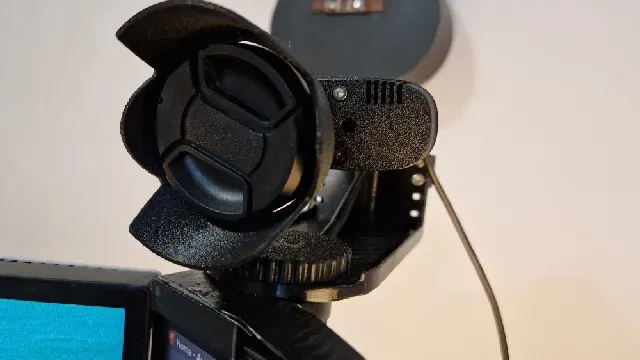

Wide-Angle Lens Upgrade Kit for Logitech C270 (with Microphone Support)

If you want to convert your Logitech C270 webcam to a wide-angle lens while keeping the built-in microphone usable , these are the parts you need to print.

This setup combines several models that work together: lens mount, modified case, focus ring with microphone openings, and an optional monitor mount.

Required printed parts

1. Wide-angle lens hood (37mm) https://www.printables.com/model/1639064-apexel-37mm-wide-angle-lens-hood-51mm-body I used " APEXEL New HD 37MM 0.45x Super Wide Angle Lens with 12.5x Super Macro Lens "

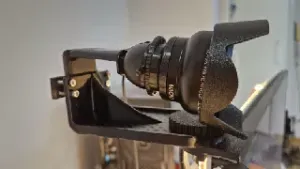

2. Focus ring with microphone holes https://www.printables.com/model/1639115-logitech-c270-focus-ring-with-microphone-holes

3. Case with microphone channel https://www.printables.com/model/1639303-logitech-c270-case-with-microphone-channel-wide-an There are two models

4. Threaded lens adapter https://www.printables.com/model/68402-logitech-c270-improved-wide-angle-lens-mount/files Threaded lens mount and adapter used to attach the lens. The file is named Threaded_Lens_Adapter

5. Adjustable monitor mount https://www.printables.com/model/1639330-adjustable-monitor-top-webcam-mount-horizontal-rot Monitor-top mount with horizontal rotation for positioning the camera.
