Universal Bug Screen Handle (Termopan Replacement)

Is your window screen handle brittle or broken? Most factory-installed handles are made of cheap plastic that fails after a single summer of UV exposure. This 3D-printable replacement is designed to be thicker, more ergonomic, and significantly stronger.

Key Features

- Reinforced Base: Added material at the stress points to prevent snapping.

- Ergonomic Grip: Curved edges for a more comfortable pull compared to the sharp original tabs.

- Universal Fit: Designed for standard aluminum frame profiles (common in "Termopan" / double-glazed systems).

- Low Profile: Fits perfectly between the screen and the window frame without interfering with the closing mechanism.

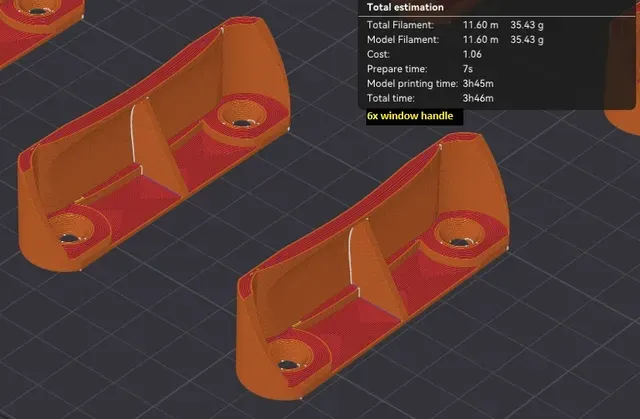

Recommended Print Settings

To ensure this handle lasts for years, please follow these settings:

- Material: PETG, ASA, or ABS .

- Note: Avoid PLA, as it will warp or become brittle when exposed to direct sunlight and heat.

- Wall Loops: 4 perimeters (this is more effective than infill).

- Infill: 40% (since the part is small, higher infill adds negligible time but great strength).

- Supports: Not required.

Installation Instructions

- Remove the remains of the old handle.

- Align the new handle with the existing screw holes or the gasket groove.

- Secure using the original hardware.

- Tip: Do not over-tighten screws to avoid cracking the plastic.
