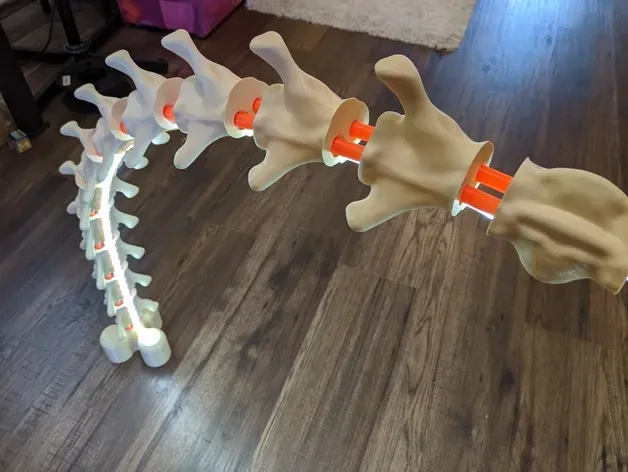

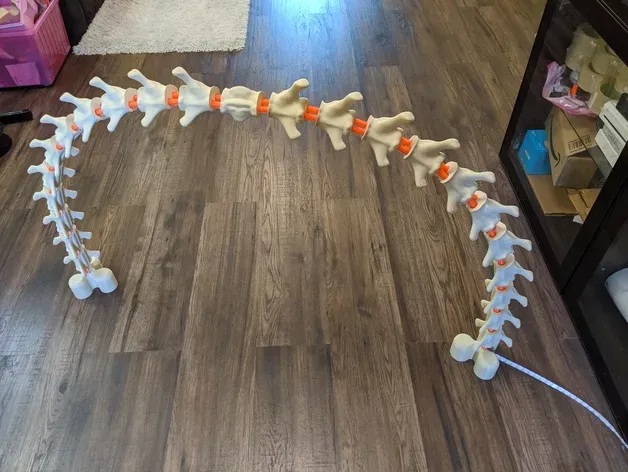

LED bridge lamp - Spine Bone

Easy to print, highly customizable, modular spine bone LED bridge lamp.

https://www.youtube.com/watch?v=dR8N_hhwZwA https://www.youtube.com/watch?v=jW-M4EGwua4

- All elements (except the led strip) are 3D printed. (0% infill, no support, no brims, no rafts) - The assembly is very easy and doesn't require any additional tools - The led strip can be up to 12mm wide. - LED stripe and shade have dedicated channels, so no gluing is needed - The weight elements can be filled with concrete (although anything else will also work) - Print the LED shade with a transparent PLA Required LED stripe:

- Around 2m in length - Up to 12mm wide e.g. SMD 5050 (not coated) led stripe Visit my blog for more cool stuff: https://www.thinker-talk.com/

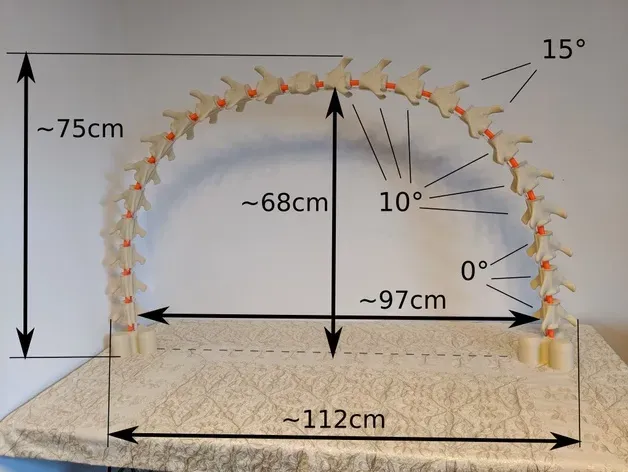

Needed elements: 48x joint elements 1x LED stripe shade 2x foot 6x weight elements 6x 0° bone elements (1) 4x 15° bone elements (2) 12x 10° bone elements (2) 1x top bone element

(1) count depends on the wanted height (2) any combination of 10° and 15° is possible. The sum must be 180°.
