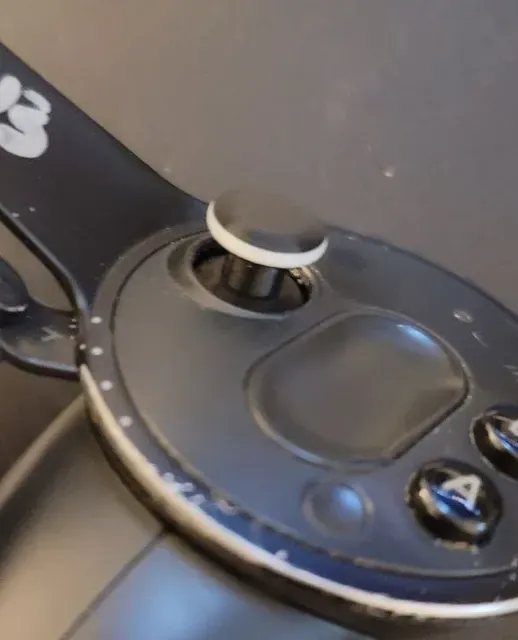

Index Controller Stick Fix (If you cant run/turn max speed anymore)

Replace your control sticks for your index controller if you can no longer push to maximum. The stem is smaller, allowing more movement.

Print in PETG/PLA with supports 0.08mm resolution and 100% infill and the head down or the head up.

If you print it head down, youll need to sand it. Head up should be fine on well tuned printers.

To install:

- Use a spudger to pop the plate off of the controller.

- Hold the plate nearby to avoid having to unplug the cable.

- Pull the existing stem off.

- Remove the flex cable for the touch sensor.

- Install the new control stick you printed; push it down until it bottoms out and then tilt it around until it finds a good spot.

- Reinstall the top plate.

note: You will lose the touch sensor on the thumb-stick, this is usually broken on most controllers by the time your having this movement issue though anyway.

UPDATE:

7.21.26 - Adjusted the fit on the stem; adjusted the offset from the switch body.

7.22.26 - Fixed issue where click was inconsistent.

7.24.26 - Improved printability in the upright orientation. Tightened fit to shaft with some reliefs.

7.25.26 - Adjusted fit
