Camera Mounts for Logitech Adaptive Gaming Kit

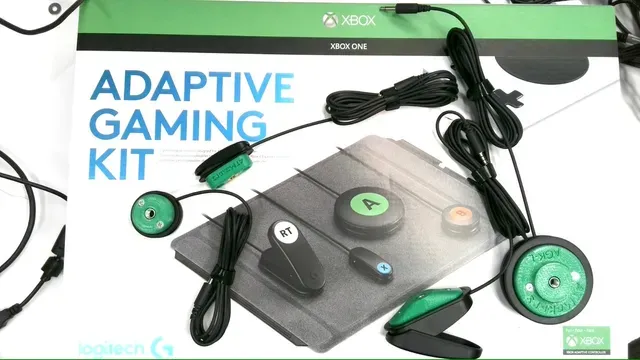

The Adaptive Gaming Kit ( https://www.logitechg.com/en-us/products/gamepads/adaptive-gaming-kit-accessories.html )from Logitech G is an amazing value for those who use Assistive Technology. However, the one thing on our wish list is 1/4"-20 mounts on the bottom so we can use normal camera mounts.

So, in keeping with our other mounts (see http://atmakers.org/2017/02/at-switch-adapters/ ), we've released a full set of 3D printable mounts to connect these great switches to inexpensive mounting options.

There are 6 designs.

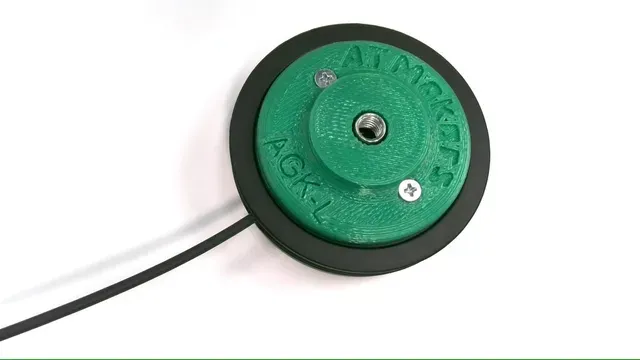

- One for the Large Switch that takes a 1/4"-20 Barbed T-Nut OR a Heat-Press Insert

- One for the Trigger that takes a 1/4"-20 Barbed T-Nut OR a Heat-Press Insert

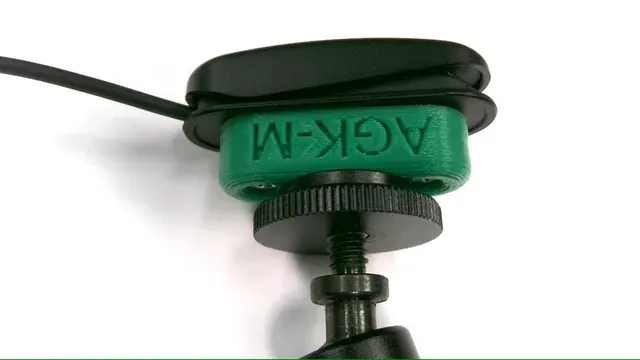

- One for the Medium Switch that takes a 1/4"-20 Barbed T-Nut OR a Heat-Press Insert

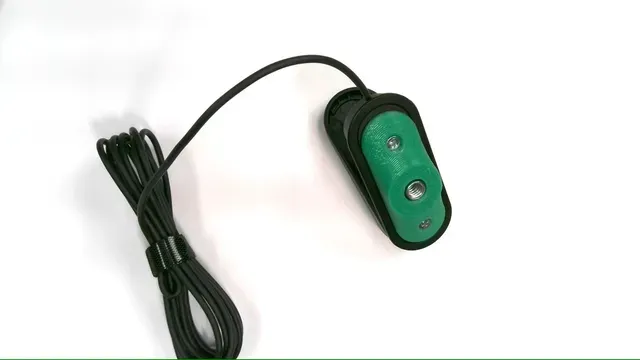

- One for the Medium Switch that ONLY takes a Heat-Press Insert (but is smaller/stronger)

- One for the Micro Switch that takes a 1/4"-20 Barbed T-Nut OR a Heat-Press Insert

- One for the Micro Switch that ONLY takes a Heat-Press Insert (but is smaller/stronger)

If you have a Heat-Press Stand (see https://www.thingiverse.com/thing:3616312 ) I recommend the heat-press inserts for the Medium and Micro Switches. The T-Nuts BARELY fit in them and the plastic gets pretty thin around them.

Feedback is welcome & these may get an update (I think some of the text is upside down), but these are working.

Print Settings

Printer Brand:

FlashForge

Printer: Creator Pro

Rafts:

No

Supports: Yes

Notes:

Turn on supports to make room for the T-Nuts on designs that require them.

Post-Printing

Add Inserts

Learn more here: http://atmakers.org/2017/02/at-switch-adapters/
