90 Degree Frame Bracket 2020 Extrusion

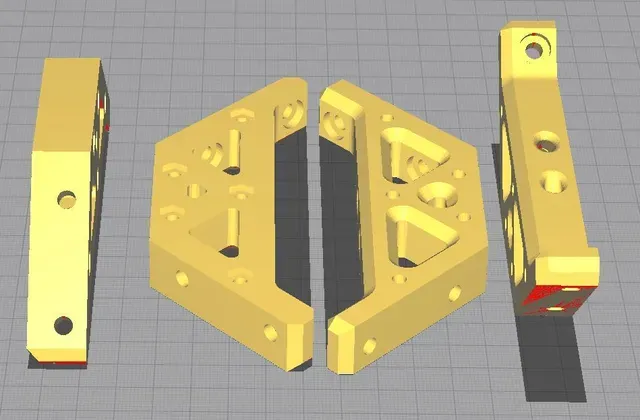

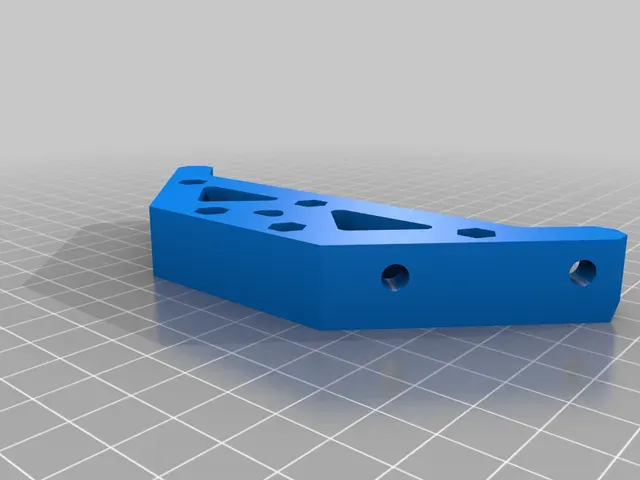

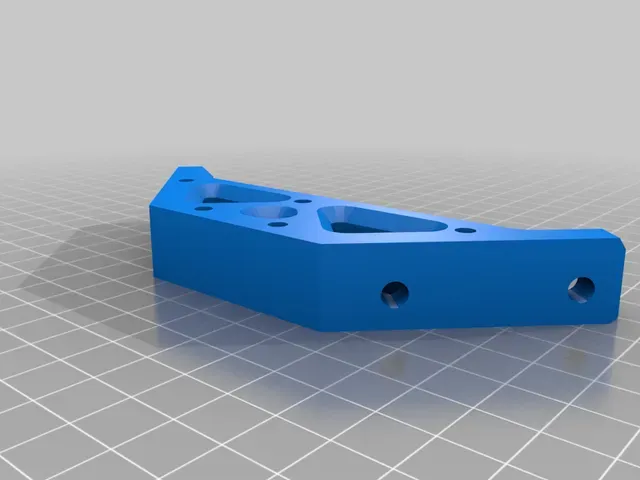

I liked the original because it was much smaller than other versions but I wanted the ability to still mount plexiglass panels to it to make an enclosure. Also reduced the beveled portion inside the frame to reduce filament use while still sitting flush with the exterior face of the frame. The one with the bevel on the outside and the bevel removed from inside the frame with the nuts pressed into it will sit flush with the outside of the frame and allow the screws to pass through to the nut. This uses M4 nuts that will need to be press fit as they are tight.

Mounts to frame with M5x12 Button Head hex bolt & T-Nut.

Edit: Added some variants.

Print Settings

Printer Brand:

Creality

Printer: Ender 5

Resolution:

200

Infill: 15

Filament: GST3D PLA+ Black

Category: 3D Printer Parts
