KP3S — Modular 4010/5015 Fan Shrouds with BLTouch Mount — Kingroon

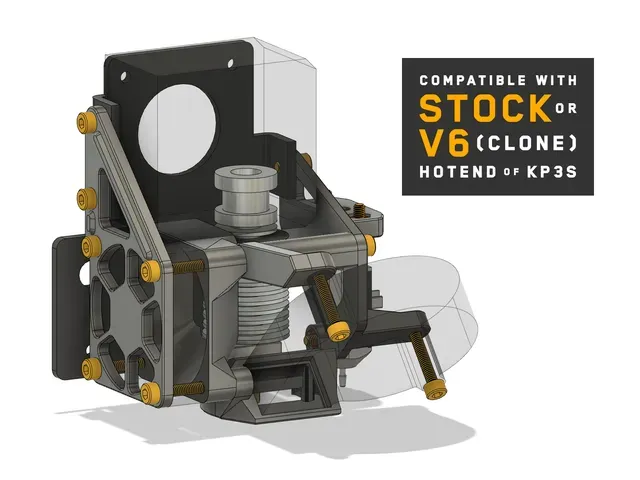

Modular print head ASSY for Kingroon KP3S 3.0 with Titan Extruder and 4010/5015 fans.

Notes on Model Files

Please download just the STL file of the 5015 fan shroud from the “KP3S — Modular 5015 Fan Shroud — Kingroon” page.

This 5015 fan shroud is a remix based on the one of the “Original Prusa i3 MK3S+”. Since the license is different, it is published on the separate page.

Update History

──────────

[ April 20, 2023 ]

A version of the left side panel without a fan grille has been added as an optional part.

“ OPT_[Stock,V6]_LeftPanel-M3_without_4010FanGrill.stl ” “ OPT_[Stock,V6]_LeftPanel-M4_without_4010FanGrill.stl ”

──────────

[ August 6, 2022 ]

An optional part for mounting the ADXL345 accelerometer used with the Klipper firmware has been added. This replaces the regular 4010 fan shroud part.

“ OPT_[Stock,V6]_4010FanShroud_with_ADXL345Mount.stl ”

* M3 tappings and screws (6 or 8mm ×2) are required.

When measuring the resonance frequency of the print head (X-axis), add “ axes_map: y, -z, -x ” to the “adxl345” section in the “printer.cfg” file.

Reference: [Klipper] Configuration reference - adxl345

e.g.

[adxl345] cs_pin: rpi:None axes_map: y, -z, -x # for X-axis

──────────

[ July 24, 2022 ]

The following three types of parts have been updated.

- Left Panel - Right Panel - 4010 Fan Shroud The whole print head position can now be adjusted up and down. (The adjustment range is only 1mm, though.)

The mounting screws on the sides of the print head can now be used with M4 as well as M3. Select the model data according to your KP3S by referring to the file name.

e.g.

“[Stock]_LeftPanel- M3 _with … .stl” “[Stock]_LeftPanel- M4 _with … .stl”

──────────

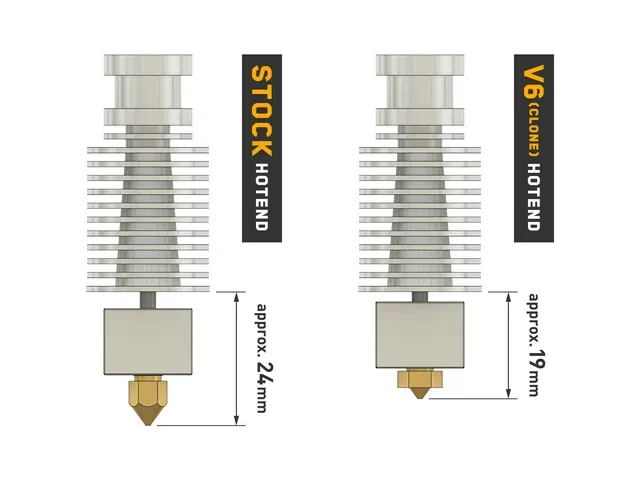

Compatible with Stock or V6 Hotend

Select the model data according to your hotend.

Bill of Materials / Processing

- 4010 Axial Fan ─ ×1 - BLTouch (3D Touch) ─ ×1 (optional) - Mounting Screw ─ M3 or M4 , 6mm ×3 (Depends on your KP3S) - M3 Screw ─ 10mm ×4, 20mm ×4, 25mm ×1, 35mm ×1 - M3 Hex Nut ─ ×6 - M3 Tapping (processing) ─ ×4

BLTouch (3D Touch) Offset from the Nozzle

Reference: [Marlin Firmware] M851 - XYZ Probe Offset

- X_PROBE_OFFSET_FROM_EXTRUDER 28 - Y_PROBE_OFFSET_FROM_EXTRUDER 0 * It is recommended to measure the actual distance after assembling the print head.
