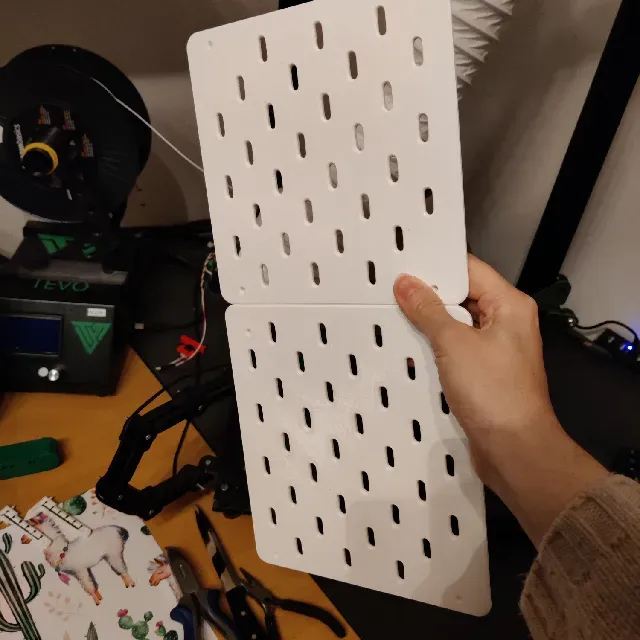

IKEA Skadis Board Side Addition

These Skadis-like plates were designed starting from the Parametric SKADIS Board Generator by Xuis , and added holes and feet. One measures 200mmx180mm, the other measures 180mmx180mm.

I needed to add these boards next to the Printable Skadis for Prusa MK3S by Archipel , and joined them together with similar connectors from the Mini-Montagebrett modular, inspiriert von Skadis by Anymars.

Please notice that I couldn't place the screw holes simmetrically in this parametric generated design: a pair of them are placed as the Printable Skadis for Prusa MK3S by Archipel, that is 20mm and 10mm from the borders, while the other pair is 10mm and 10mm.

(Also, the two sets have different disposition of the hole matrix respect to the borders, so keep this in mind if you want to put them all together).

I am adding the .step file of some connectors. Feel free to modify and adjust them for connecting various Ikea-like sets.
