Ender-3 S1 Pro Space Saver Control Mount

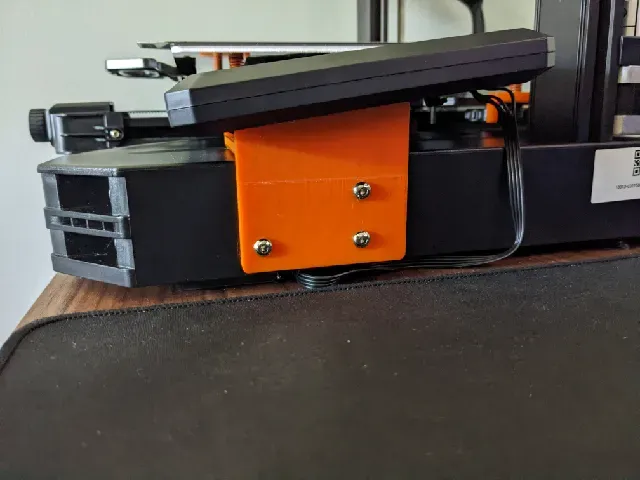

This is a replacement control mount for the Ender-3 S1 Pro with the touch screen. I have not tested this with the non-touch screen, but I don't see why it wouldn't fit. This is a remix of a different mount, but moved in closer to the print bed for extra compactness. I also made the attach mechanism more smooth than the original, where the original it was difficult to slot in, this model features the same ‘ramp’ style slot to make the display latch in easier.

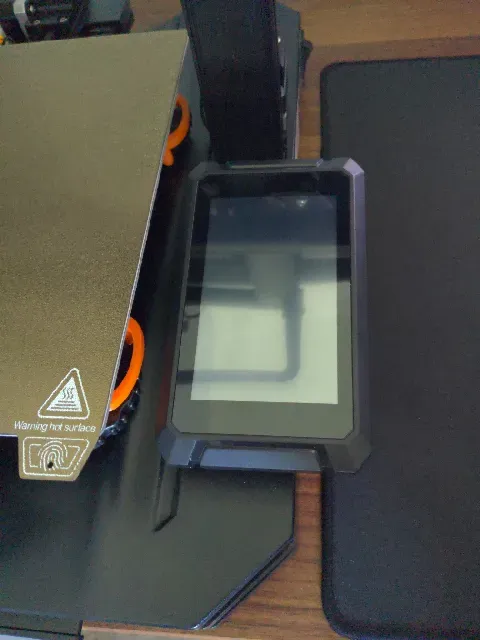

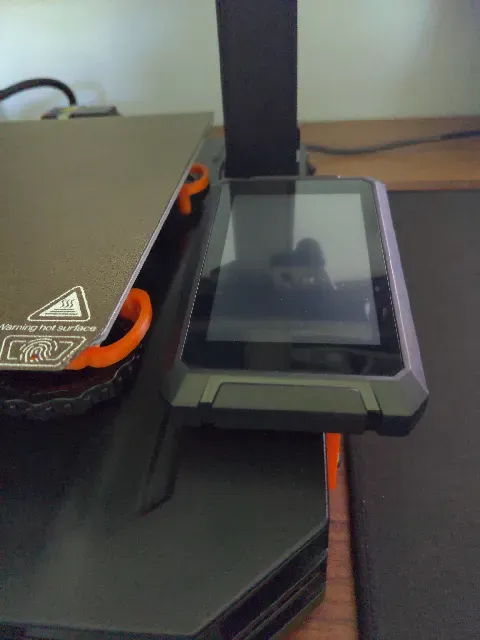

This mount doesn't affect the print bed at all and is clear of the nozzle head as well during all my testing. The display sits underneath the print bed plane, and offset to the x direction from the print bed by roughly 11mm, which is plenty of clearance for the bed and the adjustment wheels.

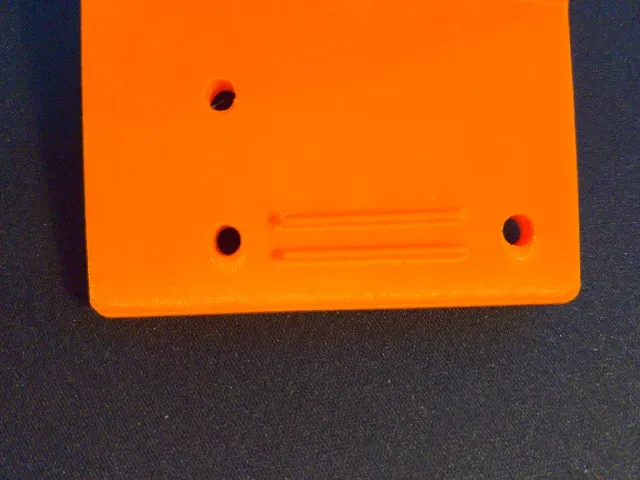

Note: Before printing, check your factory mount and ensure that the ‘notches’ match near the screws. I believe this one can be used with both notch styles, but I have not tested it. If someone leaves the answer in the comment I can update this description. The non-touch screens use a much larger notch system and I believe it should be compatible with this mount, but the touch screen model is NOT compatible with the non-touch screen notch.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 S1 Pro

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

20
