Mxx60 - 60% Gasket Mount Mechanical Keyboard Case

DO NOT DOWNLOAD THIS! Download the R2 instead! It is improved in everyway!

R2 COMING SOONtm

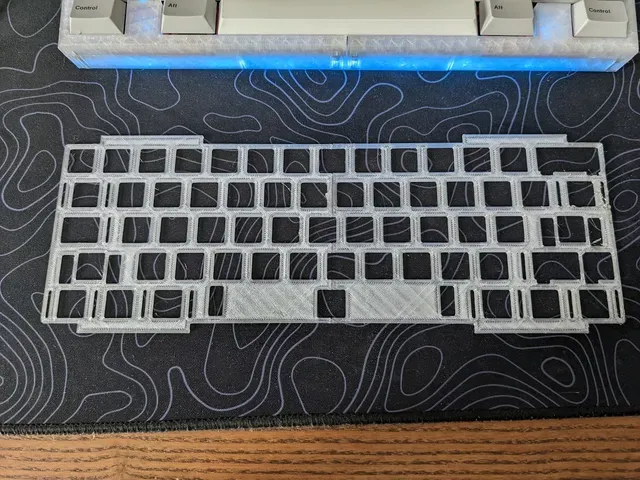

Update: Tightened up the usb port cut out on bottom_1 and fixed wk tops, Fixed plates, fixed wkl top 2

This is a 60% board designed to use standard 60% PCB's. This board is inspired by the HHKB 60% case by Julian, with the same 2-3-2 structure so the case can be assembled with only screws and no need for glue. All of the models are made by myself other than the ramps which are from Jilian's original case. This board is very flexy.

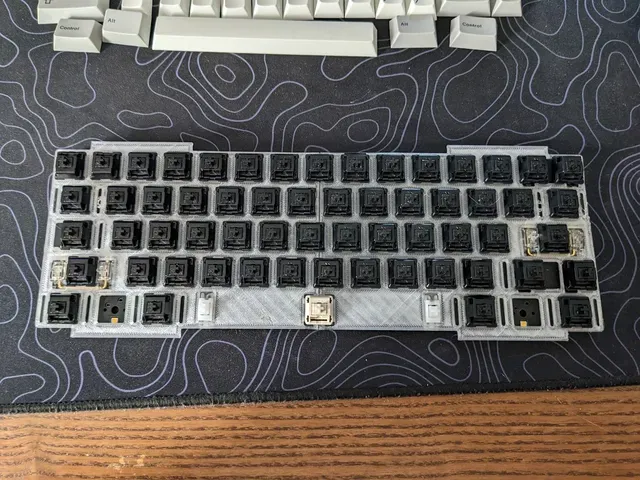

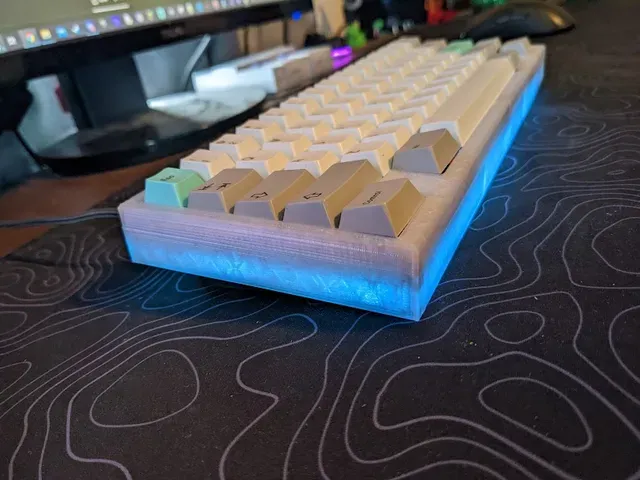

The setup in the photos is made with overture clear PETG, instant60 PCB with RGB underglow, lubed and filmed Mx Blacks, and GMK Modern Dolch Light.

Sound test

To assemble cut the Neoprene down to size and apply to the grooves on the bottom case. Applying the foam to the top causes too much compression.

For this Keyboard you will need:

A standard 60% pcb (recommendations):

Solder: https://cannonkeys.com/collections/pcbs/products/an-cv2-60-pcb

Hotswap: https://cannonkeys.com/collections/pcbs/products/preorder-instant60-pcb (Tsangan)

1/16 in thick Neoprene foam: https://www.amazon.com/dp/B06ZZDMHGX?psc=1&ref=ppx_yo2ov_dt_b_product_details

12 x m3*6 screws: https://www.amazon.com/dp/B0714FLXND?ref=ppx_yo2ov_dt_b_product_details&th=1

4 x m3*12 screws: https://www.amazon.com/dp/B0714FLXND?ref=ppx_yo2ov_dt_b_product_details&th=1
