Hook and Holders for Tiered Wire Shelving

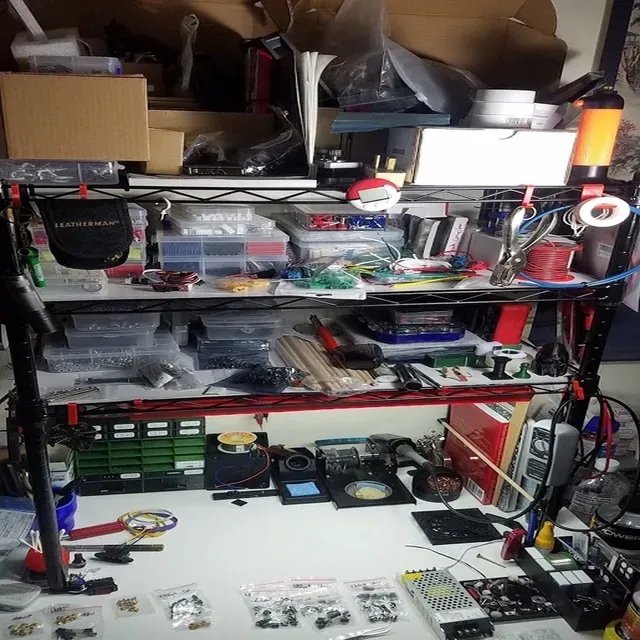

I made these to use on my AmazonBasics 3-Shelf Wire Shelf .

- The tool holder will hold stuff like my pliers, wire cutters, flush cutters, etc.

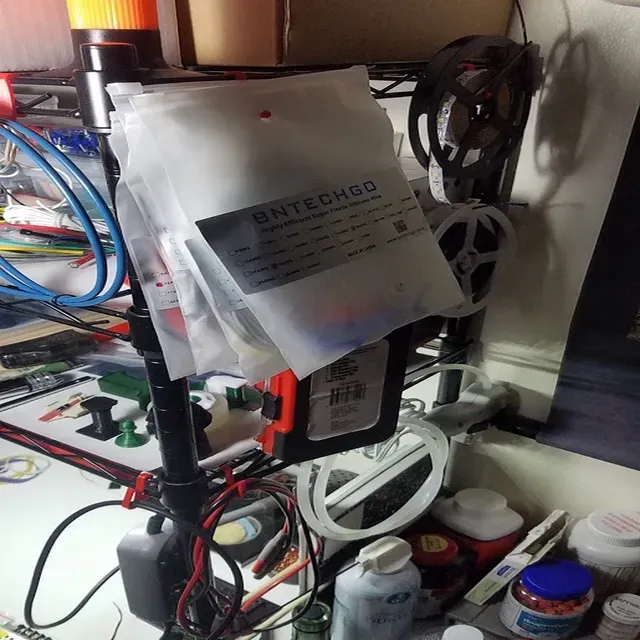

- The wire hook is for holding the wires up from the lights and soldering iron so they can run under the shelve lips.

- The wire_cable hook is for holding the lead wires for multimeter or multiple wires for tools. Its also good for holding onto stuff like unopened superglue packages and tape packages.

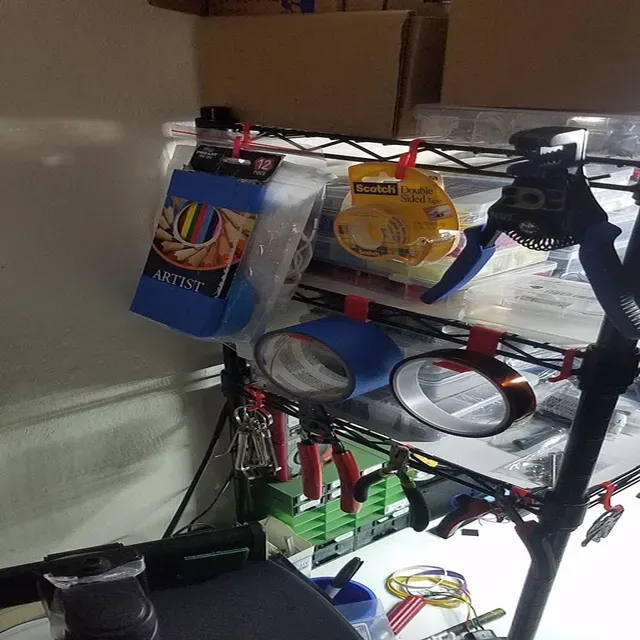

- The two tape holders are for holding roles of tape (like blue painters tape or kapton) and can do some smaller rolls of clear masking tape.

- The shelf_End parts are for using a length of 1/4" (6.35mm) dowel to make a sort of vertical book holder that I use for holding my design notebooks and rulers.

The Amazon shelves arent perfectly parallel across the whole length of the shelf sides sadly, so sometimes the hooks are a little loose and other times overly stretched. I'd suggest using PETG to print because it has that deformation capability that PLA lacks.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

.2

Infill: 10% Gyroid

Filament: AmazonBasics PETG Black

Notes:

Print them on their side! Even the tape holders.
