SV01 Pro Fan Duct with CFD (Stock V3)

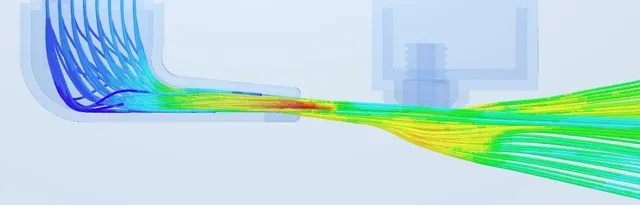

I wanted to make a new fan duct for the SV01 Pro, but hadn't seen any CFD of the stock duct. If anyone is wanting to see what it looks like and/or use that info to make a new duct, here you go (see images above).

Overall it's surprisingly good. The main issues I see are:

- Airflow comes in high (cools nozzle more than filament) - There's a pocket on the backside of the nozzle with poor cooling (poor performance when printing on backside of a wall away from the fan) - Air stream is wider than necessary Hope this helps someone!

For my custom CFD designed duct, see https://www.printables.com/model/324965-sv01-pro-os2-fan-duct-with-cfd

Note: Duct model is available by contacting Sovol. It is just posted along with the CFD for convenience, and I do not claim ownership of it.
