Leadscrew Protector

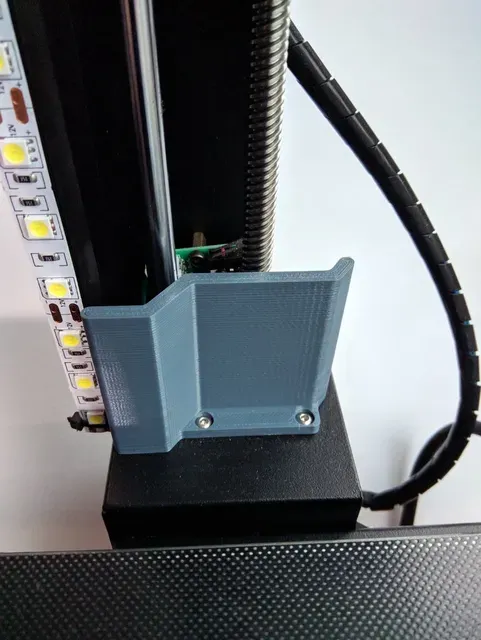

This quick and easy to print part can be mounted on the right side z-axis stepper motor to protect the leadscrew. The fan that cools the filament once is its layed down, can blow small pieces of filament to the right side leadscrew and end-stop, which might make them malfunction over time. Mirror this part in your slicer to make fit it the other stepper motor.

I found that the bolts that are used to secure the stepper motor are just a bit too short (M3 x 5mm), thus I used some M3 x 8mm to get this guard to fit.

Support

If you'd like to support me for the 3D models I distribute for free, you can use my AliExpress affiliate link: https://s.click.aliexpress.com/e/_oFT8Gq6

Whenever you buy something through this link, I get a small kickback without costs for you ;)

Thanks for your support!

Print Settings

Printer Brand: Anycubic

Printer: All-metal Mega

Rafts: No

Supports: No

Resolution: 0.2mm

Infill: 10%

Filament: ColorFabb PLA/PHA Blue Gray
