U-Lock holder for scooter

U-lock holder for any scooter with 28mm bar.

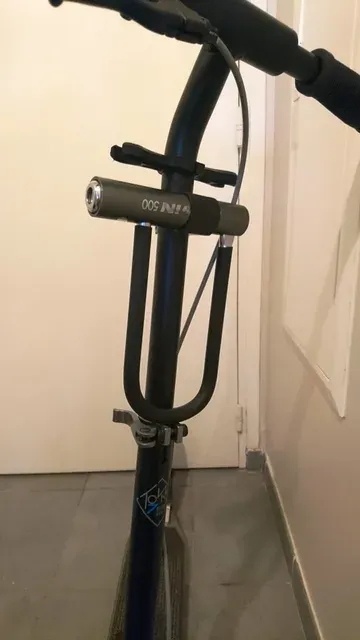

Open the U-lock, slide it in & lock it.

U-lock diameter is 28mm.

Scooter is from Decathlon - model Oxelo Town 7XL ( https://www.decathlon.fr/p/trottinette-adulte-town-7-xl-vert-pale/\_/R-p-12329?mc=8377410&c=NOIR )

U-lock is from Decathlon as well (Btwin 500 https://www.decathlon.fr/p/antivol-velo-u-500-gris/\_/R-p-119937?mc=8342034 )

3D design made with Solidworks 2016. SW file and STEP are included so you can adapt to your u-lock & scooter.

Enjoy.

Print instructions

Category: Sport & Outdoors Summary

U-lock holder for any scooter with 28mm bar.

Open the U-lock, slide it in & lock it.

U-lock diameter is 28mm.

Scooter is from Decathlon - model Oxelo Town 7XL ( https://www.decathlon.fr/p/trottinette-adulte-town-7-xl-vert-pale/\_/R-p-12329?mc=8377410&c=NOIR )

U-lock is from Decathlon as well (Btwin 500 https://www.decathlon.fr/p/antivol-velo-u-500-gris/\_/R-p-119937?mc=8342034 )

3D design made with Solidworks 2016. SW file and STEP are included so you can adapt to your u-lock & scooter.

Enjoy.

Print Settings

Printer Brand: Prusa

Printer: i3 MK2S

Rafts: Doesn't Matter

Supports: Yes

Resolution: 0.2

Infill: 20%

Filament: Prusament PLA Galaxy Black

Notes:

Works well with PLA but can be better with more durable filament like petg

Post-Printing

Assembly

Just clip the holder on the bar, and lock it with 2 x M4 bolts (12mm lenght)
