Babboe Bakfiets Lights - with STEP file

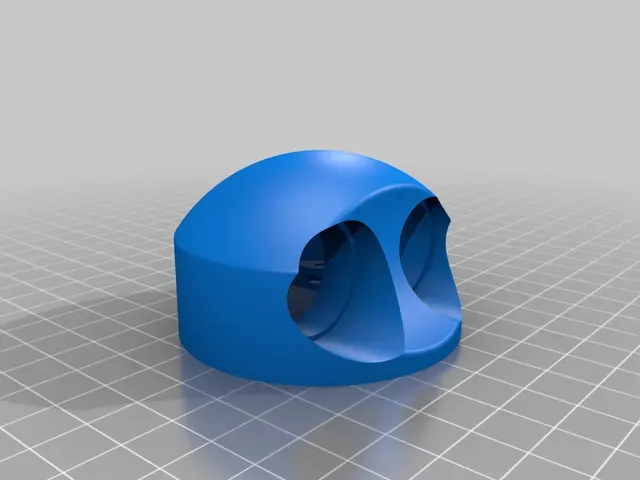

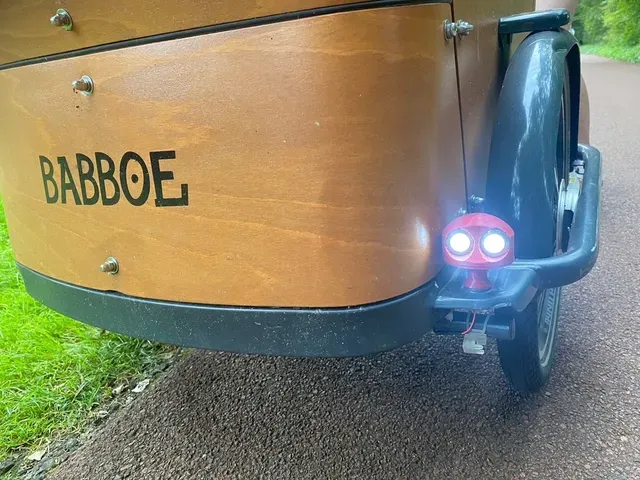

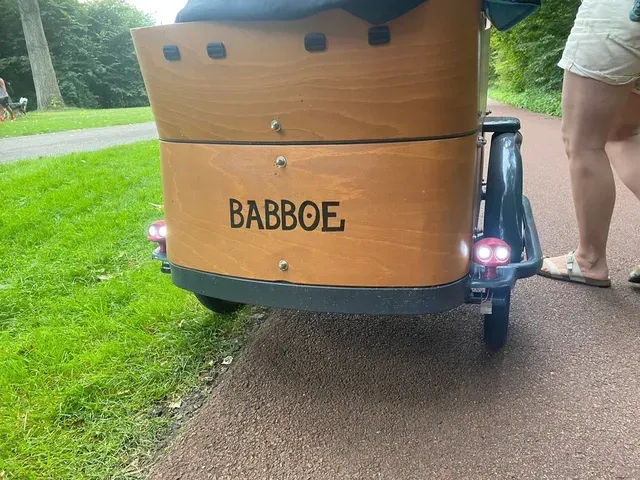

Lights for Babboe Bakfiets cargo bike.

These were made specifically for the e-curve which has a 20 mm mount on the front of the bike where the factory provided lights go.

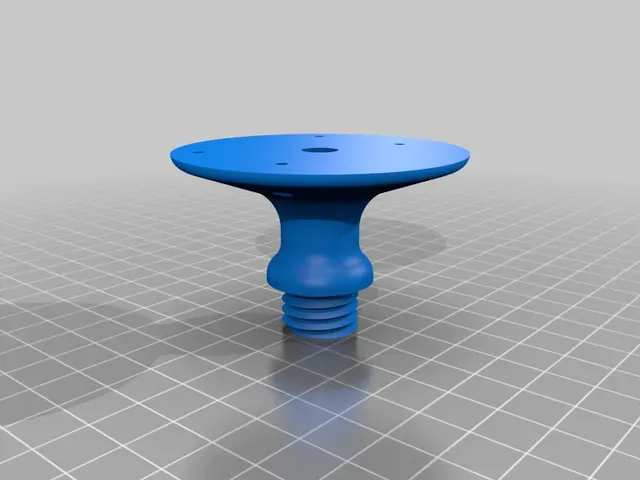

The mounting bolt is hollow to allow cables to be run internally into the units.

I used waterproof 5V LED lamps purchases on Ali, so they can be powered with a USB battery pack.

22mm https://www.aliexpress.com/item/32848939798.html?spm=a2g0s.9042311.0.0.27424c4dY7RH8K

Printing

Print with flat size down, no supports required.

I recommend printing with TPU, as in this position they can cop quite a battering between little feet and other objects.

List of required parts.

4 x 22mm white lights

4 x m2*12 bolts

4 x M2 Hex Nuts

Feedback and Makes

It really makes a difference and feels great when you leave a comment, like, or collect things for the people who post them, so please do that for all people as it builds community. Super important in these Covid Times. Even if you do not post things you are still part of the community (in fact you are the majority of the community), so please like, collect and comment!

Please do this for all stuff you download from everybody!

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

200

Infill: 38

Filament: PolyMaker PETG

Category: Sport & Outdoors
