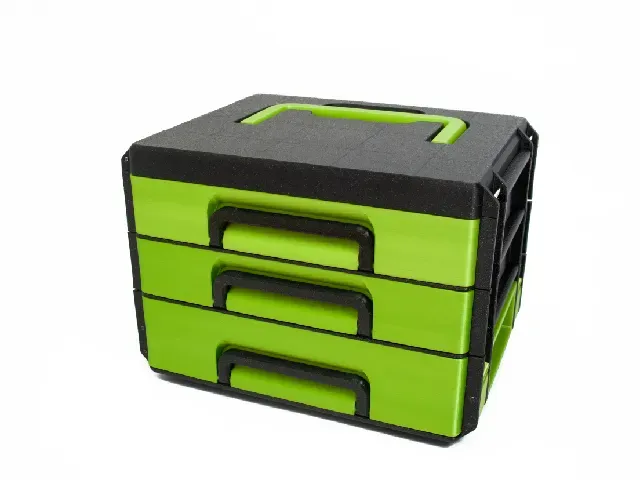

SBox for MK2/3/4 - drawers

The Cantilever box is compatible with SBox for MK2/3 - stackable toolbox system

Assembly

list of non-printed parts

- 4 pcs - metal axis 36(35)mm x (2.8 - 3)mm or M3 screw with internal hex head - 8 pcs - metal axis 39(40)mm x (2.8 - 3)mm or M3 screw with internal hex head - 4 pcs (2 pcs per drawer) - 12 - 18mm M3 screw with internal hex head - 8 pcs - 6 - 12mm M3 screw with internal hex head - 2 pcs - metal axis 24(25)mm x (2.8 - 3)mm or M3 screw with internal hex head (for top with handle) You can use Cylindrical Pins or Stainless Steel Shafts in M3 diameter (lengths 35mm, 40mm, 25mm), as metal axis.

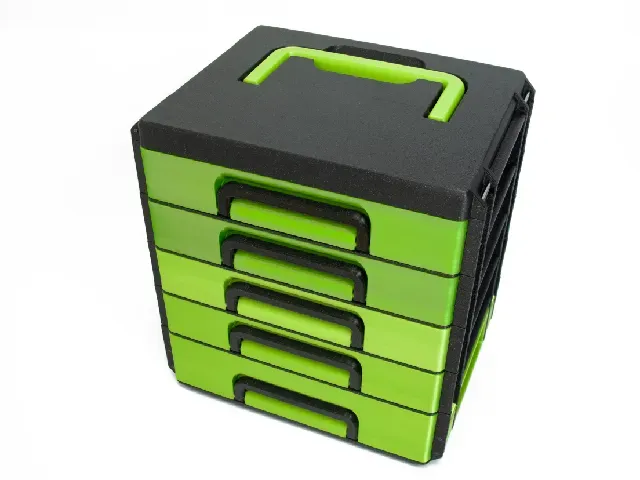

Drawers can be infinitely expanded with a small drawer.

Each drawer can be locked by turning up the drawer handle.
