Ender 3 Z-Bracket for Creality Sprite Pro Hotend Upgrade

If you had the stock standard Ender 3, upgrading to the Creality Sprite Pro with the Z carriage the right end of the Z axis bracket will hit and prevent the nozzle from reaching to the right end of the bed. Which will limit your build volume.

Remixed for the dimensions measured on the original metal bracket. Screw holes were tight, and the eccentric nut was not able to fit (7.3mm diameter) on the original.

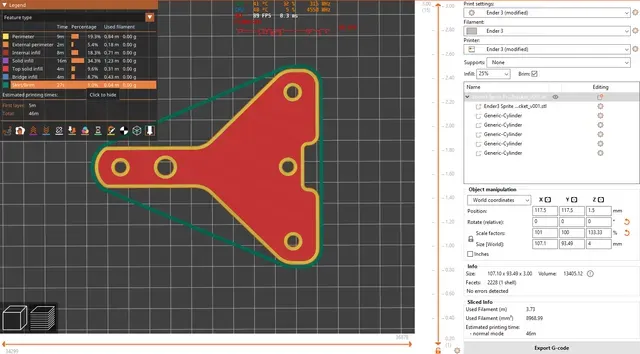

Print Settings

Ender 3 [Standard] with Sprite Pro Extruder

0.2 layer height

5 Vertical Shell Layers with 3 Top&Bottom Layers for Strength

25% Cubic Infill (adjust if necessary)

Print Time ~46min

Feedback would be great.
