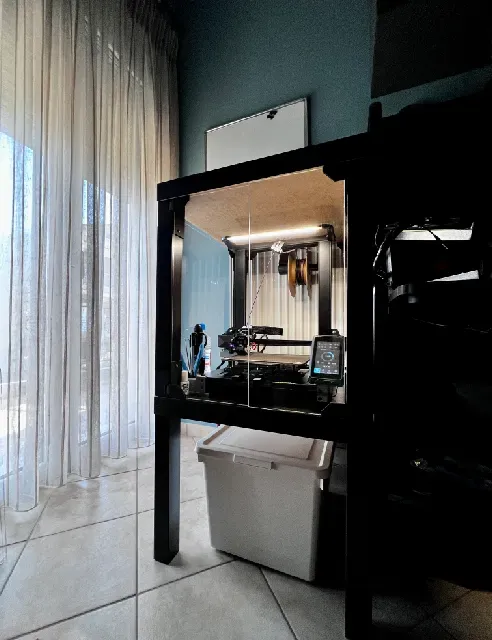

Enclosure Ikea Lack for Creality Ender 3 S1/S1 Pro

Basic parts

- 2× IKEA Lack table - 3× Plexiglass 445×542 mm, 3 mm thickness. - 2× Plexiglass 220×535 mm, 3 mm thickness. Fasteners

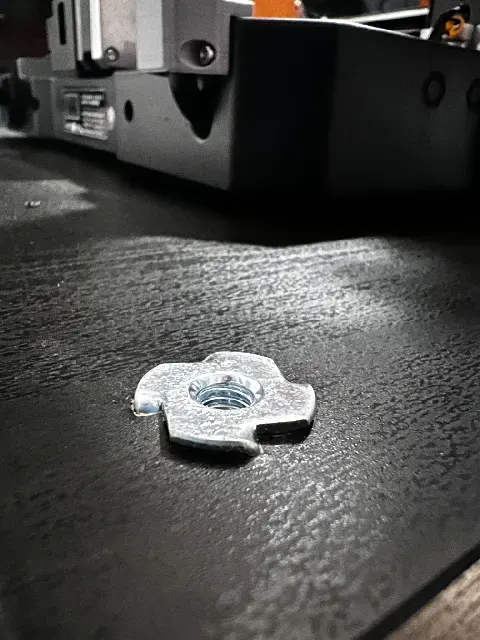

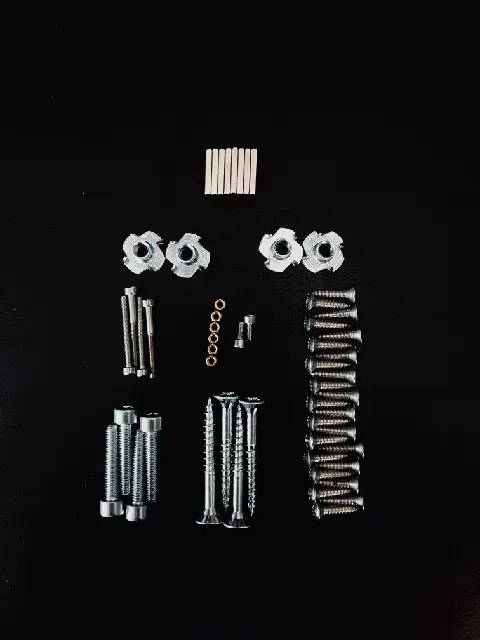

- 24× pan head screw, 5×20 mm for table legs, holder plexiglass and spool holder. - 4× screw 6×50 mm, for top corners. - 4× screw M6×30 mm, for bottom corners. - 3× screw M3×10 mm, for door knops and filement socket. - 4× screw M3×18 mm, for door arms. - 7x threaded inserts M3, for the hinges, door knobs and filement socket. - 4x Four Pronged T Nuts Captive Threaded Inserts M6 for Wood Furniture, for bottom table. - 4× neodymium magnet, 20×6×3 mm, for corners. - 4× neodymium magnet, 20×6×2 mm, for door arms. Tools

- Screwdriver - Allen key - 2,5mm - Allen key - 6mm - Hammer - Superglue - Drill + wood drill bits ø 2 mm, 5 mm, 6mm, 8 mm and 10 mm - Tape measure - Snap-off knife - Ruler - Pencil or marker Replaced the spool holder with this model (for CleverB)to sit inside:

https://www.printables.com/model/369446-table-edge-spool-holder-ikea-lack-filament-spool-h

And for filement sensor bracket I used this model(for LW design):

https://www.printables.com/model/428965-ender-3-s1pro-filament-sensor-bracket
